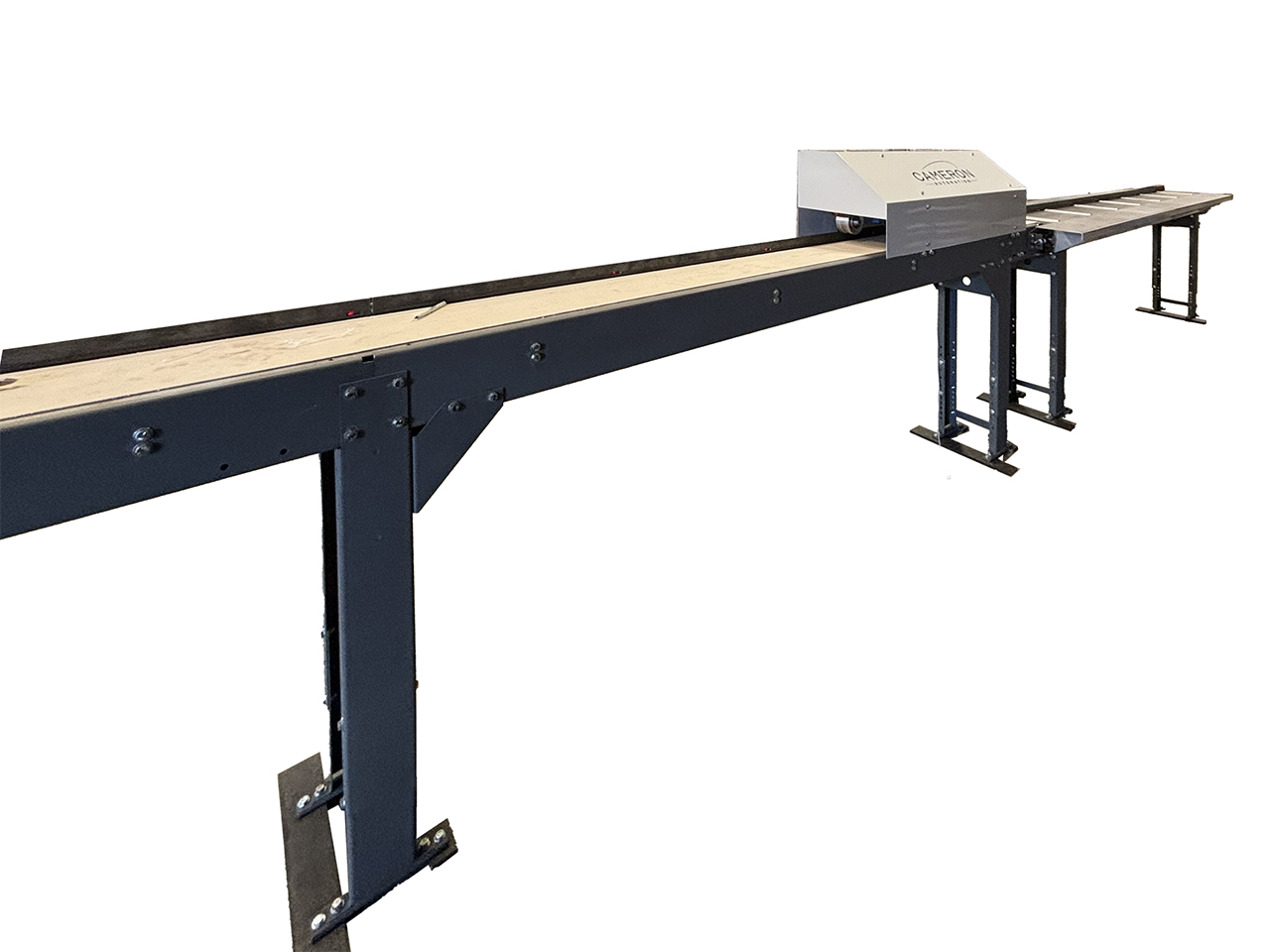

3001 Crosscut System

System Components & Advantages


Components:

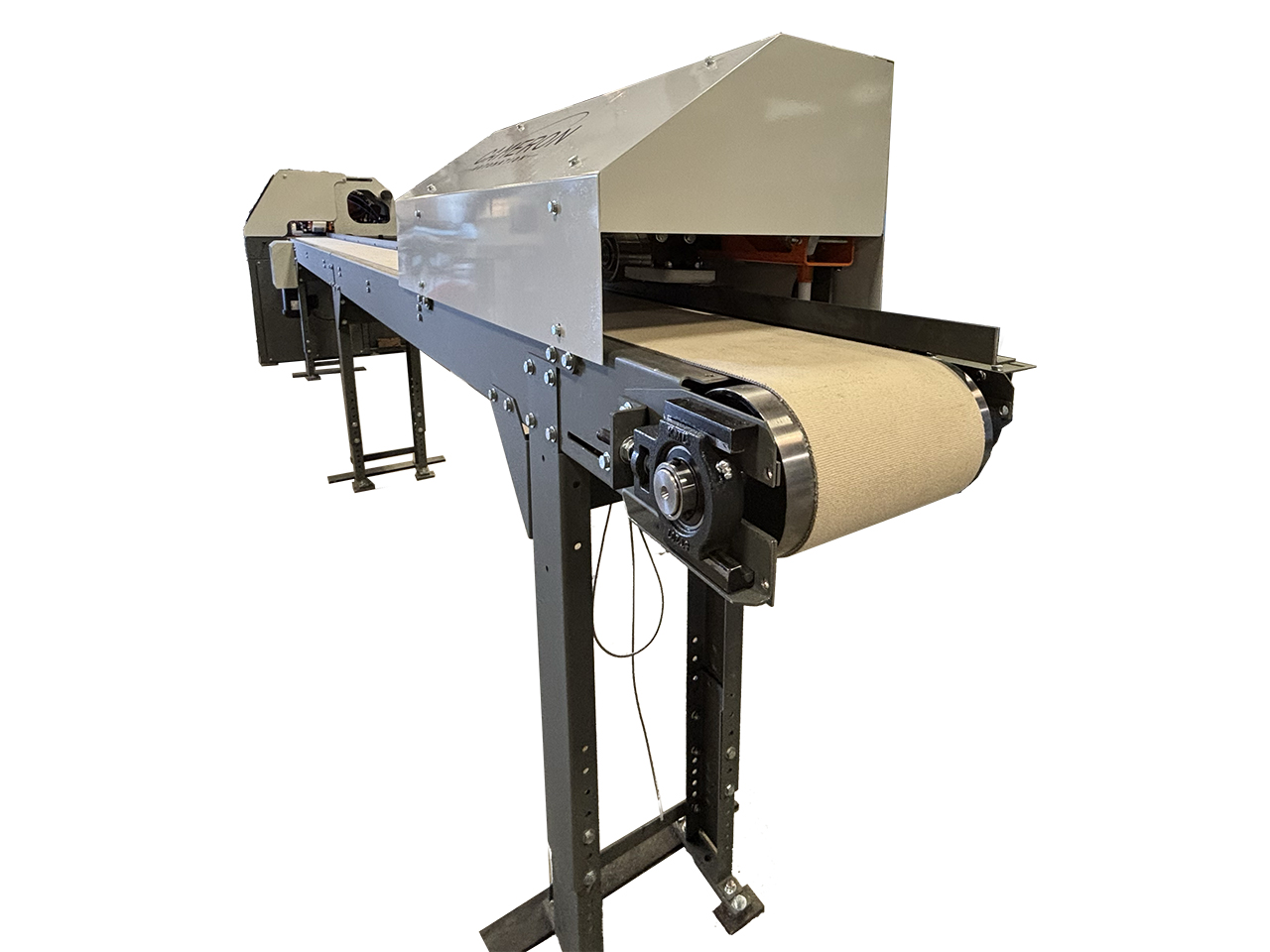

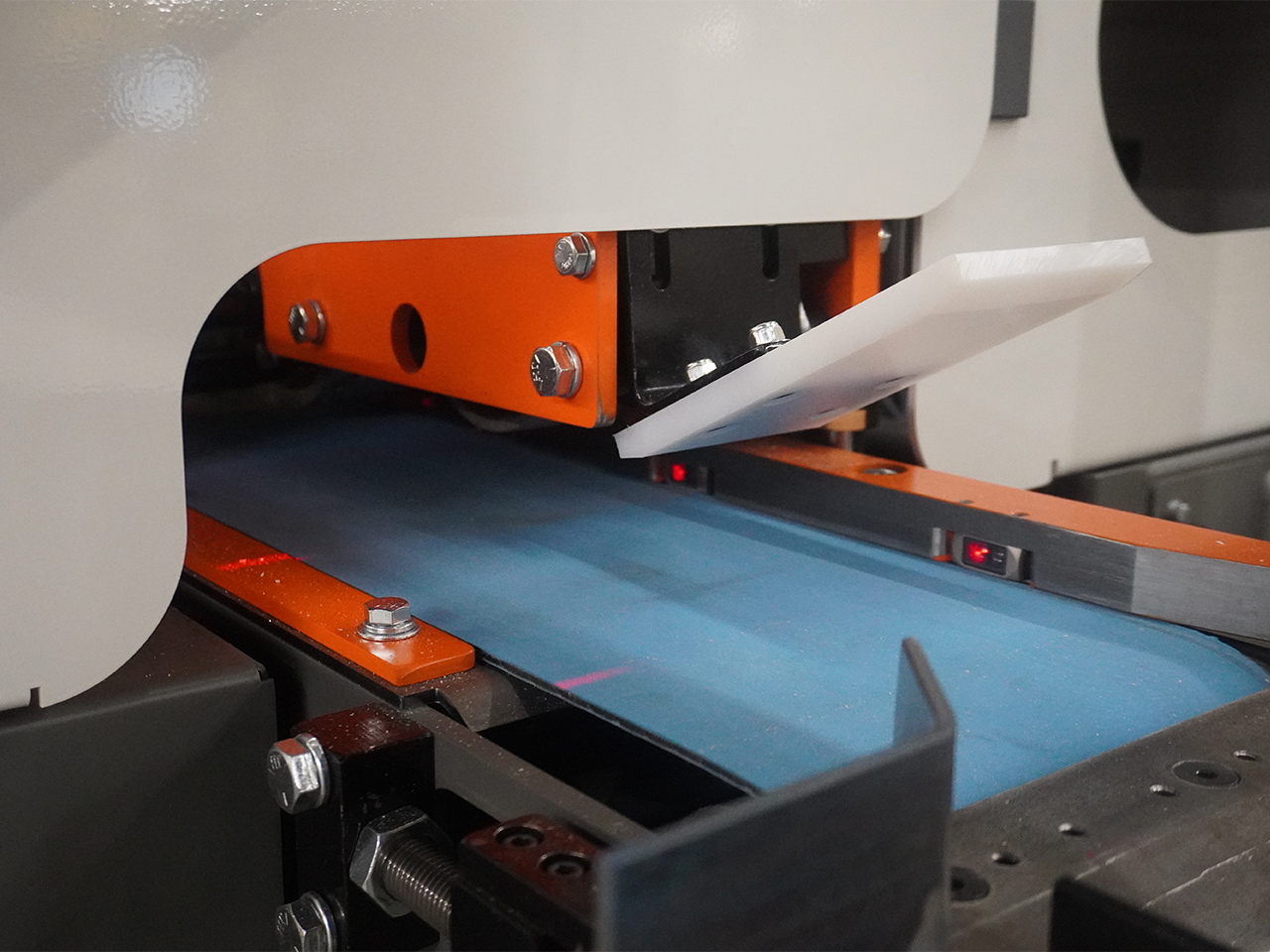

  1. Smart Belt Includes:

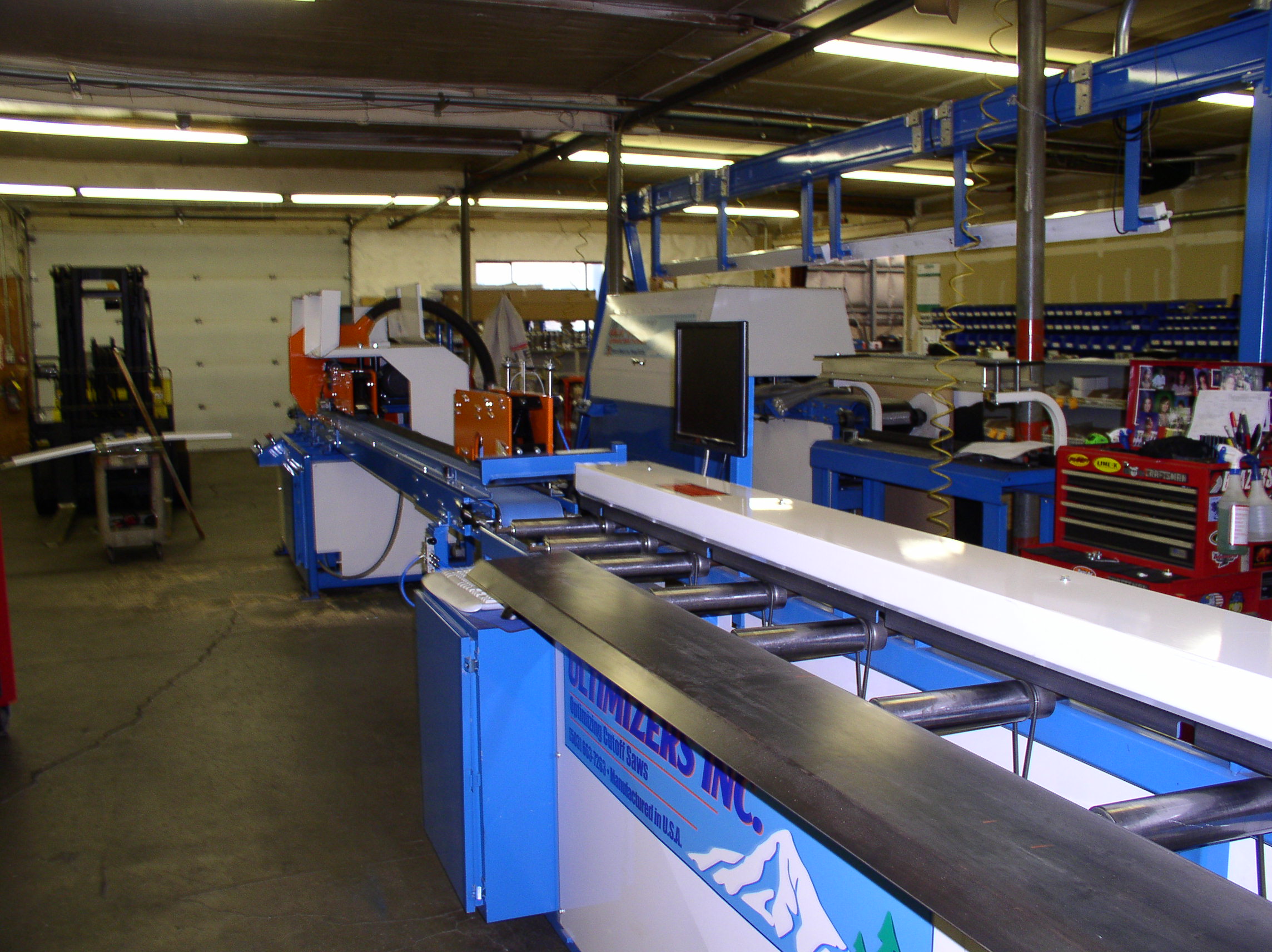

    Crayon Marking Station, Crayon Sensor Photocells for measuring board length

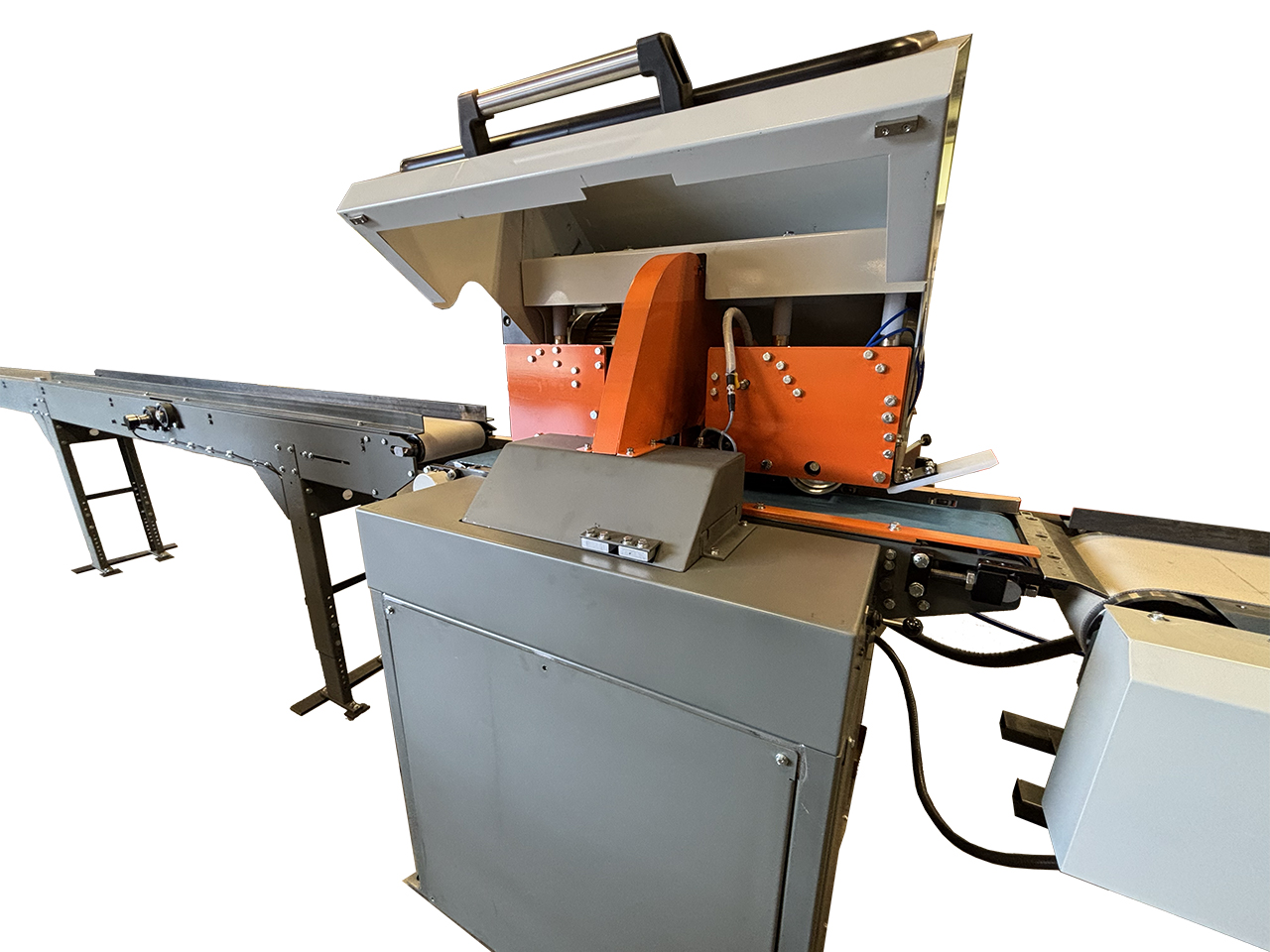

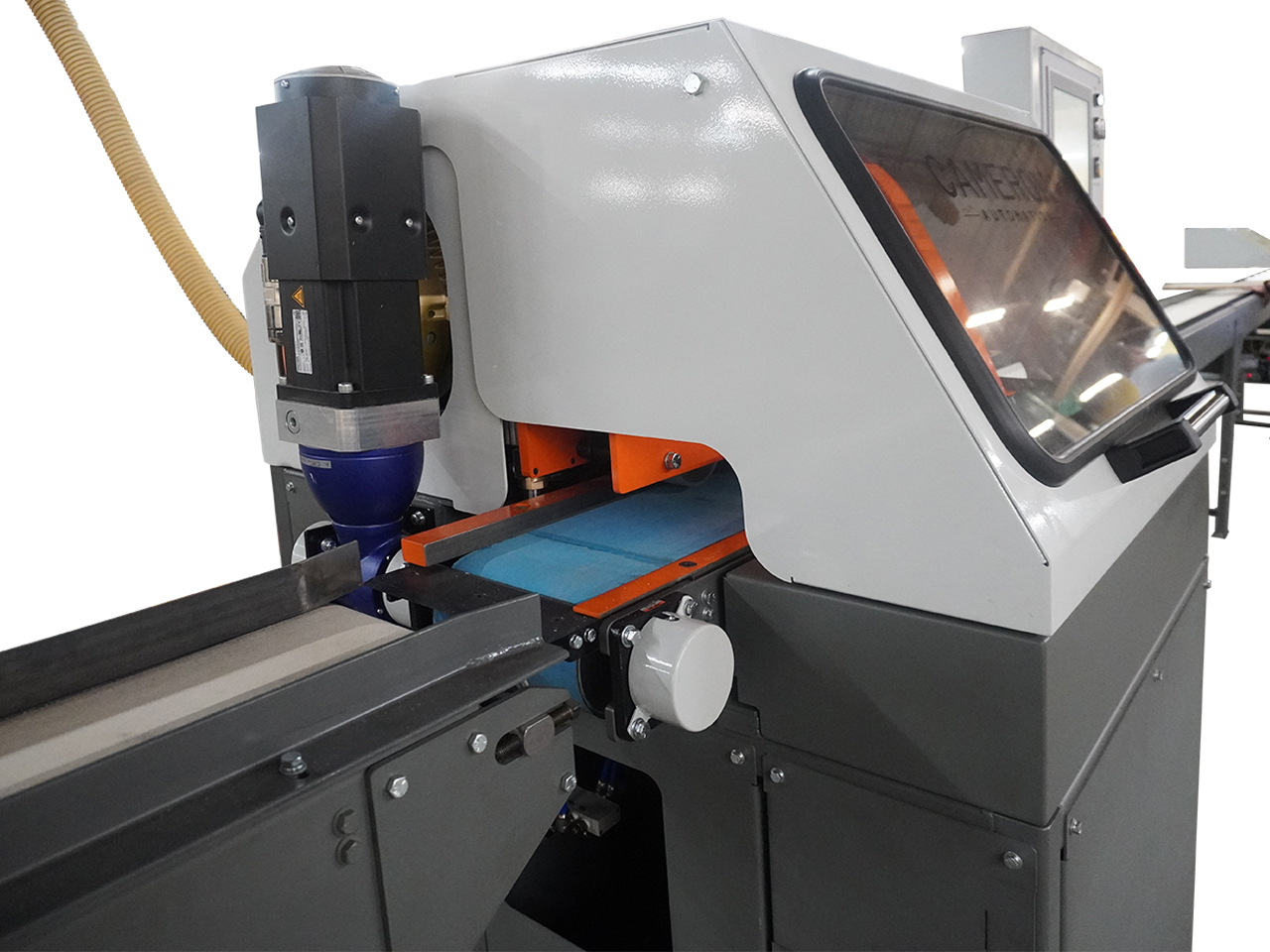

  2. Model 3001 Saw Includes:

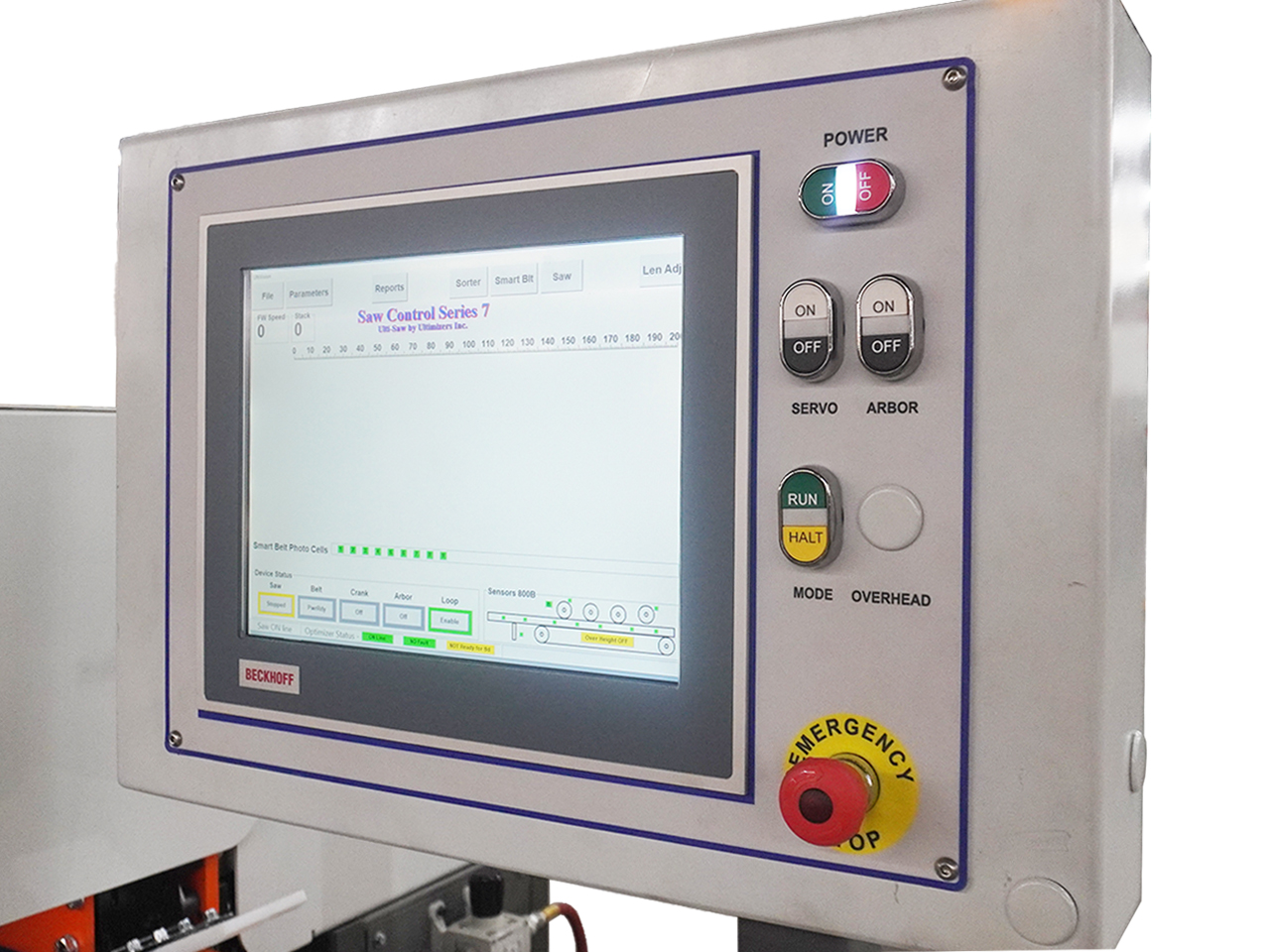

    Bottom Belt for feeding before and after the blade top cut, Saw Servo Feed Motor 20 HP, Servo Arbor Motor 10 HP, Air System for saw accuation, complete controls via touch screen

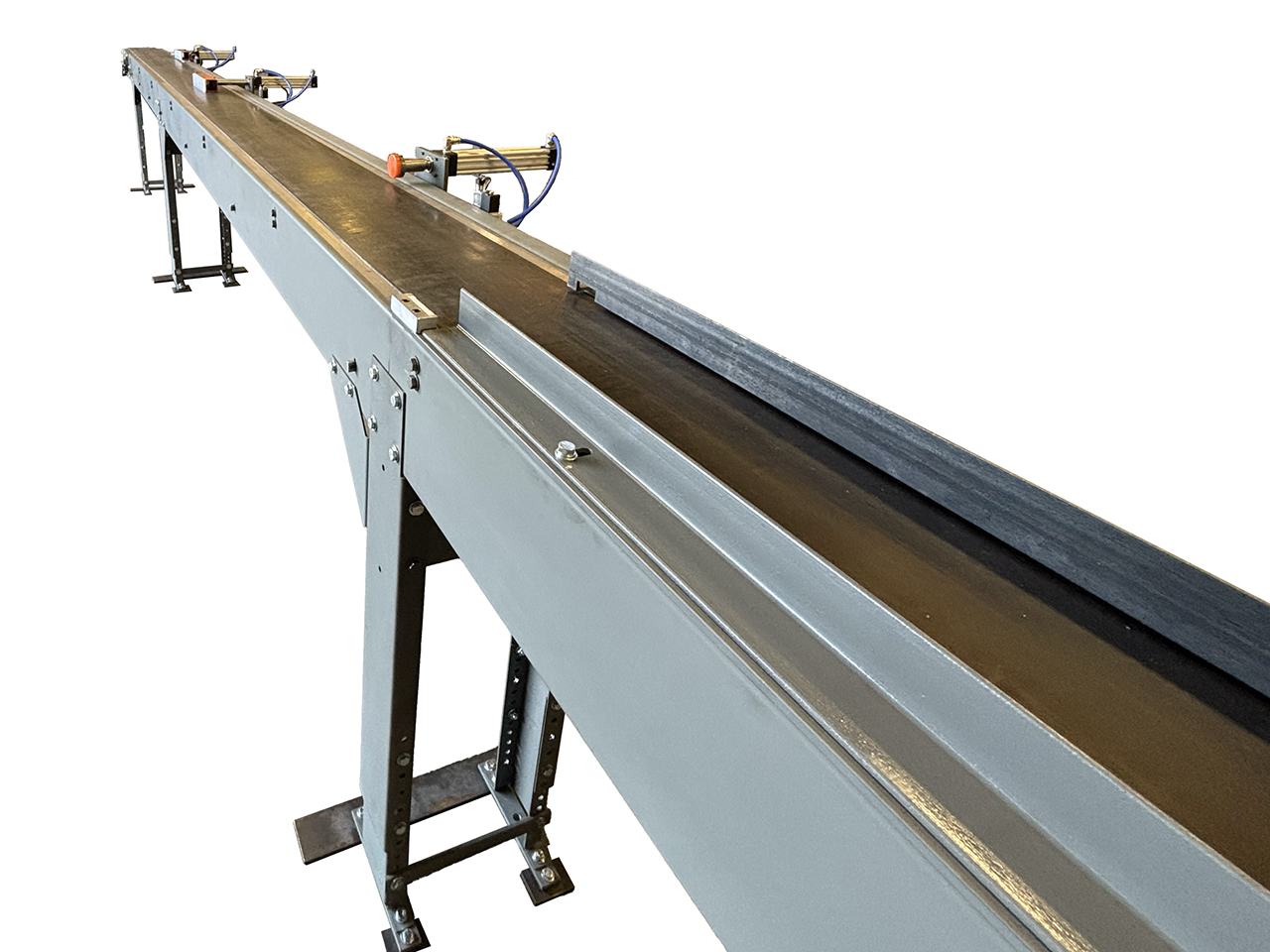

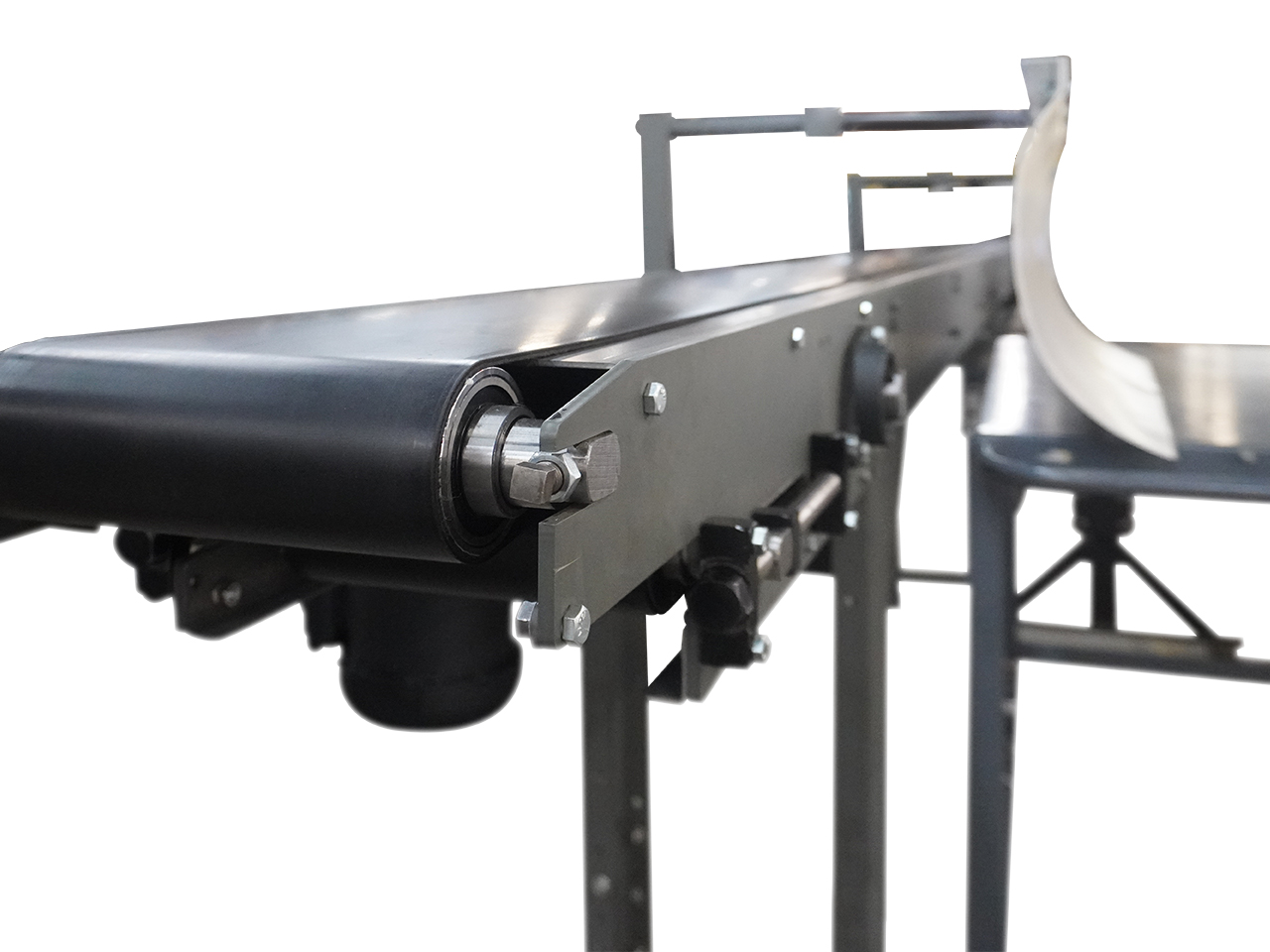

  3. Linear Sorting Conveyor Includes:
    9” wide by 30’ long, 1 Waste blow off, 3 component puch offs, conveyor controls via main touch screen
  4. Optional Equipment:
    additional sorting
Request a quote Call me

Advantages

3 point grip system
Wide flat belts provide unmatched holding power
Top down cut for better cut quality
Adjustable cutting speed
Arbor drive is toothed gear belt, 10HP Servo Motor
Separate overhead encoder positioning system

Capabilities

Maximum 16’ lumber
Maximum 7.75” wide lumber
Maximum 2” thick lumber
Maximum 20,000 lineal feet per 8 hour shift

Software:

Widows based Beckhoff processor
Color touch screen
In feed and out feed systems centrally controlled
Automatic machine thickness control
Full diagnostics

One or two operators crayon mark defects, parts transfer directly onto the smart belt equipped with a crayon camera. Parts are conveyed directly to the saw which removes defects as marked. Scrap is separated and component parts are conveyed and delivered to separate containers.
