#411A- Skew Rip System

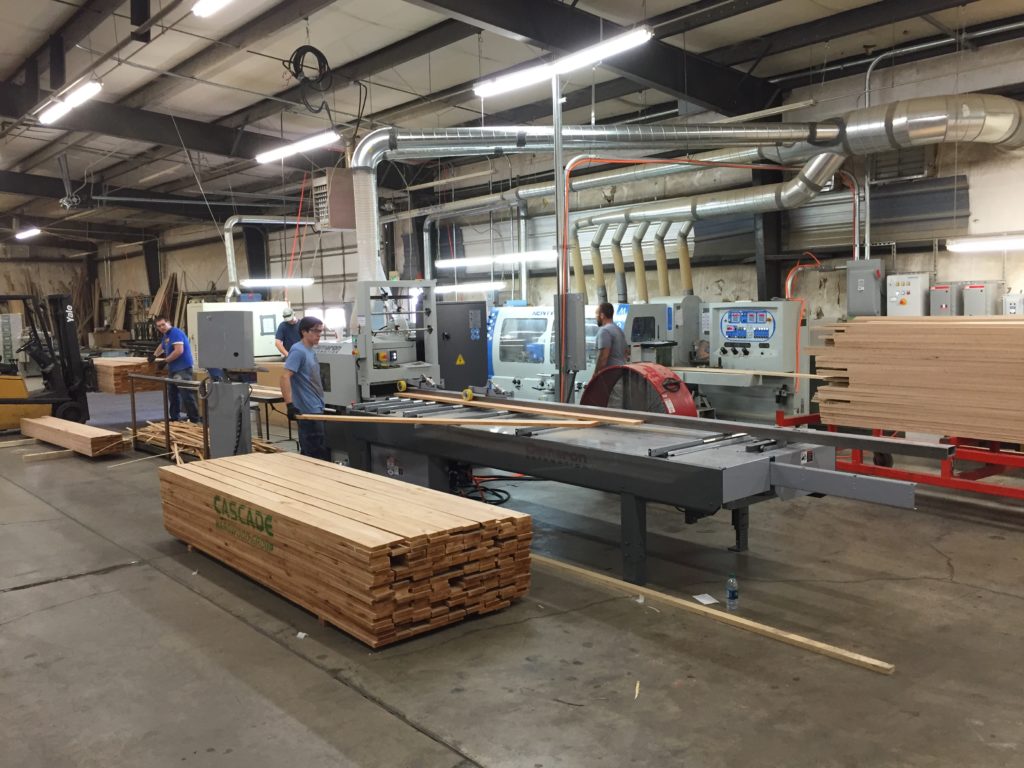

The Cameron Skew System will cut up to (5) Boards per minute, maximizing the yield of raw materials, and the efficiency of the work cell

The Skew is a highly efficient, inexpensive, full featured, rip optimization system designed to fit any 12″ wide gang rip saw and specifically developed for the custom shop. The unique feature of The Skew is the “skewing fence”.  It has the ability to twist and feed the board into the saw to get the best yield.  The Skew also has all the features of the high-end optimization systems like: lumber tallying, pack reporting, bundle reporting, yield calculations, simulations, and much more. The greatest benefit of The Skew is the Return on Investment, which can be well under 1 year.

Typical Skew Rip System Customers:

  • Molding & Millwork Shops
  • Cabinet Shops
  • Flooring Manufacturer
  • Wholesale Lumber Distributor
  • Door Manufacturer
  • Stair & Railing Manufacturer

Many Skew Systems include a Cameron (2) or (3) Moving Blade Rip Saw, but with our Cameron Opti-Rip Software, we are able to communicate with Moving Blade Saws from other Manufacturers: Mereen-Johnson, Raiman, Cantek, and Kentwood to name a few.

Request a quote Call me

The Ultimate #411A- Skew Rip System for Woodworkers

The Cameron Skew System will cut up to (5) Boards per minute, maximizing the yield of raw materials, and the efficiency of the work cell

  • Molding & Millwork Shops
  • Cabinet Shops
  • Flooring Manufacturer
#411A- Skew Rip System
#411A- Skew Rip System

Engineered for Precision & Speed

The Cameron Skew System will cut up to (5) Boards per minute, maximizing the yield of raw materials, and the efficiency of the work cell

  • Molding & Millwork Shops
  • Cabinet Shops
  • Flooring Manufacturer

Boost Your Throughput

Compact and powerful, the #411A- Skew Rip System maximizes workspace efficiency.

#411A- Skew Rip System
Molding & Millwork Shops
Molding & Millwork Shops

Leverage molding & millwork shops to streamline your workflow.

Cabinet Shops
Cabinet Shops

Bring cabinet shops to your bench for flawless quality.

Flooring Manufacturer
Flooring Manufacturer

Harness flooring manufacturer for faster cycle times.

Wholesale Lumber Distributor
Wholesale Lumber Distributor

Take advantage of wholesale lumber distributor for superior output.

Cameron Automation has pushed the envelope once again to simplify sophisticated equipment and bring it to the small shop to increase yield and save labor.

How it Works:

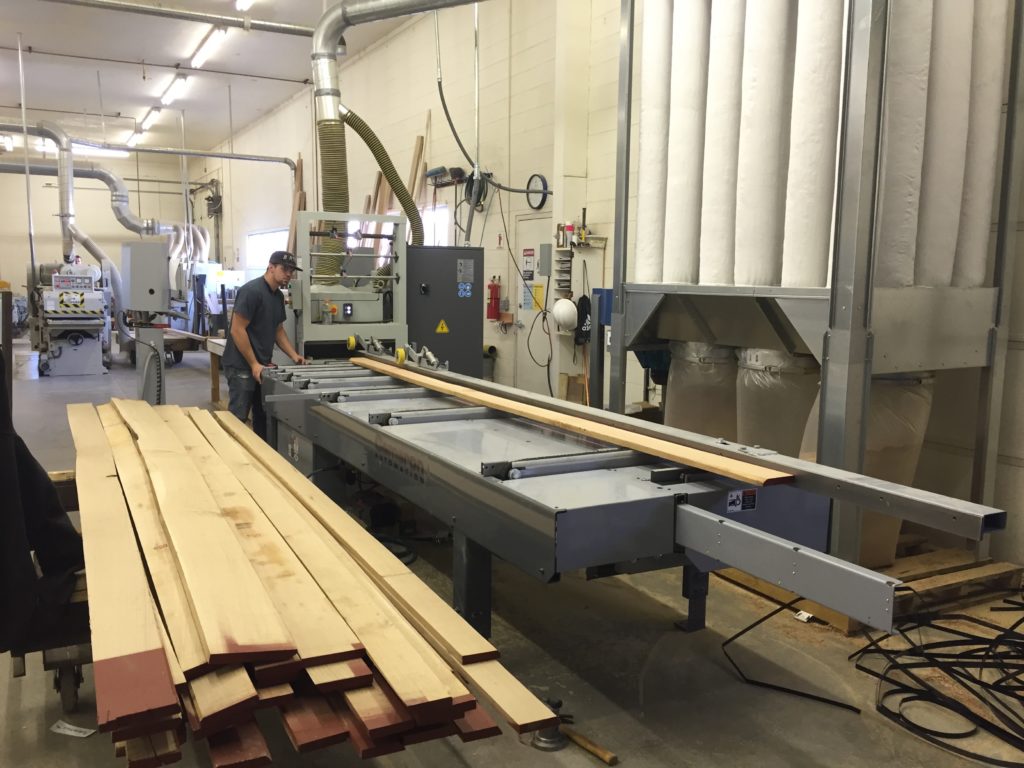

  1. A Board is placed on the Infeed Section
  2. The system measures the width, length, and shape of the board using sensors placed at 1’ increments
  3. With our unique “Skewing Fence”, the machine adjusts the angle and position of each board to achieve the highest possible yield
  4. The laser lights move with the saw blades to project the rip solution on the board
  5. The operator has several options available to improve the final rip solution. Once that is determined, the board is processed into the saw and the next board is measured
  6. The Cameron Software Actively Tallies all Production, constantly updating a number of reports that can be saved.

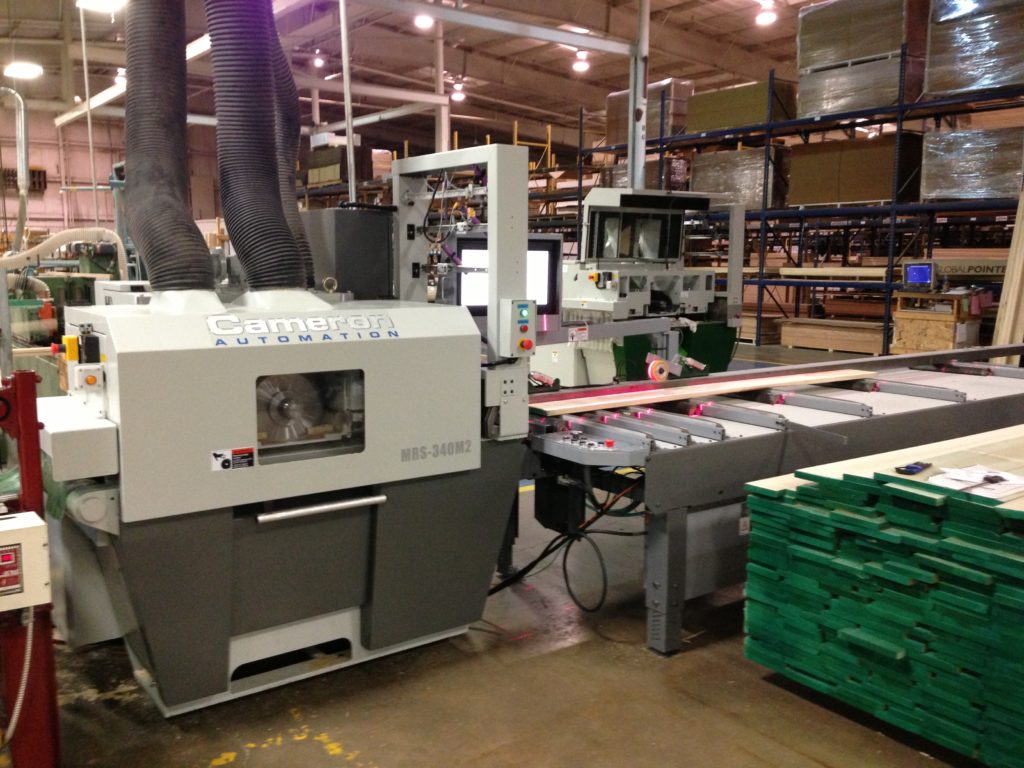

This System Features:

  • Full Optimizing Infeed
  • 12″ Wide Arbor, (2) Moving and Multiple Fixed Blade Rip Saw
  • Auto-Skew to Increase Board Yield
  • Fully Integrated Software Package
  • Automatic Movable Blade Positioning by the Cameron Software

The Skew is our answer for Rip Optimization in a custom shop. It will quickly transform a labor intensive hand fed rip work cell, into an efficient and effective. Cameron has further refined their rip software to make it easy and affordable for the small shop.

Production:

  • (1) Operator
    • (2 – 3) 10 Ft. Long Boards per Minute
  • (2) Operators
    • (4 – 5) 10 Ft. Long Boards per Minute
  • Current Installation Production Rates
    • Minimum = 900 – 1000 bd. ft.
    • Maximum = 6,000 – 7,000 Bd. Ft.

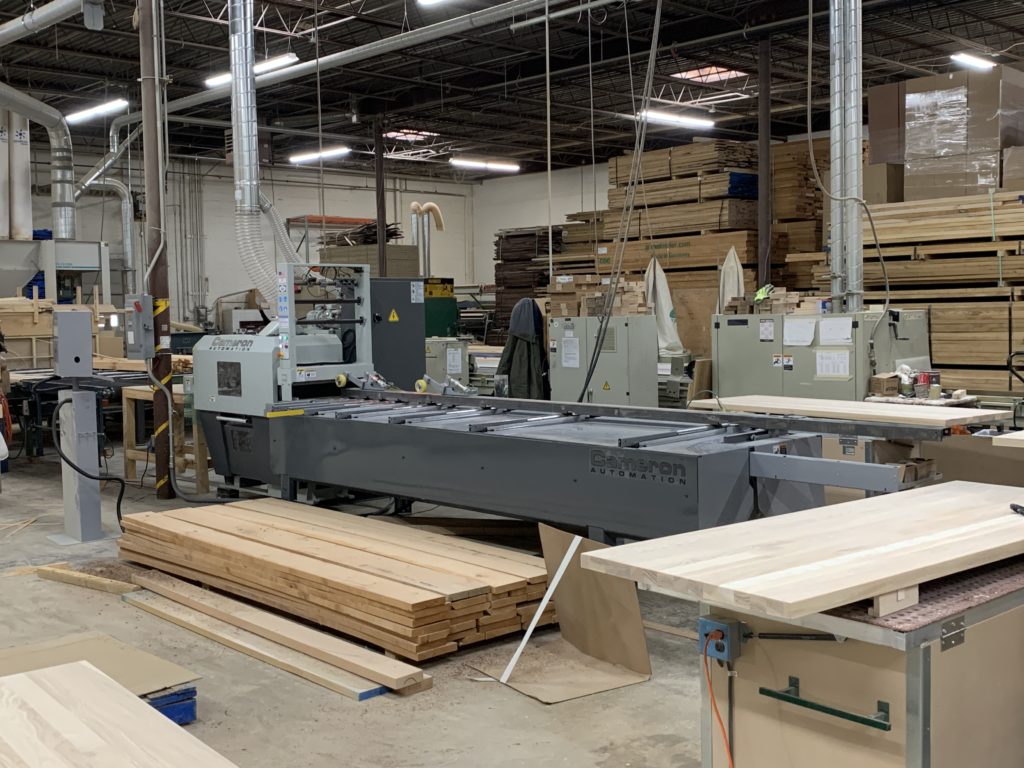

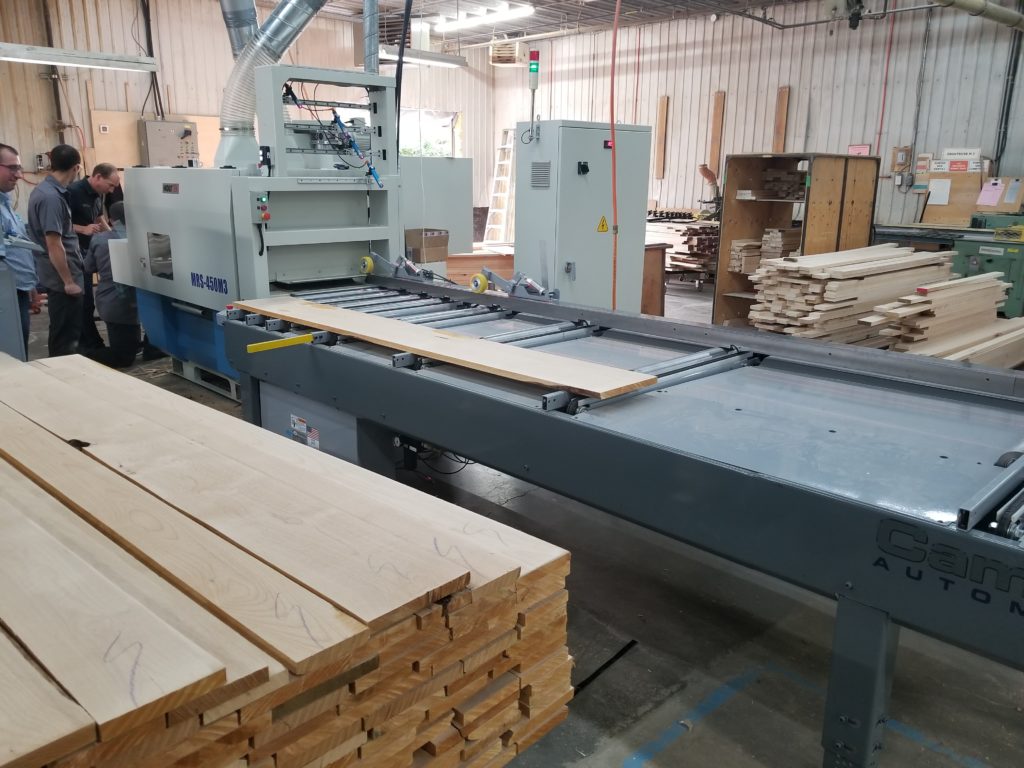

Cameron Skew Infeed

  • Lumber Capacities
    • Standard Machine: 5 Ft. Minimum / 16 Ft. Maximum
    • Short Stock Machine: 28″ Minimum / 16 Ft. Maximum
  • Thickness Tolerances
    • 12″ Saw Blades: 2.5″
    • 14″ Saw Blades: 3.75″
  • Maximum Width (Incoming Material)
    • 15″ Wide

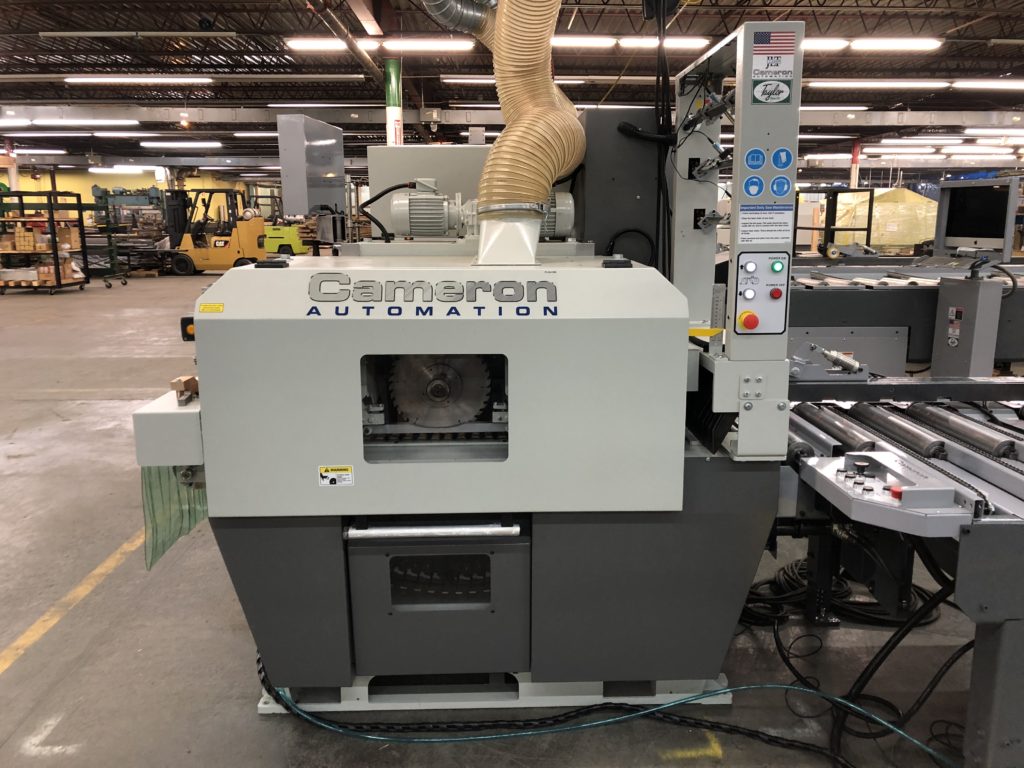

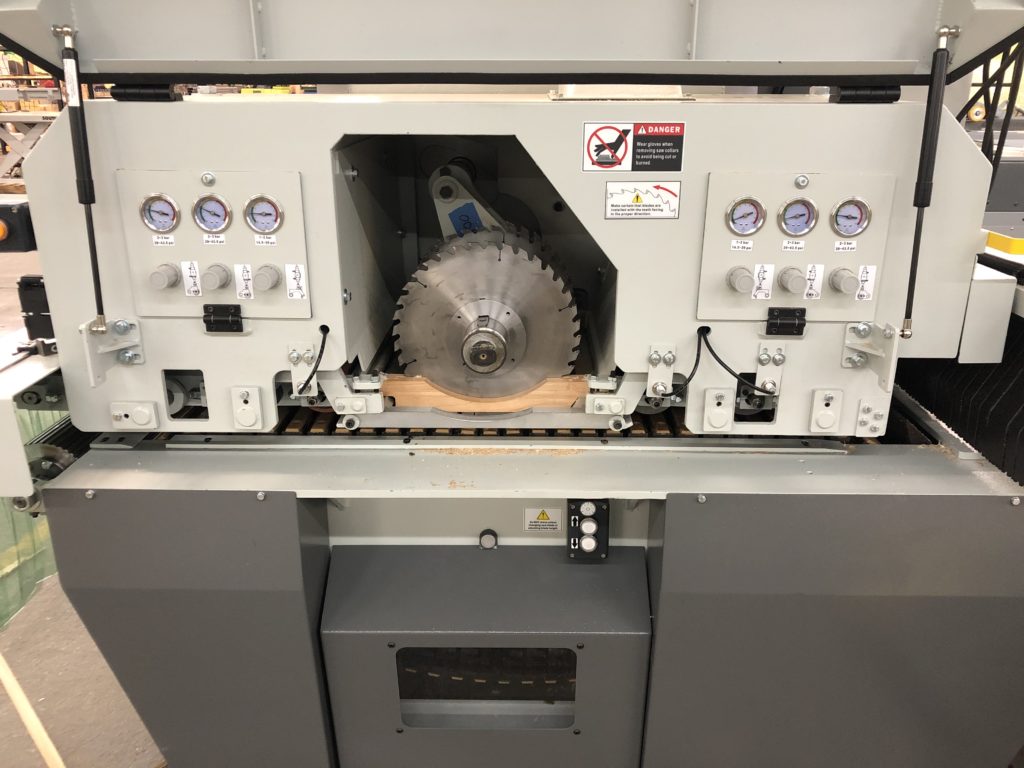

Cameron #413A- Rip Saw

  • (2) Servo Controlled Movable Blades
  • Multiple Fixed Blades
  • Pocket Sizes between Saw Blades
    • Between (2) Fixed Blades: 1″
    • Between Fixed Blade and 1st Movable Blade: 1″
    • Between (2) Movable Blades: 1.875″
  • Feed Speed
    • Minimum: 26 ft/min (8 m/min)
    • Maximum: 130 ft/min (40 m/min)
  • Electric Motors:
    • Arbor Motor: 50 Hp
    • Feed Motor: 3 Hp

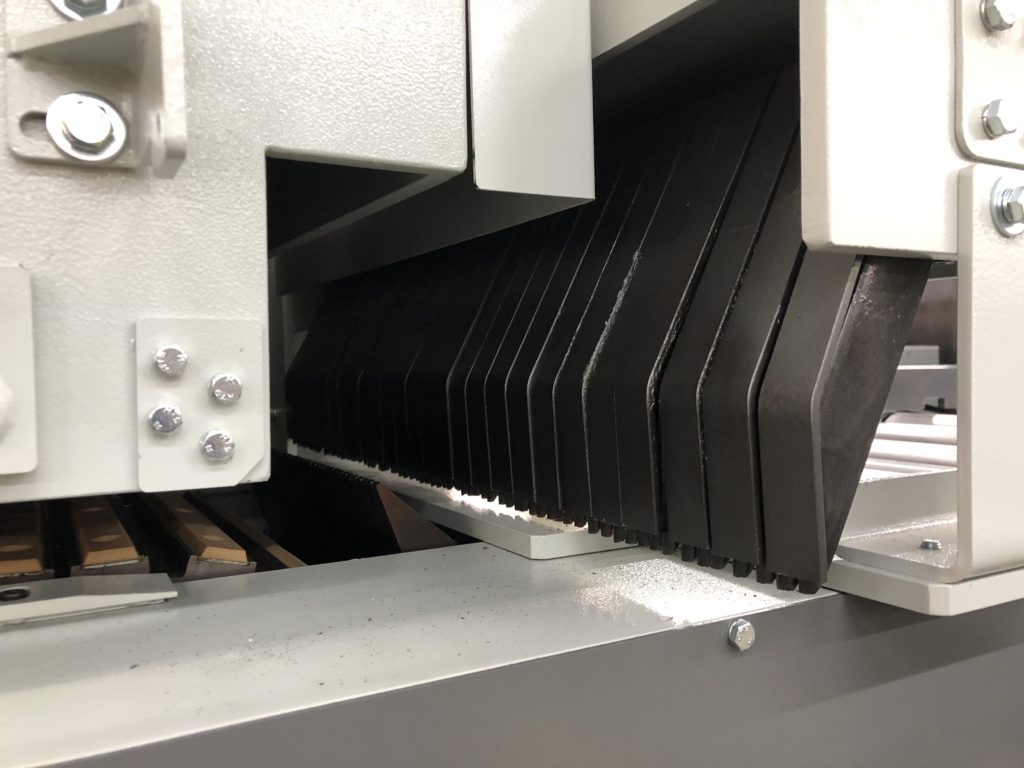

  • Three (3) sets of anti-kickback fingers

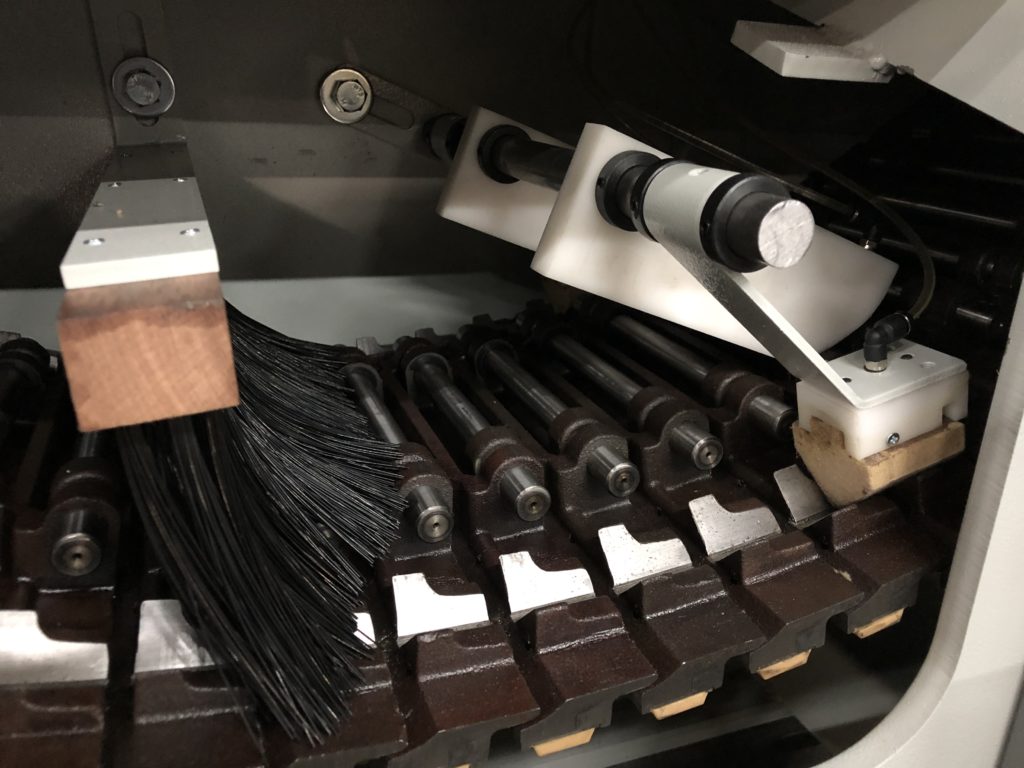

  • (4) individual Pneumatic pressure rolls
  • Steel dip chain construction with urethane inserts
  • Powered out-feed roller
  • Digital controlled lubricator for feed chain.
  • Amp meter for monitoring arbor motor running amperage

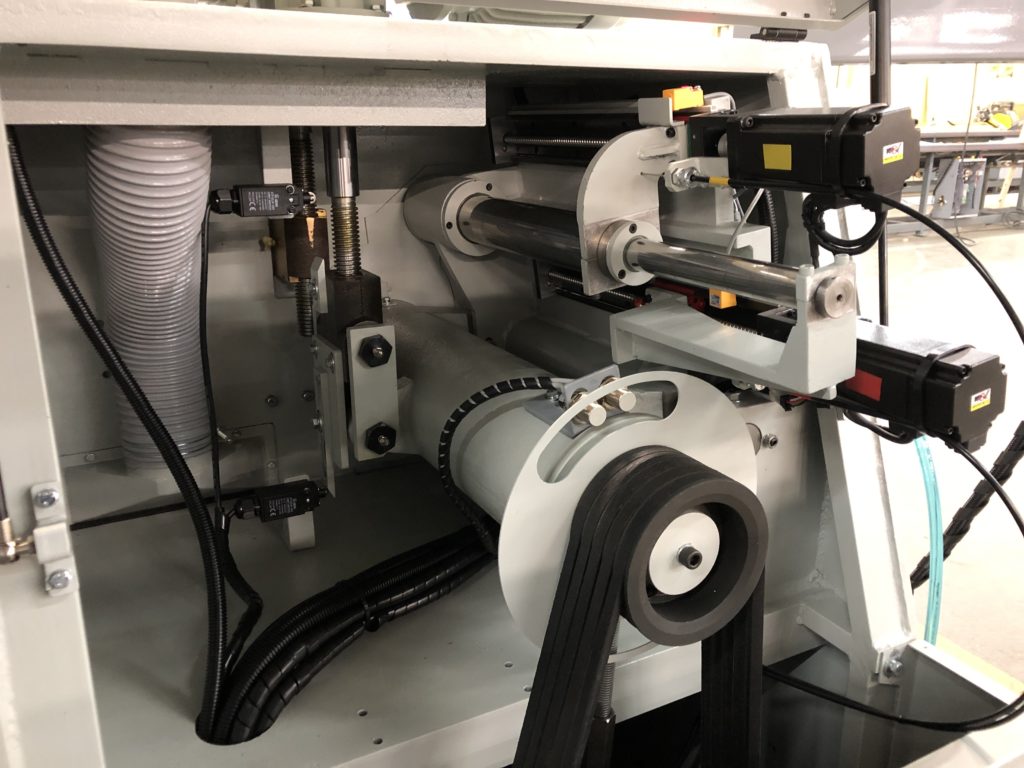

  • Easily accessed v-belt driving saw arbor for reduced vibration and higher tolerances
  • Easy access to spindle and blades for maintenance and tooling changes

Cameron Rip Software:

  • Yield Improvement over Hand feeding
  • Increased Safety for Operator
  • Full Production Tracking that includes:
    • Production Tallies
    • Rough Lumber tracking by length and Yield
  • Arbor Optimization (mainly used with large fixed arbor saws)
  • Bundle reports on packs of lumber
  • Simulation capabilities to simulate jobs before the wood ever hits the infeed
  • Product Value Decisions: software can choose rip widths based on which rips are more profitable for your company.

Benefits of a Cameron Rip System:

  1. Award winning support.
  2. Software for both the Infeed and Gang Saw is written in house in Poughkeepsie, NY
  3. Industry leading features with the Auto-Skew and Over/Under design.
  4. Powerful Software to help improve your business and make you more profitable.
  5. Significant Yield Increases that go directly to the Bottom Line by decreasing Lumber Bills and Improving Productivity
You may also like

Related Machines

  •

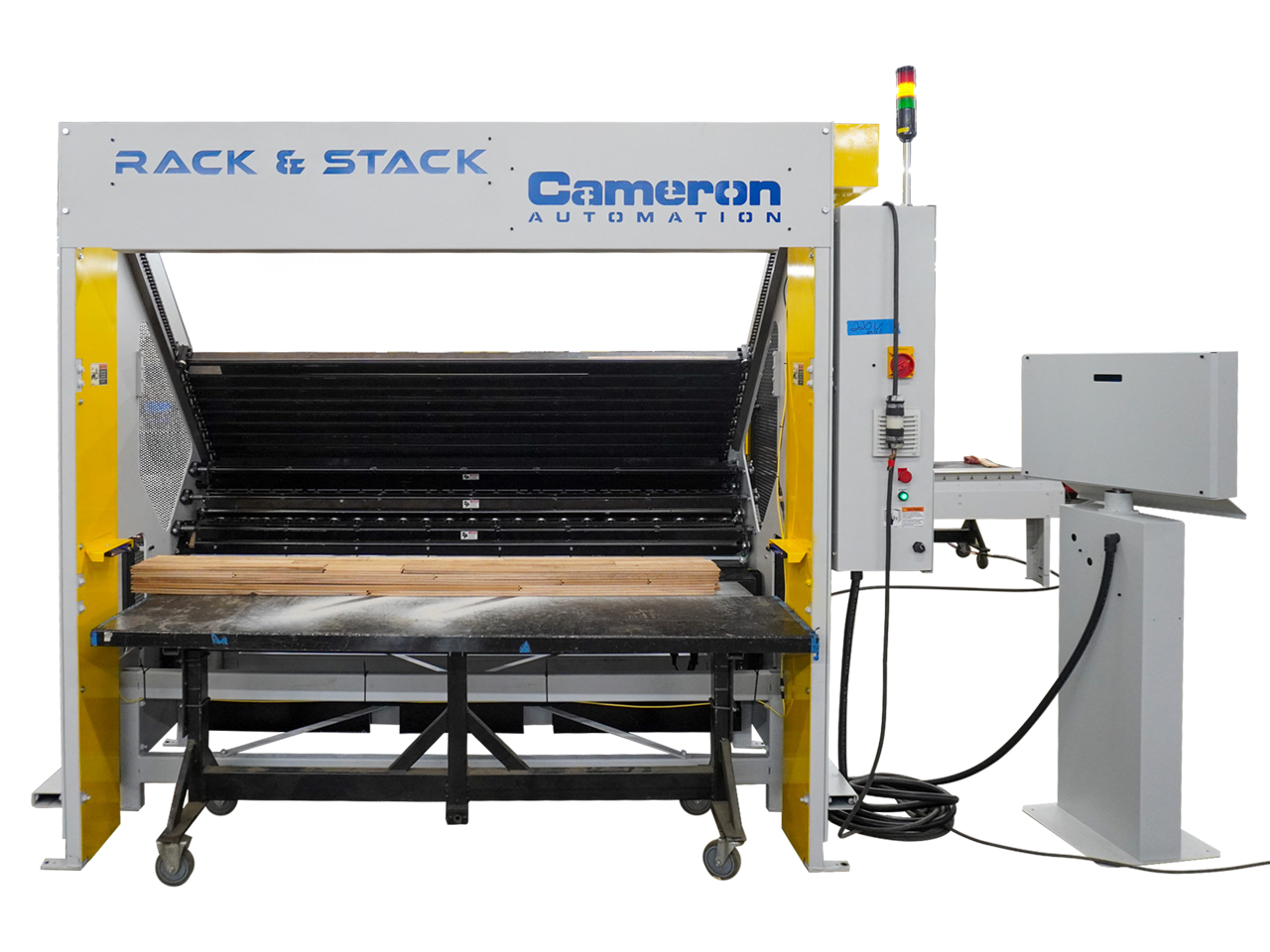

    #516A Rack & Stack
