#513B – Flooring Nester

Stacking and packaging of nested bundles of Hardwood Flooring has always been a manual process. Cameron Automation has revolutionized this process with the Flooring Nester

The Cameron Automation Flooring Nester

Stacking and packaging of nested bundles of Hardwood Flooring has always been a manual process. Cameron Automation has revolutionized this process with the Flooring Nester.

What Does the Machine Do?

The Cameron Flooring Nester creates accurate nested flooring bundles. Graders feed random lengths of material into one end of the machine, and the Flooring Nester releases a consistent, nested bundle of flooring out the opposite end. Most importantly, it creates bundles the exact square footage you want to sell, increasing your profits by up to 3%.

How Does it Work

The Cameron Flooring Nester is an elegant, efficient blend of hardware and software. The machine works by doing the following:

  • Measuring strips of flooring, one by one, and feeding the information to the computer.
  • Board information is relayed to the computer, which decides how to use each board.
  • Sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system.
  • Strips of flooring the computer decides to use now are accumulated in the out-feed into rows. Rows are accumulated until a layer is made.

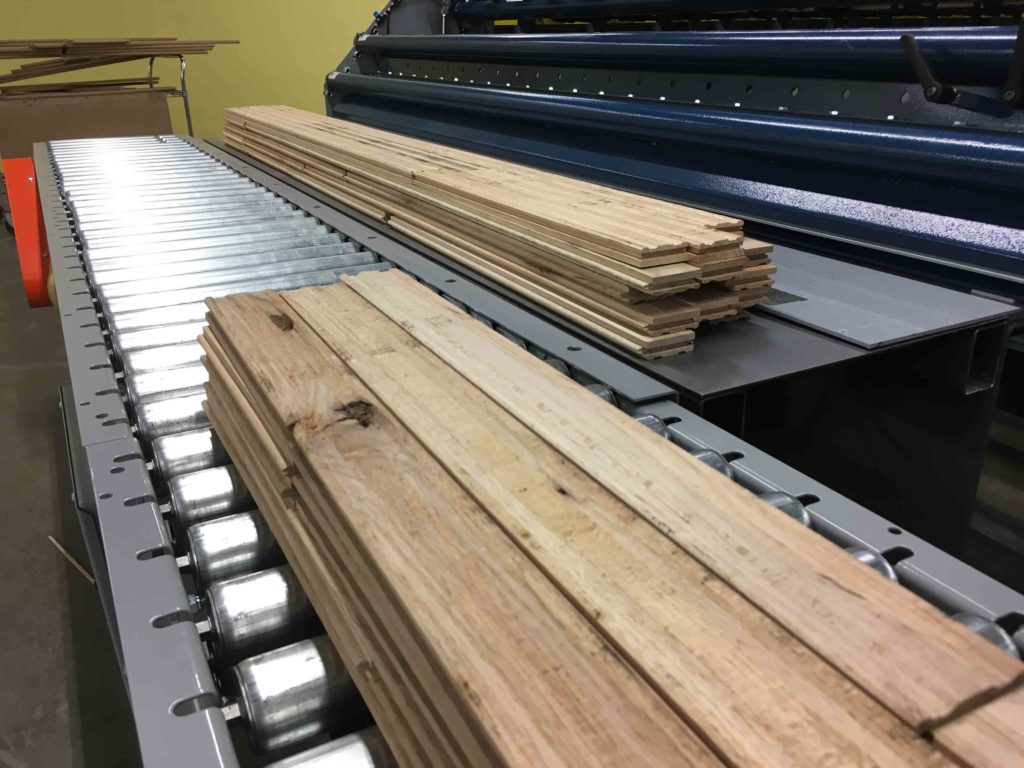

  • Layers are stacked until a finished bundle is made. Finished bundles are pushed to a waiting conveyor, ready for strapping.

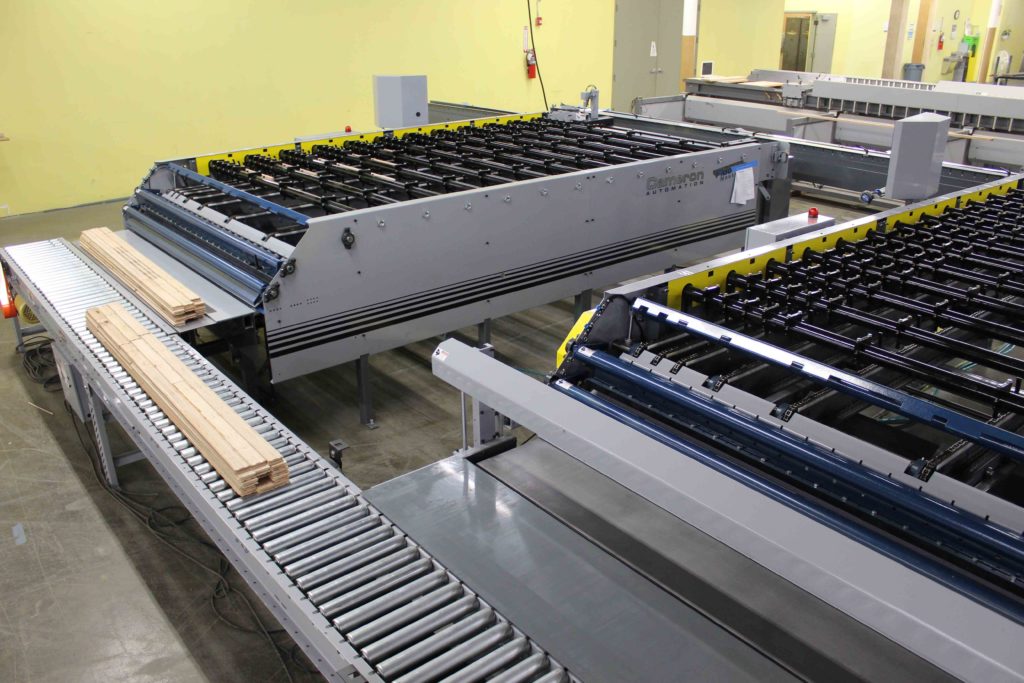

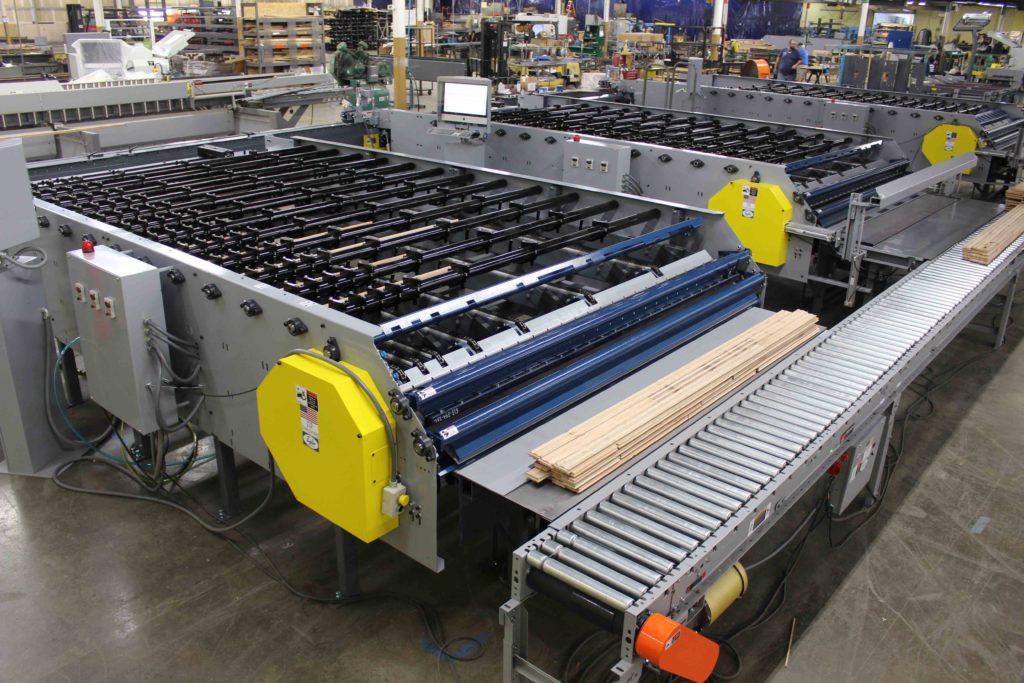

Combine Flooring Nesters on the same out-feed conveyor and strapping machine to increase productivity. This allows a single operator to manage multiple machines and keep your strapping and stacking operation centralized.

Information on the Out-feed Systems for the Nester can be found below

Contact us today to learn more about the Flooring Nester and how it can benefit your business!

Request a quote Call me

The Ultimate #513B – Flooring Nester for Woodworkers

Stacking and packaging of nested bundles of Hardwood Flooring has always been a manual process. Cameron Automation has revolutionized this process with the Flooring Nester

  • Measuring strips of flooring, one by one, and feeding the information to the computer.
  • Board information is relayed to the computer, which decides how to use each board.
  • Sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system.
#513B – Flooring Nester
#513B – Flooring Nester

Engineered for Precision & Speed

Stacking and packaging of nested bundles of Hardwood Flooring has always been a manual process. Cameron Automation has revolutionized this process with the Flooring Nester

  • Measuring strips of flooring, one by one, and feeding the information to the computer.
  • Board information is relayed to the computer, which decides how to use each board.
  • Sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system.

Boost Your Throughput

Compact and powerful, the #513B – Flooring Nester maximizes workspace efficiency.

#513B – Flooring Nester
Measuring strips of flooring, one by one, and feeding the information to the computer.
Measuring strips of flooring, one by one, and feeding the information to the computer.

Leverage measuring strips of flooring, one by one, and feeding the information to the computer. to streamline your workflow.

Board information is relayed to the computer, which decides how to use each board.
Board information is relayed to the computer, which decides how to use each board.

Bring board information is relayed to the computer, which decides how to use each board. to your bench for flawless quality.

Sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system.
Sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system.

Harness sending boards which can be used now are sent to the out-feed to build a bundle, while others are stored in our unique scoop storage system. for faster cycle times.

Strips of flooring the computer decides to use now are accumulated in the out-feed into rows. Rows are accumulated until a layer is made.
Strips of flooring the computer decides to use now are accumulated in the out-feed into rows. Rows are accumulated until a layer is made.

Take advantage of strips of flooring the computer decides to use now are accumulated in the out-feed into rows. rows are accumulated until a layer is made. for superior output.

Advantages over Hand Nesting

  • Eliminates Repetitive Manual Labor
    • Nesting Bundles by Hand is a Labor Intensive Job that the Auto-Nester can Solve, reducing employees exposure to repetitive motion
  • Improves Yield and Increases Margins
    • Hand nesters tend to oversize bundles, by as much as 3%. The Auto-Nester accurately measures the length of each and every board to know which sequence of boards will create the most accurate row
    • It keeps track of all rows and is able to size rows as it nears the end of a bundle to create a bundle nested extremely close to the target square footage
  • Consistent Bundles
    • The Auto-Nester will build bundles that not only are more consistent mathematically, they also look more consistent. This will create the perception of a higher quality bundle
  • Quality Control of Bundles
    • Tracks Items such as average board length, number of shorts, and bundle square footage, which can all be controlled and adjusted by the software
    • Software alerts the operators of short rows or bundles so the quality of the bundles can be managed bundle by bundle instead of by a random sampling
  • Software Accurately Tracks all Incoming and Outgoing Data for Production Reports

Flooring strips of random length enter the machine where they are measured for length. Strips are released by two sets of stops onto the main conveyor. At precisely the right time, a strip is scooped off of the main conveyor by an innovative lifting system. A computer processes the lengths of the strips to determine which combination of strips will produce an accurate length row. The machine constantly picks up and puts down strips to create rows. Rows are accumulated on the outfeed to create layers on the outfeed table. Layers are stripped off of the outfeed table to create bundles. Completed bundles are pushed off of the outfeed onto a conveyor, ready for strapping and packaging.

Automatic Belt, Automatic Strapper, and an Automatic Kicking Station

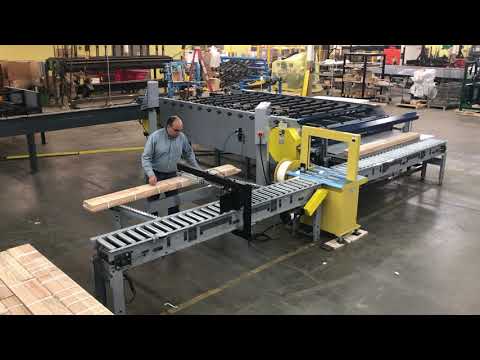

Complementing the Cameron Flooring Nester, the Cameron Automation Automated Strapping Line saves labor to the final step in your nested bundle flooring line. Using a touch screen interface to specify the length of bundles and number of straps needed, the conveyor line automatically advances the nested bundle from the Flooring Nester to the strapping machine, straps the appropriate number of straps and then moves the bundle ahead to the kicker station. The bundle is then kicked into the accumulating station. A single operator can manage several systems which reduces labor and increases profitability.
