Higher Production Wood Clamping system; The Taylor Super Automated increases the productivity over the Taylor Automated machine. This versatile carrier can handle many of the long, wide, and thick laminations that are needed in the industry.
Features:
Taylor’s Super Automated Clamp Carrier design increases the productivity of the machine by 20% without any change in operation or additional floor space. The industrial wood clamps machine has a separate loosening station above the operator which loosens the wood clamps one row before the panels are removed from the machine. This shortens the cycle time of the machine by at least 15 seconds which equates to one extra hour of production per shift. The technology used to do this is from our Dual Automated wood clamp machine where we have dozens of machines in operation in factories across the U.S.
Designed for Large Shops who produce up to 1200 – 1400 Panels in a day
Designed for Large Shops who produce up to 1200 – 1400 Panels in a day
Compact and powerful, the #80Z / #80Y – Super Automated Clamp Carrier maximizes workspace efficiency.
Leverage produces up to 4500 ft2 / shift to streamline your workflow.
Bring standard machine features machine frames built to match product dimensions to your bench for flawless quality.
Harness taylor’s patented clamp design in lengths to meet your needs for faster cycle times.
Take advantage of plc controlled automated tightener / flattener system for superior output.
Production is based on cycle time and panel size. Assuming that each section is curing 3 panels whose dimensions are 24″ x 24″ (60cm x 60cm) and assuming a cycle time of 75 seconds, production per shift equals:
One Panel:
=4 ft^2 (.36 m^2)
One Section:
=12 ft^2 (1.1 m^2)
One Cycle:
=75 seconds
=48 cycles/hour
=384 cycles/shift
Production output:
=12 ft^2 x 320 cycles or 4608 ft^2/shift
=1.1 m^2 x 320 cycles or 422 m^2/shift
Automated Tightener / Flattener & Overhead Loosening System

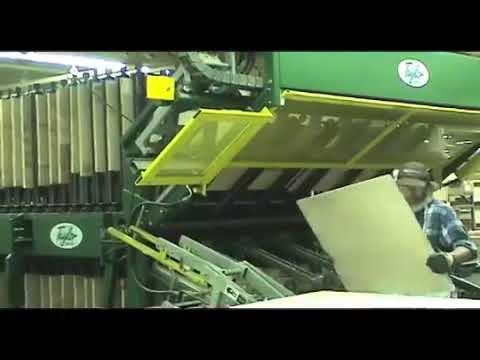

The Taylor Automated Front End is designed to double the operators production (pictured above and left). The Taylor Super Automated front end Increases that already doubled production by another 20% by utilizing an overhead loosener (pictured above and to the right) that loosens the clamps a section ahead. Utilizing PLC software and sensors, the Tightener / Flattener will index across the series of clamps, and automatically engage, flatten, and tighten the clamps while the operator is organizing the next batch of material for the Glue Applicator. While this is happening, the loosener is working, up above, and loosening a section ahead. The software also has a “Sequencing Program” that allows you to set a distinct path for the Tightener setting an order of clamps to tighten that makes the most sense for your products. Adjustable tightening and flattening pressure make this machine the most versatile and efficient design in Taylors’ arsenal.
Motor Drive for Rotation of the Sections:
The motor drive rotates the Clamp Carrier from section to section. It is offered with a pneumatic or hydraulic (shown) motor. The Motor Drive worm gear reducer insures controlled indexing from section to section, even when rotating an unbalanced load. The Motor Drive is controlled by a Joystick, on the Front Rest of the machine, and can rotate forward or reverse. The Motor Drive speeds rotation of the machine with precise control and minimizes operator fatigue.
High End, American Made Hydraulic System
The Clamp Carrier hydraulic system incorporates a proportional valve controlled by the programmable controller. By using a series of sensors and inputs, the controller monitors and measures the traverse speed of the Clamp Tightener carriage, the rotational speed of the Clamp Tightener, and the speed of the Clamp Carrier rotation. These measurements are taken on every cycle during normal operation and speeds are automatically adjusted up or down without operator or maintenance intervention. This upgrade take a huge step towards a maintenance free machine
