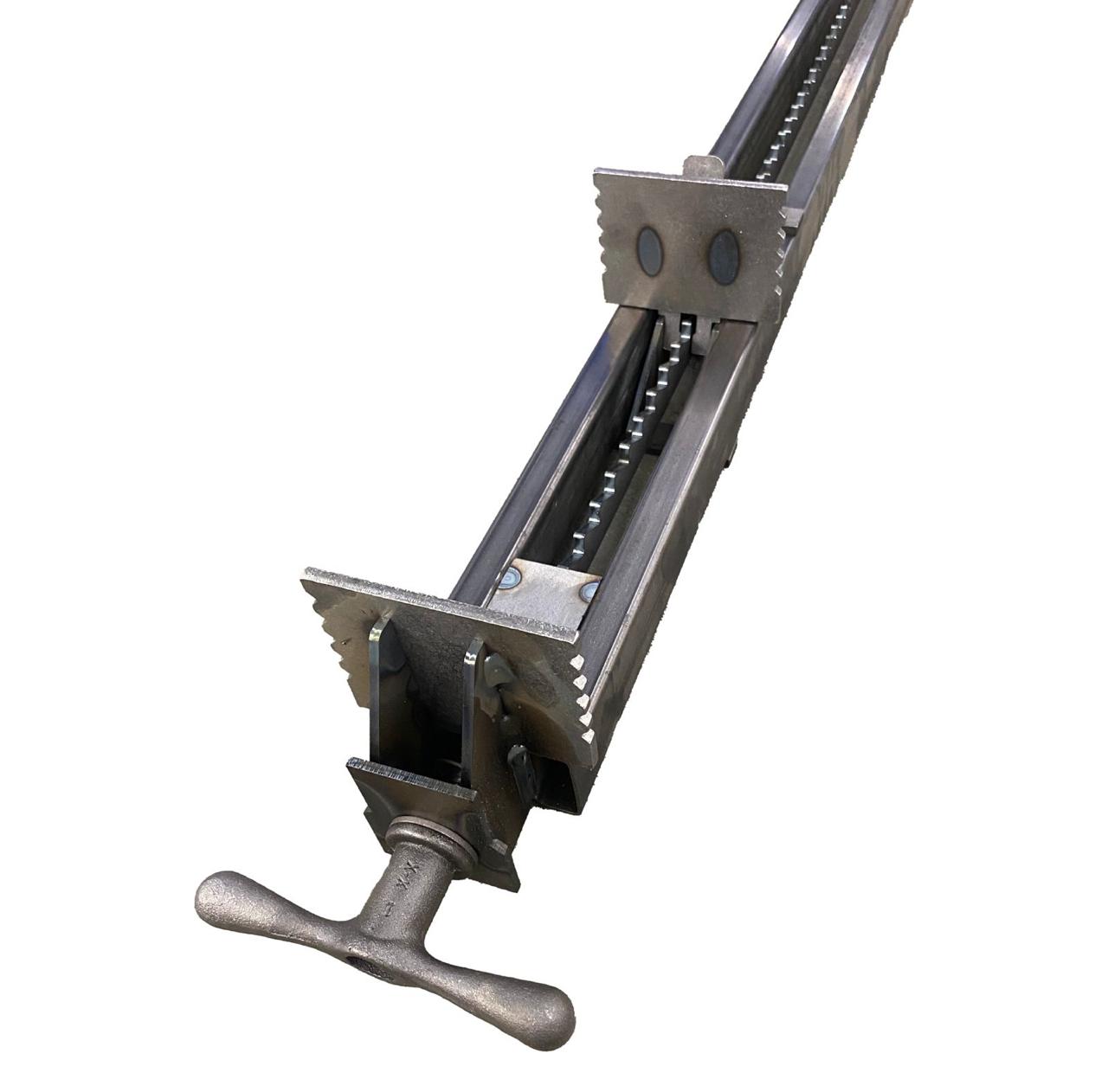

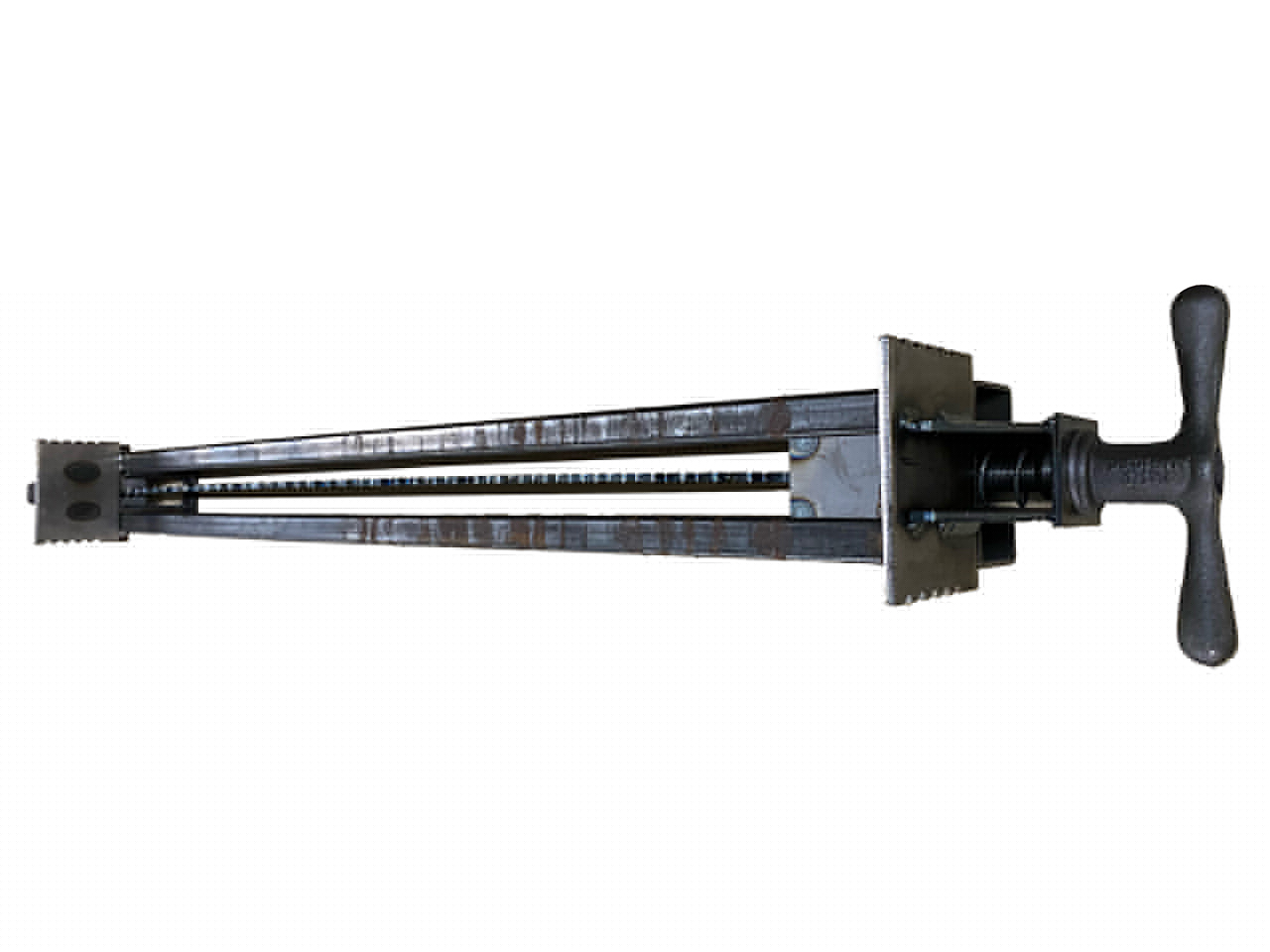

The #812B Series Taylor Clamp is the latest version of the clamp woodworkers have relied on for over a century, and it replaces the #302 and #202. It has a tubular steel frame, a one-piece welded screw and drawbar, and a laser-cut paddle-style latch. The standard T-handle tightens to as much as 3,000 lbs. of clamping force. The Patented Equalizer Design puts equal pressure on the front and rear jaws, and the jaws are toed in at one degree to hold boards flat. The result is tight, even glue lines on every panel. The #812B comes in 40″ and 52″ openings. It mounts to any JLT stationary rack, and it's built in Poughkeepsie, NY.

Features

Clamping Performance

• Handle tighten for up to 3,000 lbs. of clamping force (wing nut version optional)
• Patented Equalizer Design provides equal clamping pressure from front and rear jaws
• Jaws are toed in at a one-degree angle to help hold boards in place

Built Stronger

• 100% steel construction with a lifetime warranty on all welded components
• Guaranteed to never twist, bow or bend
• Tubular steel clamp frame, more rigid than the previous C-channel design
• One-piece welded clamp screw/drawbar assembly
• Laser-cut, paddle-style jaw latch engages a 1/4″ thick serrated drawbar

Setup and Options

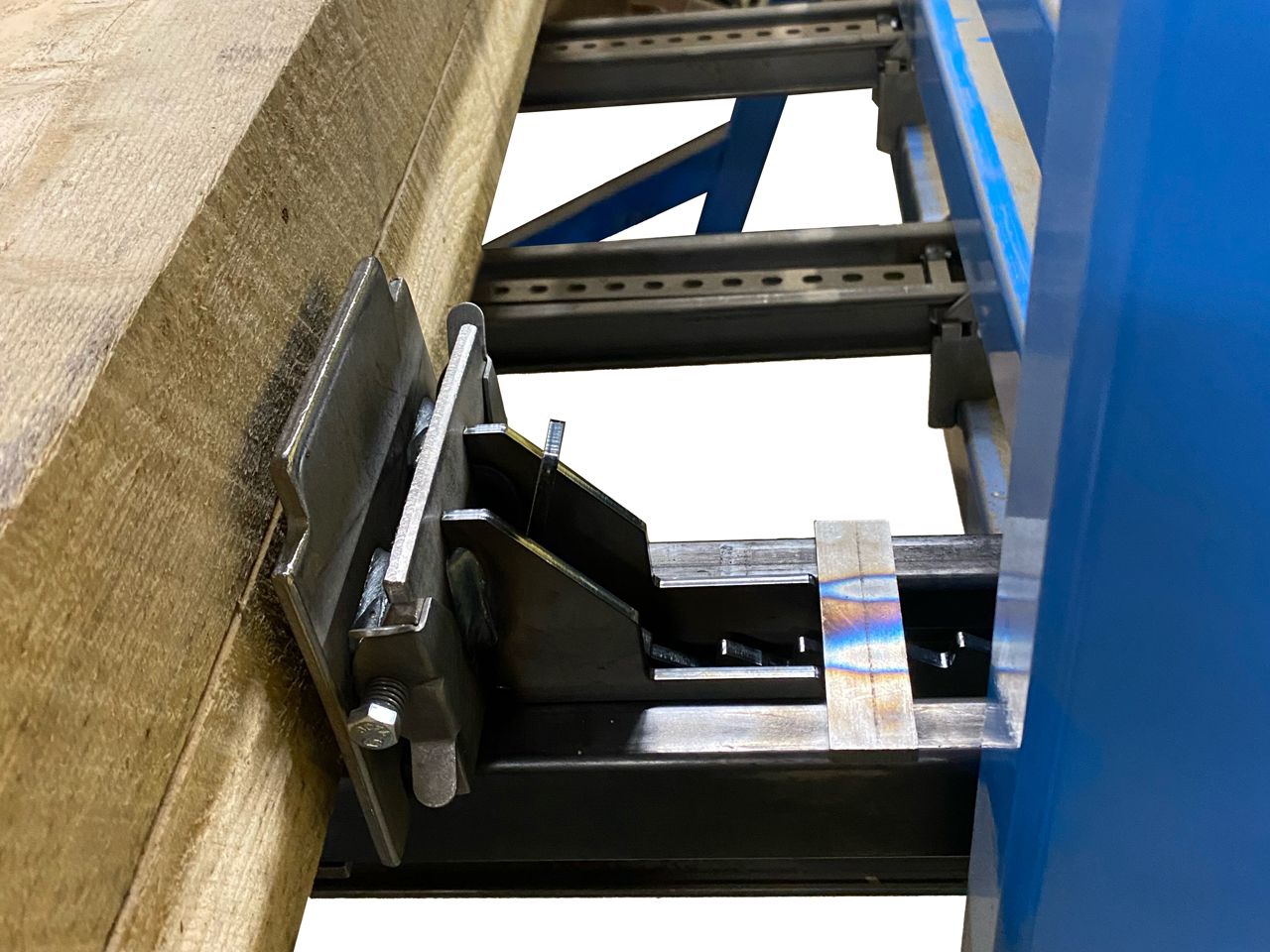

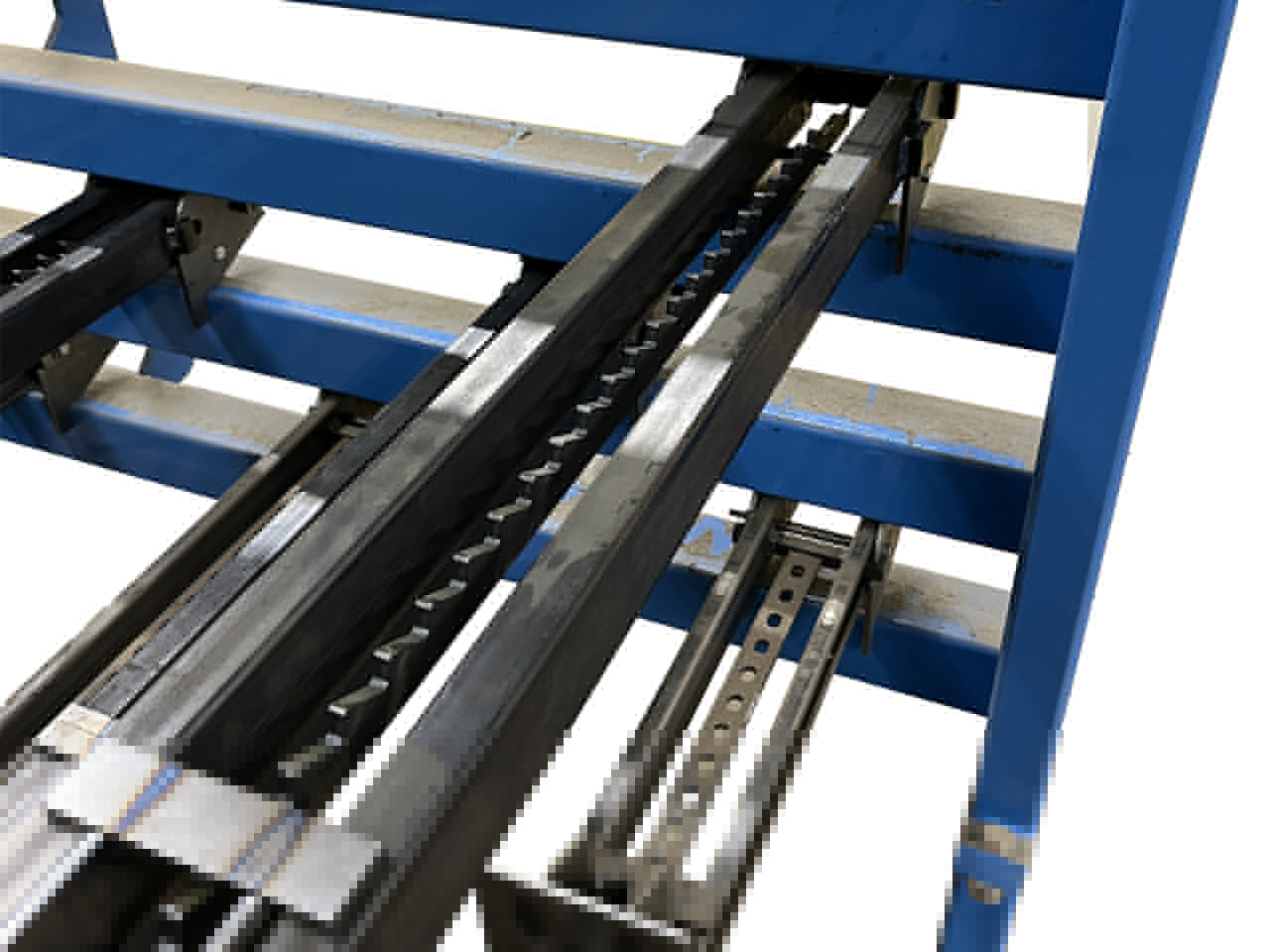

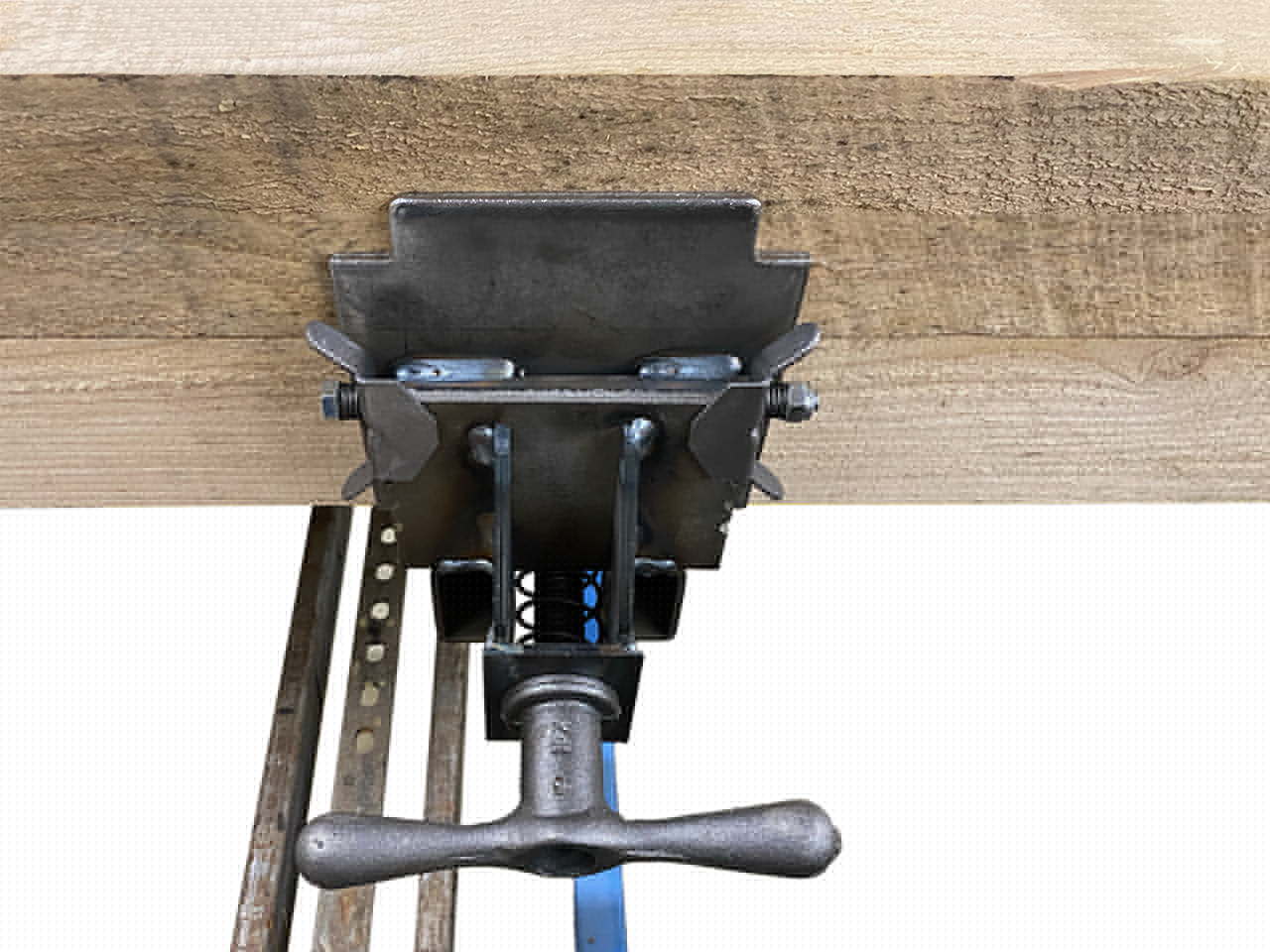

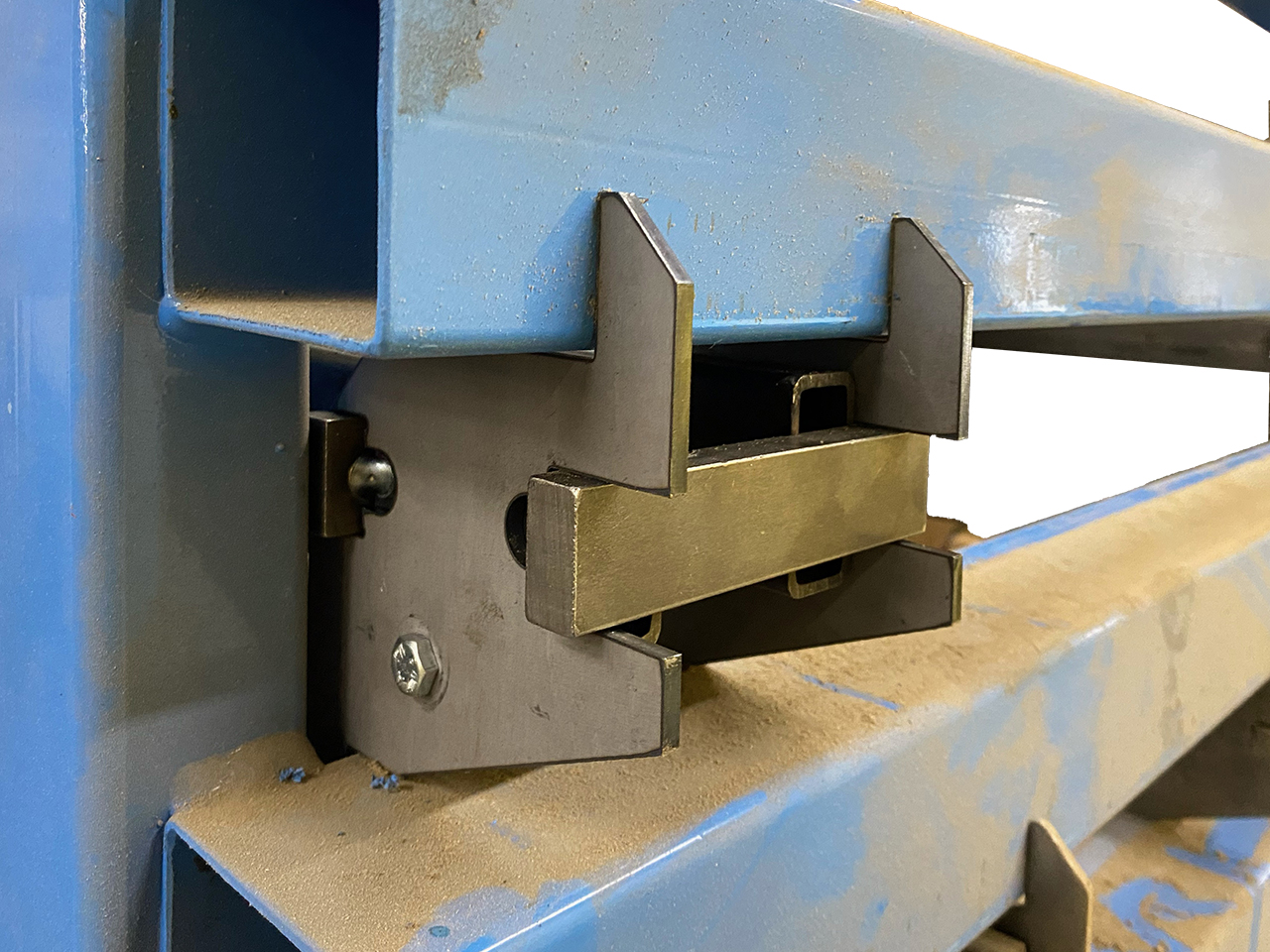

• Included mounting plates bolt over the 1/2″ sq. mounting blocks, so you can hang and slide the clamps on any JLT stationary rack
• Optional Rocker Plate Adapters for up to 6″ of jaw height
• Custom lengths and special clamps available on request

Warranty and Origin

• Complete 3-year warranty
• Made in the USA, Poughkeepsie, NY

Specifications
Clamp Opening: 40″ or 52″ (5″ minimum) · Jaw Height: 3-1/2″ (2-1/2″ optional) · Jaw Width: 4-5/8″ · Clamping Force: up to 3,000 lbs. (handle tighten)
