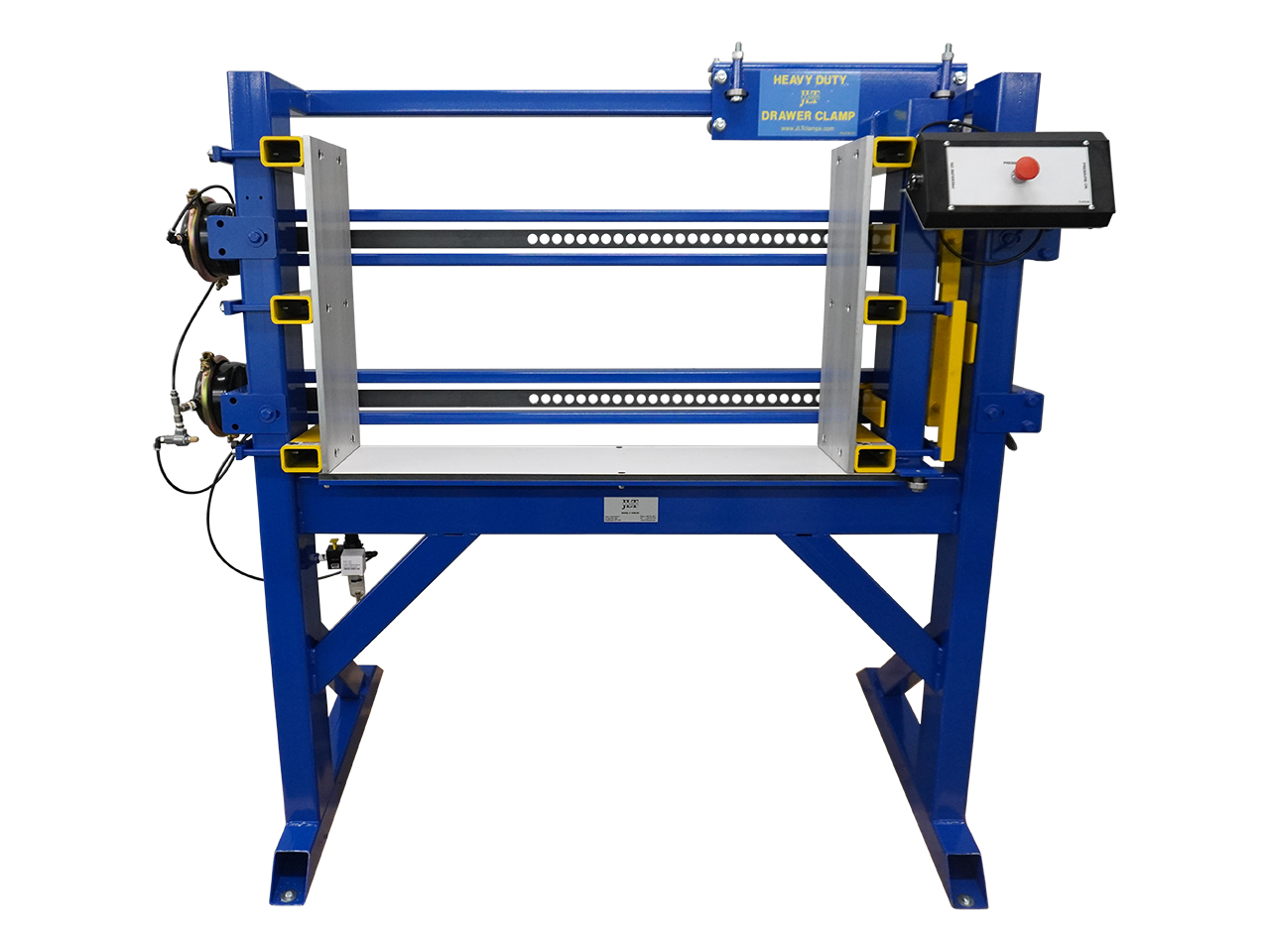

Heavy Duty Drawer Clamp – #190B-M3

Successfully Clamp and Square both Dovetail & Doweled Drawer Boxes

Features:

  • (2) Standard Machine Frames
    • 10″ x 24″ x 36″ Maximum Capacity

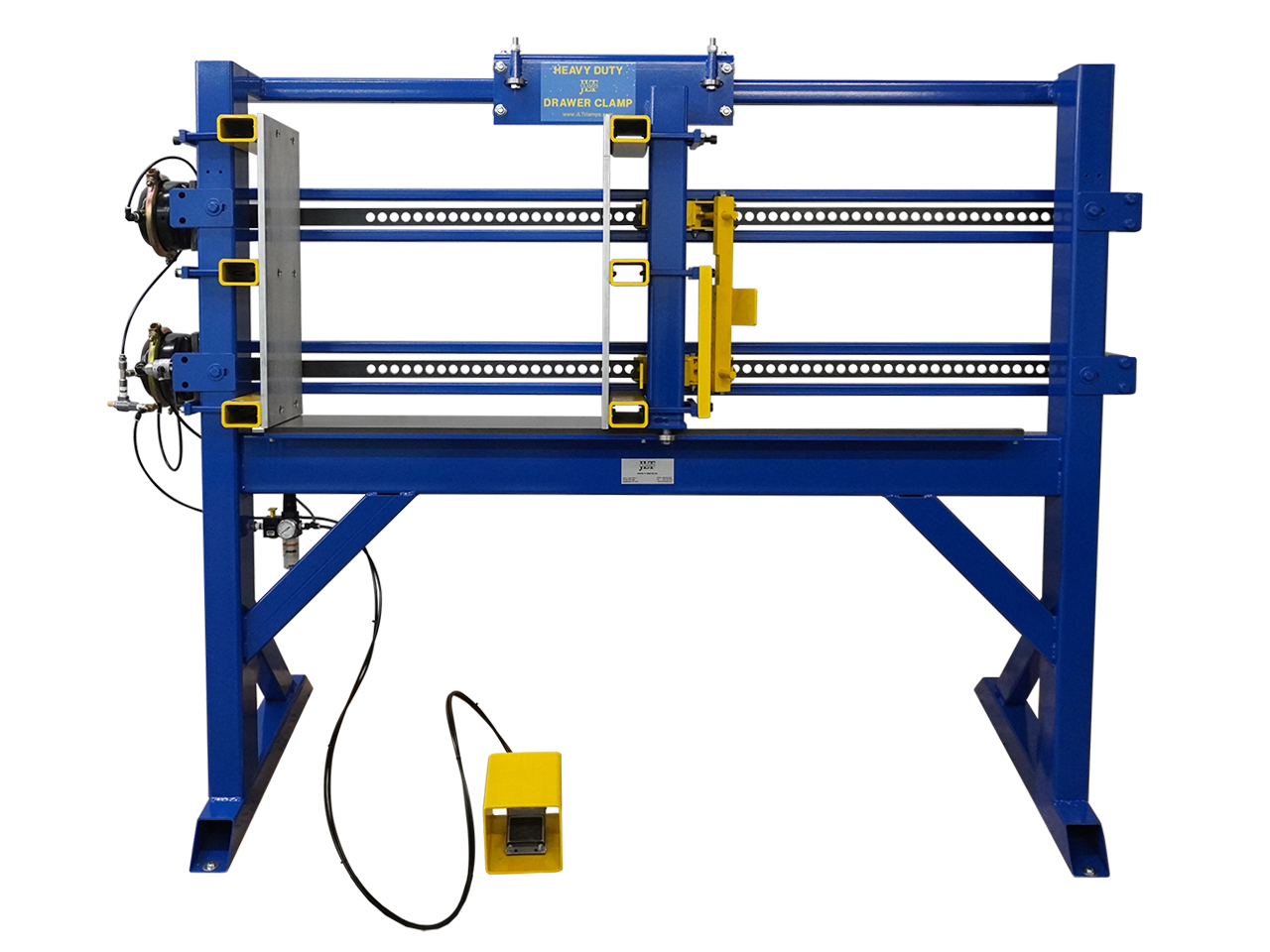

    • 12″ x 24″ x 48″ Maximum Capacity
  • Easy to Use and Intuitive Air System
  • Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers

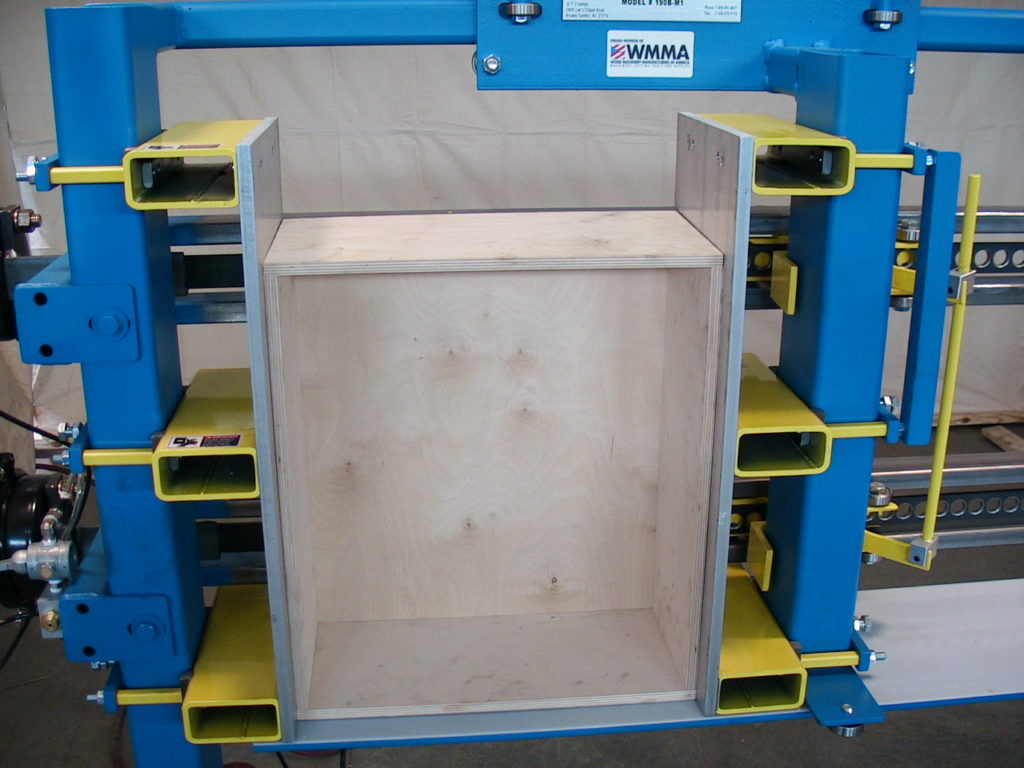

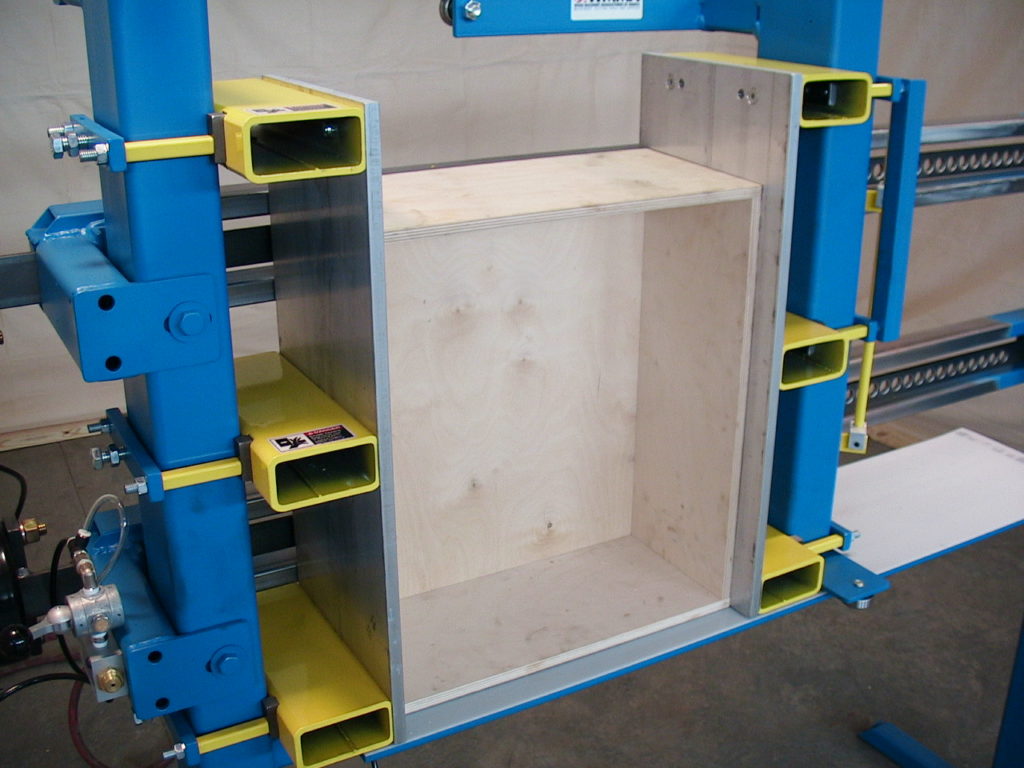

  • Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
  • Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.

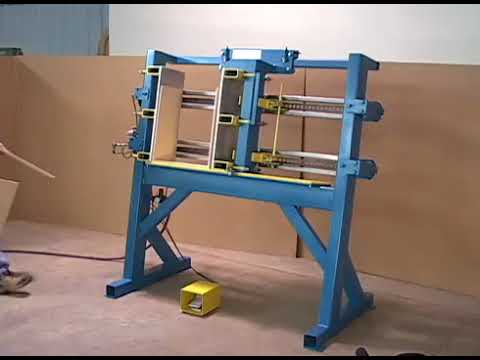

The JLT Heavy Duty Drawer Clamp is Designed to Clamp and Square all Doweled and Dovetail Drawer Construction Types. Our Design is Heavy Duty, Sturdy, Intuitive to Use, and Built to Last. It has Precise Squaring Capabilities with ample Clamping Pressure for your Boxes. A Quick Adjusting Roller Carriage Eliminated Setup Times when moving from Size to Size, and our Fast Acting Pneumatic System will Clamp and Square the Drawer in (2) Seconds.

Machine Footprint: 70″L x 60″H x 36″W

Request a quote Call me

The Ultimate Heavy Duty Drawer Clamp – #190B-M3 for Woodworkers

Successfully Clamp and Square both Dovetail & Doweled Drawer Boxes

  • (2) Standard Machine Frames 10″ x 24″ x 36″ Maximum Capacity
  • 12″ x 24″ x 48″ Maximum Capacity
  • Easy to Use and Intuitive Air System
Heavy Duty Drawer Clamp – #190B-M3
Heavy Duty Drawer Clamp – #190B-M3

Engineered for Precision & Speed

Successfully Clamp and Square both Dovetail & Doweled Drawer Boxes

  • (2) Standard Machine Frames 10″ x 24″ x 36″ Maximum Capacity
  • 12″ x 24″ x 48″ Maximum Capacity
  • Easy to Use and Intuitive Air System

Boost Your Throughput

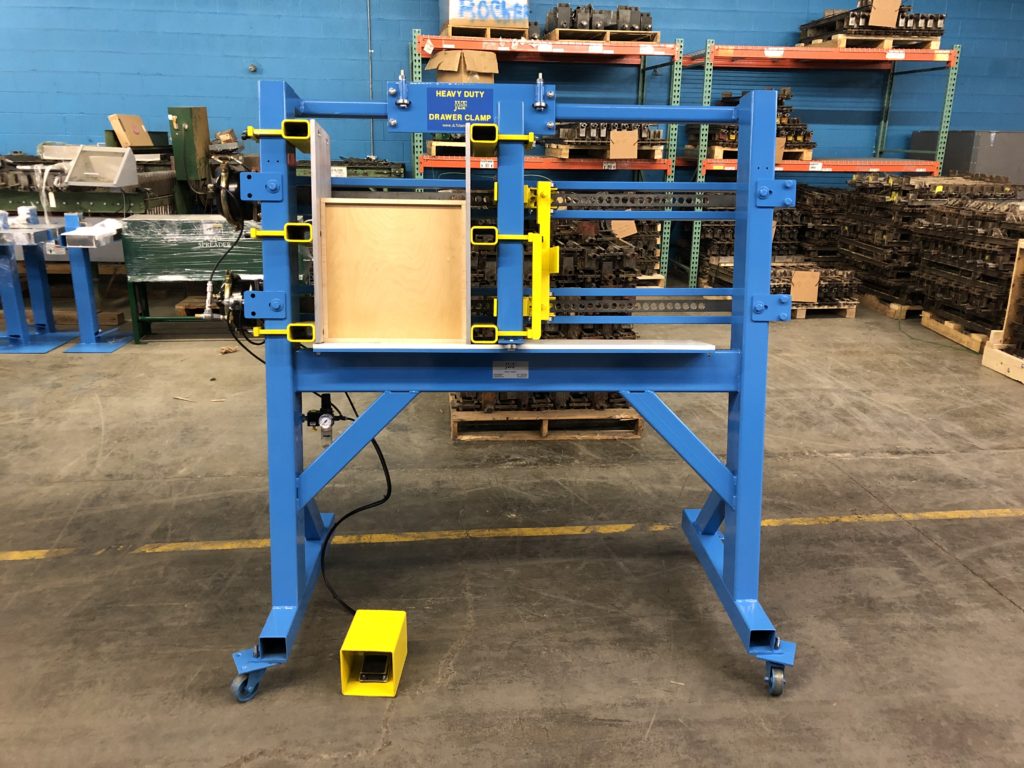

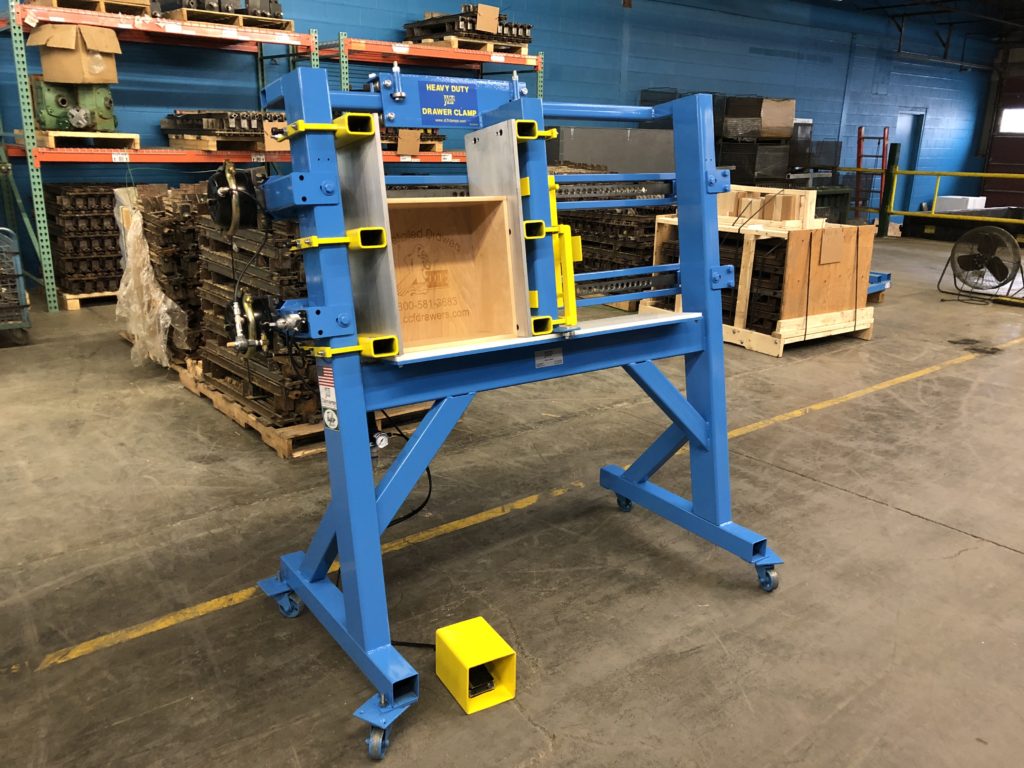

With a footprint of 70″L x 60″H x 36″W, seamlessly integrate the Heavy Duty Drawer Clamp – #190B-M3 into your production line.

Heavy Duty Drawer Clamp – #190B-M3

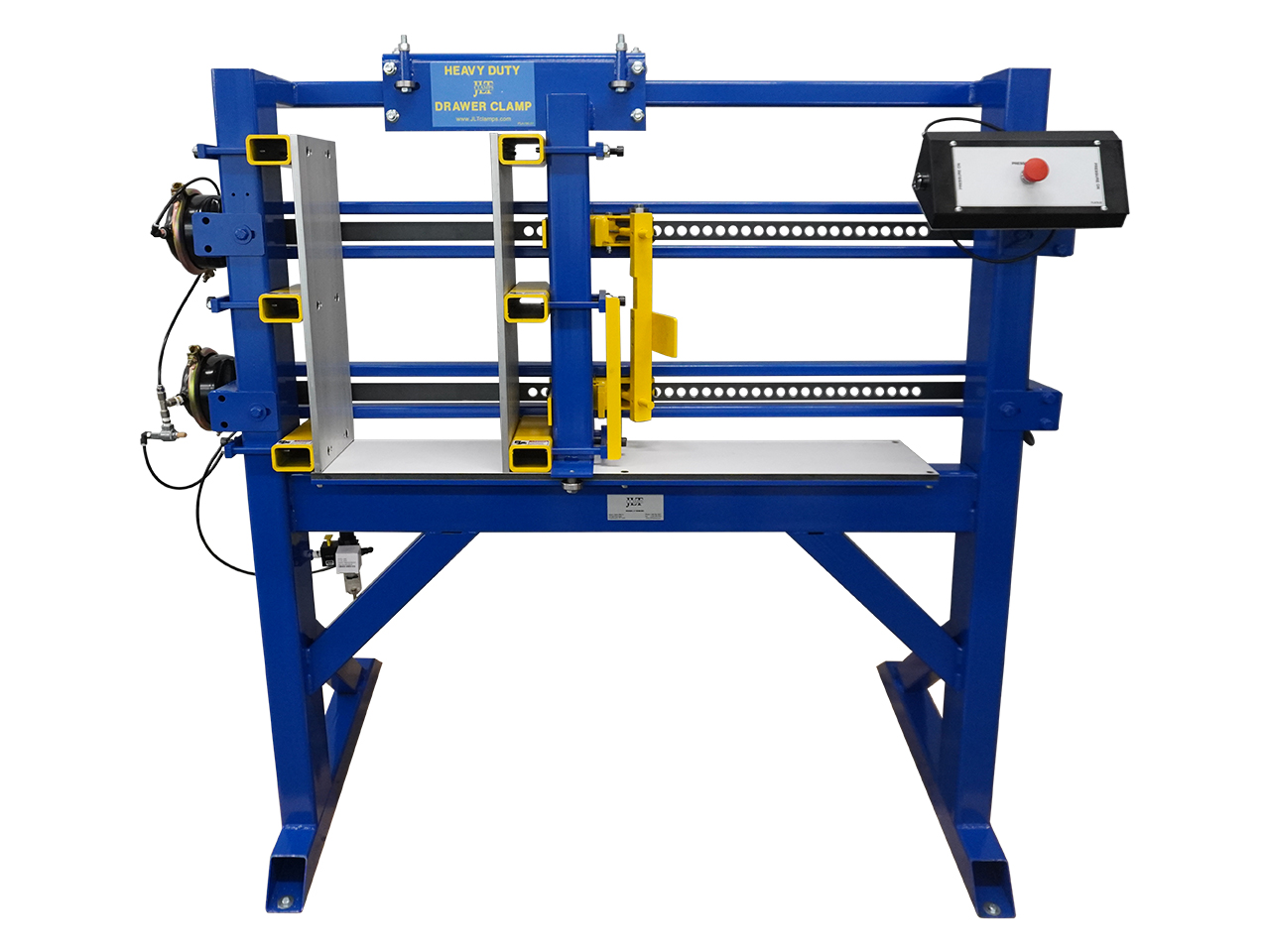

(2) Standard Machine Frames 10″ x 24″ x 36″ Maximum Capacity
(2) Standard Machine Frames 10″ x 24″ x 36″ Maximum Capacity

Leverage (2) standard machine frames 10′ x 24′ x 36′ maximum capacity to streamline your workflow.

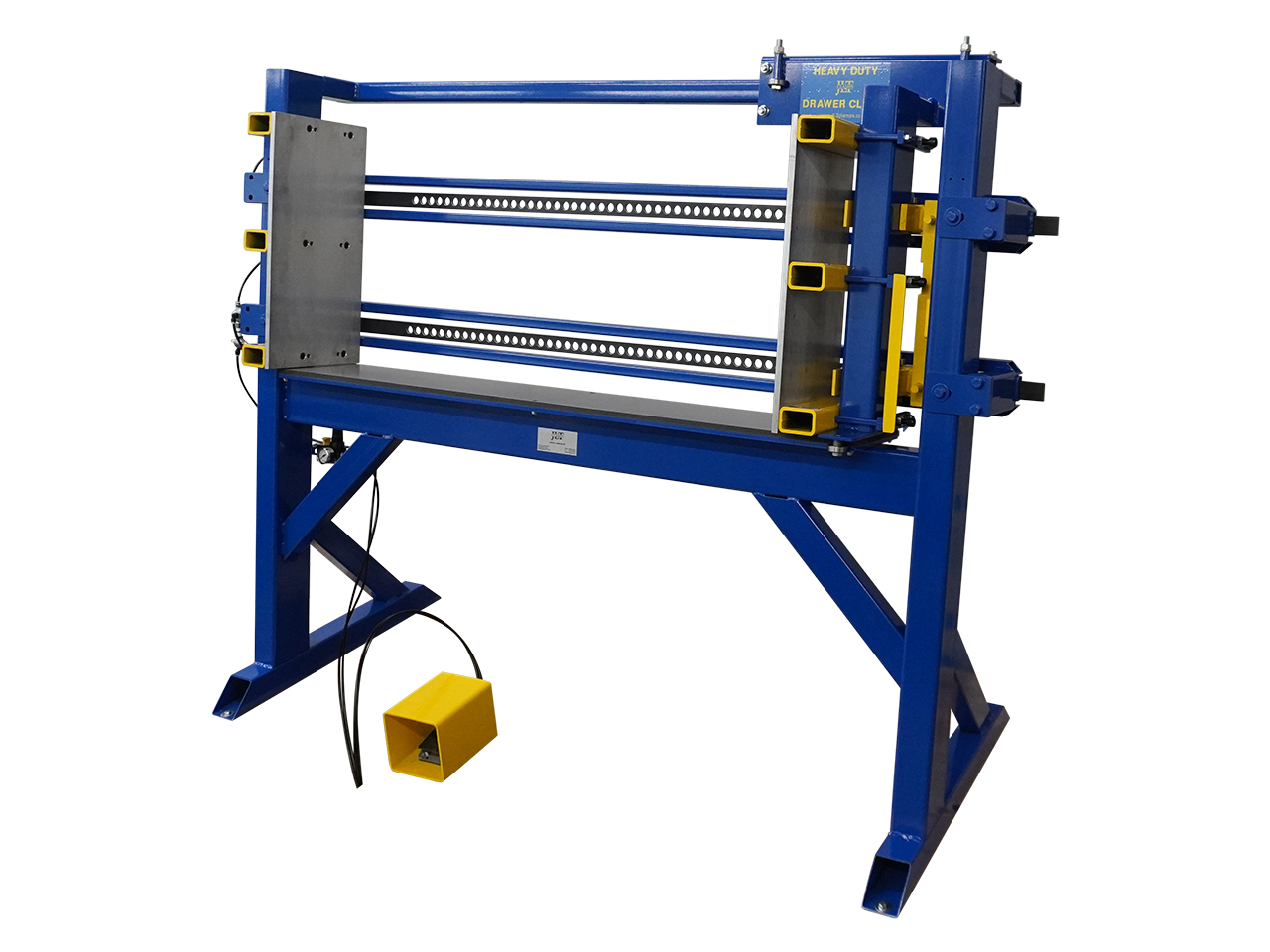

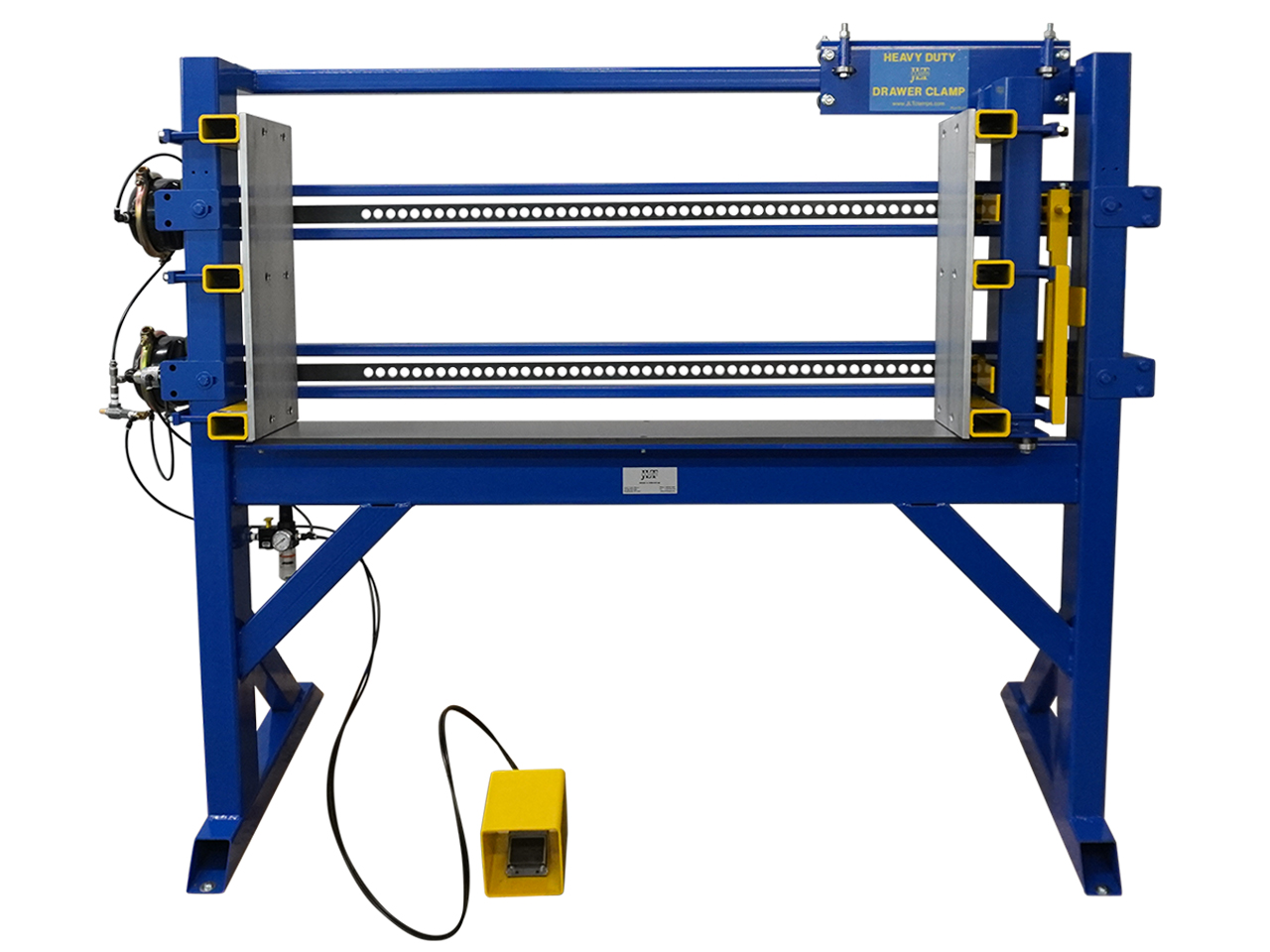

12″ x 24″ x 48″ Maximum Capacity
12″ x 24″ x 48″ Maximum Capacity

Bring 12′ x 24′ x 48′ maximum capacity to your bench for flawless quality.

Easy to Use and Intuitive Air System
Easy to Use and Intuitive Air System

Harness easy to use and intuitive air system for faster cycle times.

Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers
Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers

Take advantage of quick adjusting roller carriage eliminates set-up for faster changeovers for superior output.

Additional Features:

  • 100% Welded Tubular Steel Frame
  • Includes (3) Sets of Tubular Steel Pressure Shoes and Aluminum Side Plates for a Strong and Flat Clamping Surface
  • Easy to Use and Intuitive Air System

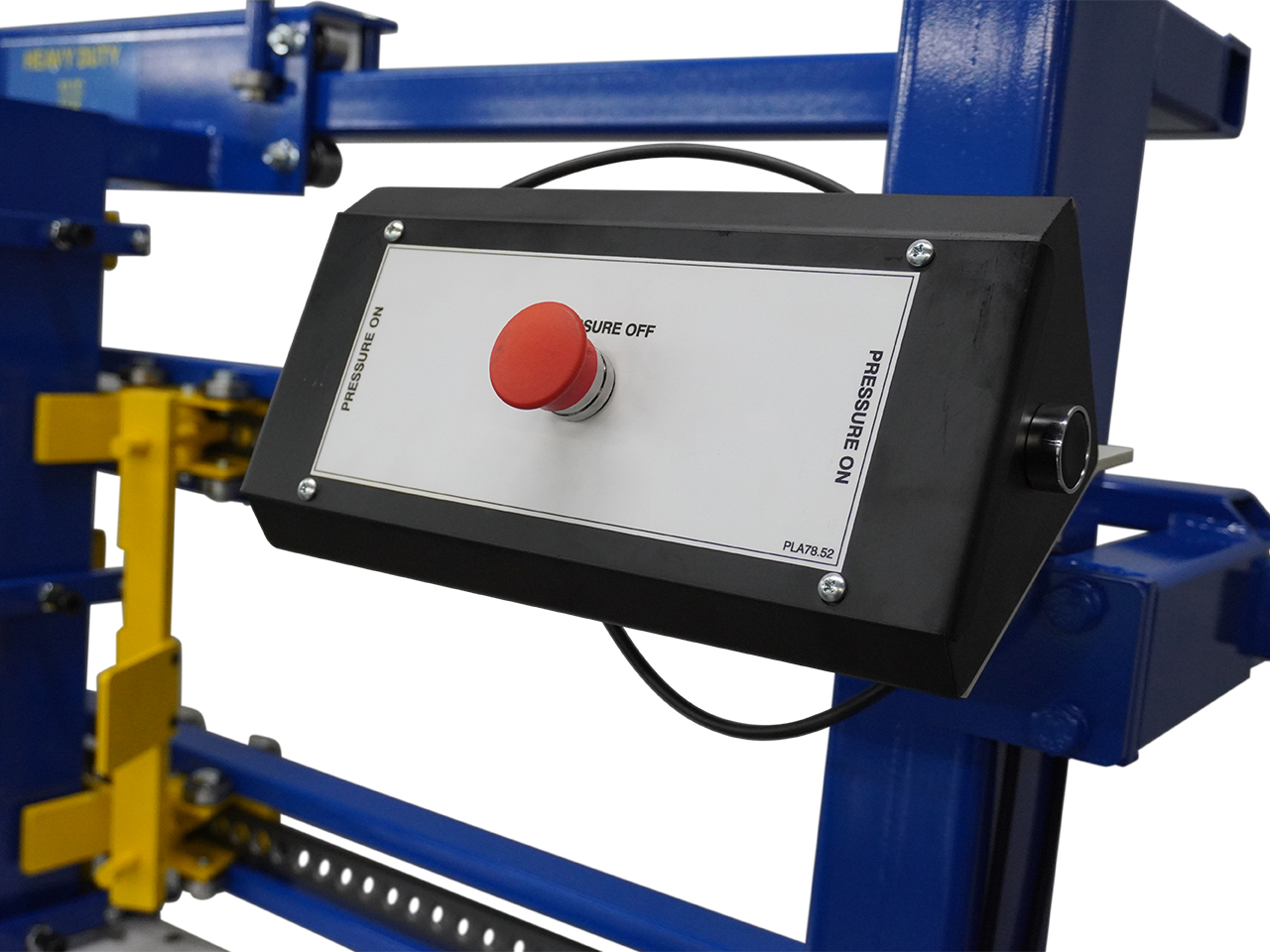

    • Instant On / Off Pneumatic Foot Pedal Operation
    • Lever Valve to Lock Air System On for Solid Wood Doweled Drawer Boxes that Need Time to Cure
    • Side Mounted Lever Valve can be Used as a Secondary Pneumatic Control Station

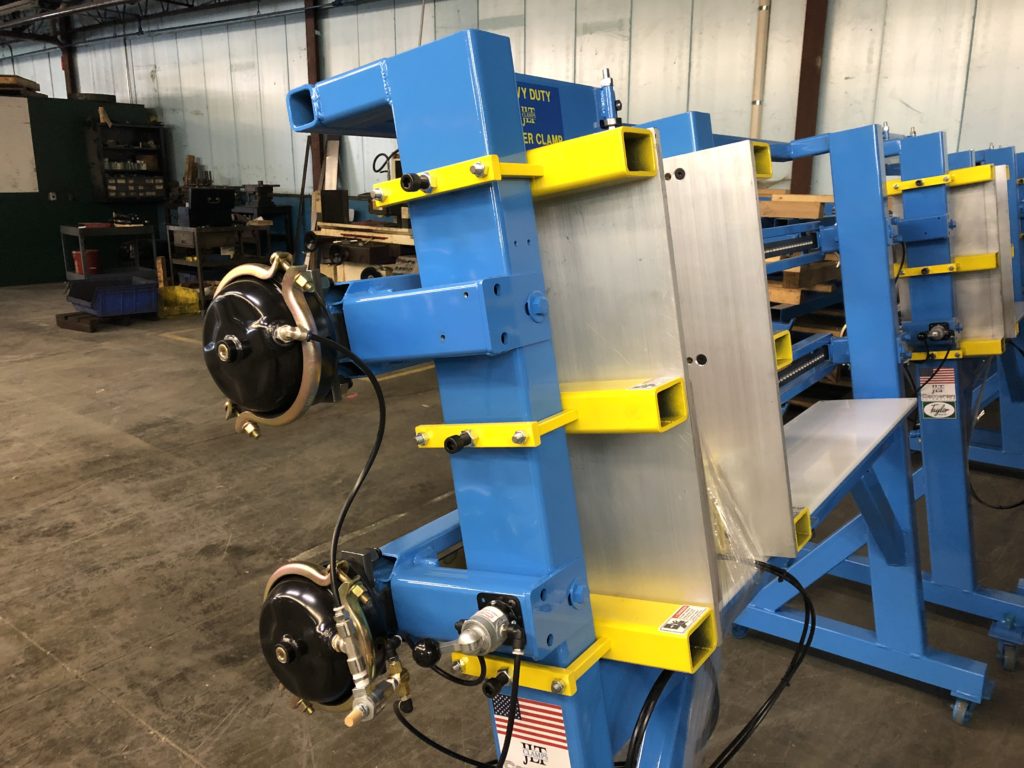

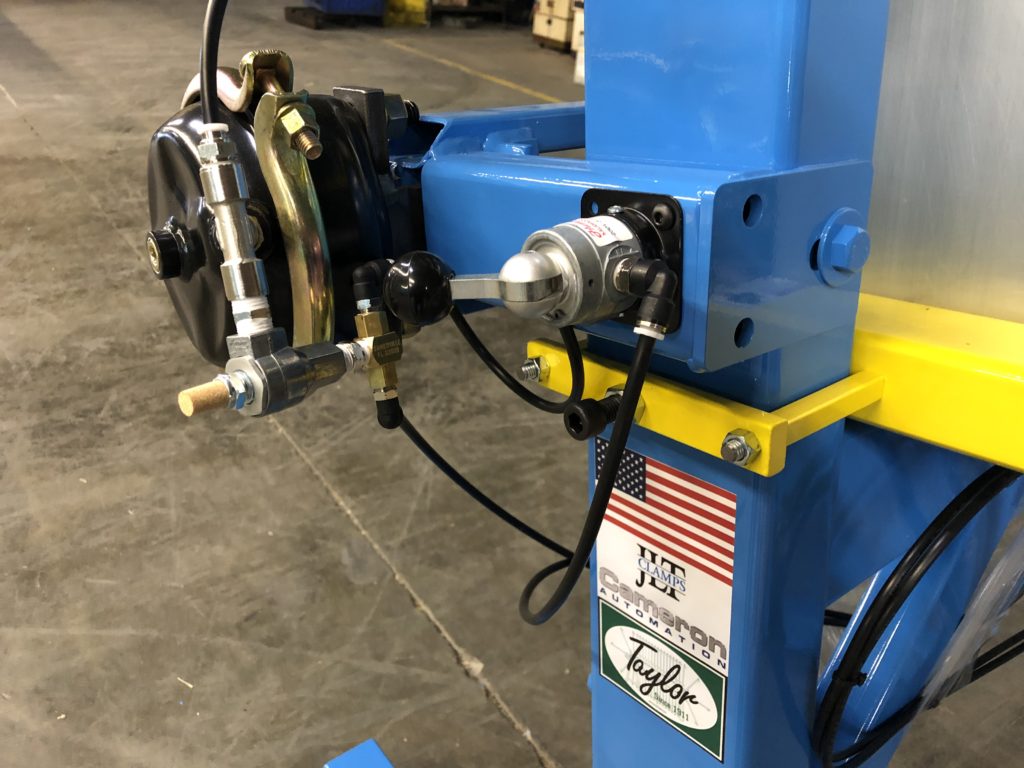

  • Dual Fast Acting Horizontal Pneumatic Clamps with a 2″ Stroke.
    • Produce up to 3000# of clamping force at 100 psi (each)
  • Quick Adjusting Roller Carriage Eliminates Set-up for Faster Changeovers

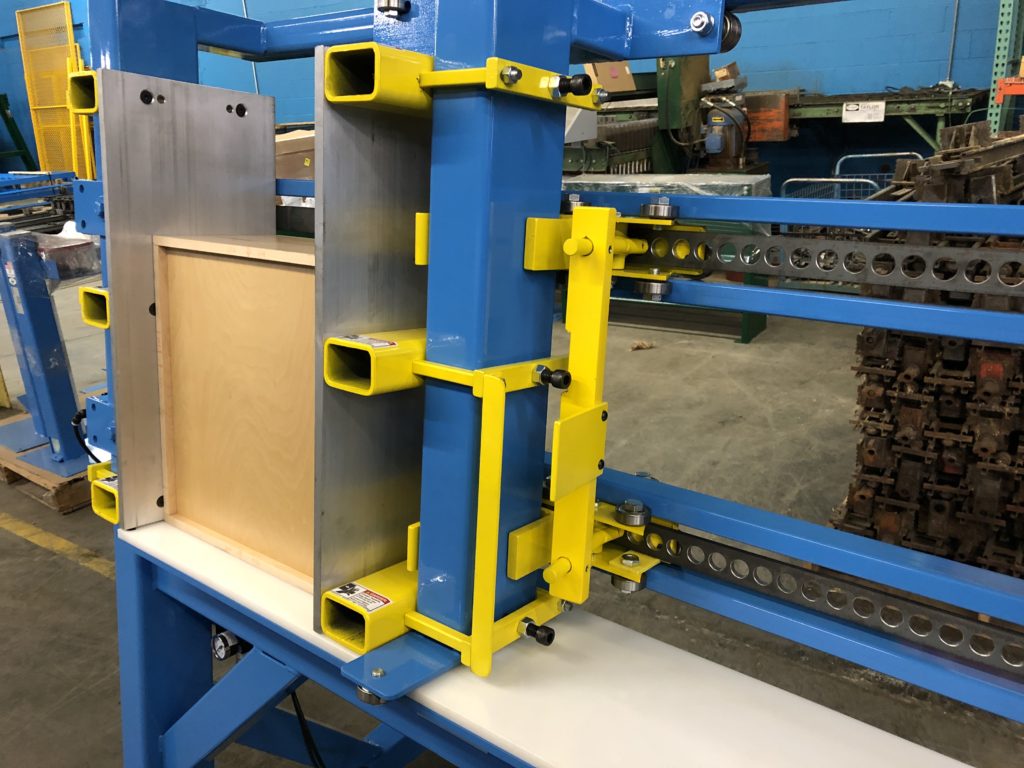

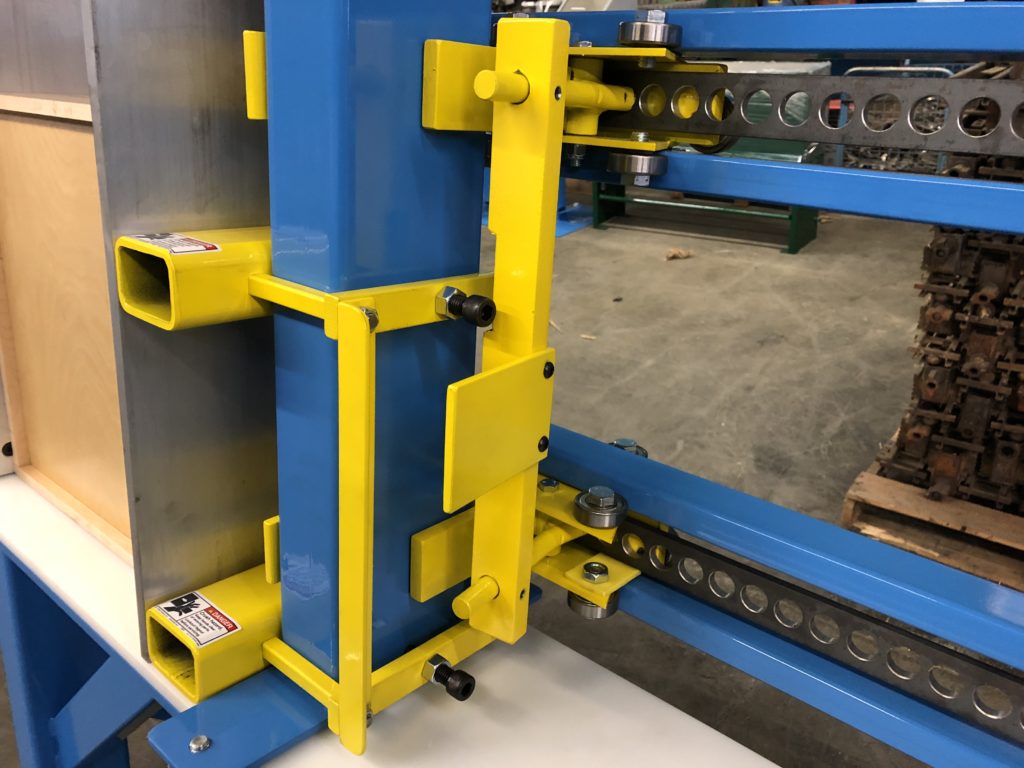

    • One Hand Carriage Adjusting with Vertical Rod and Handle Grip

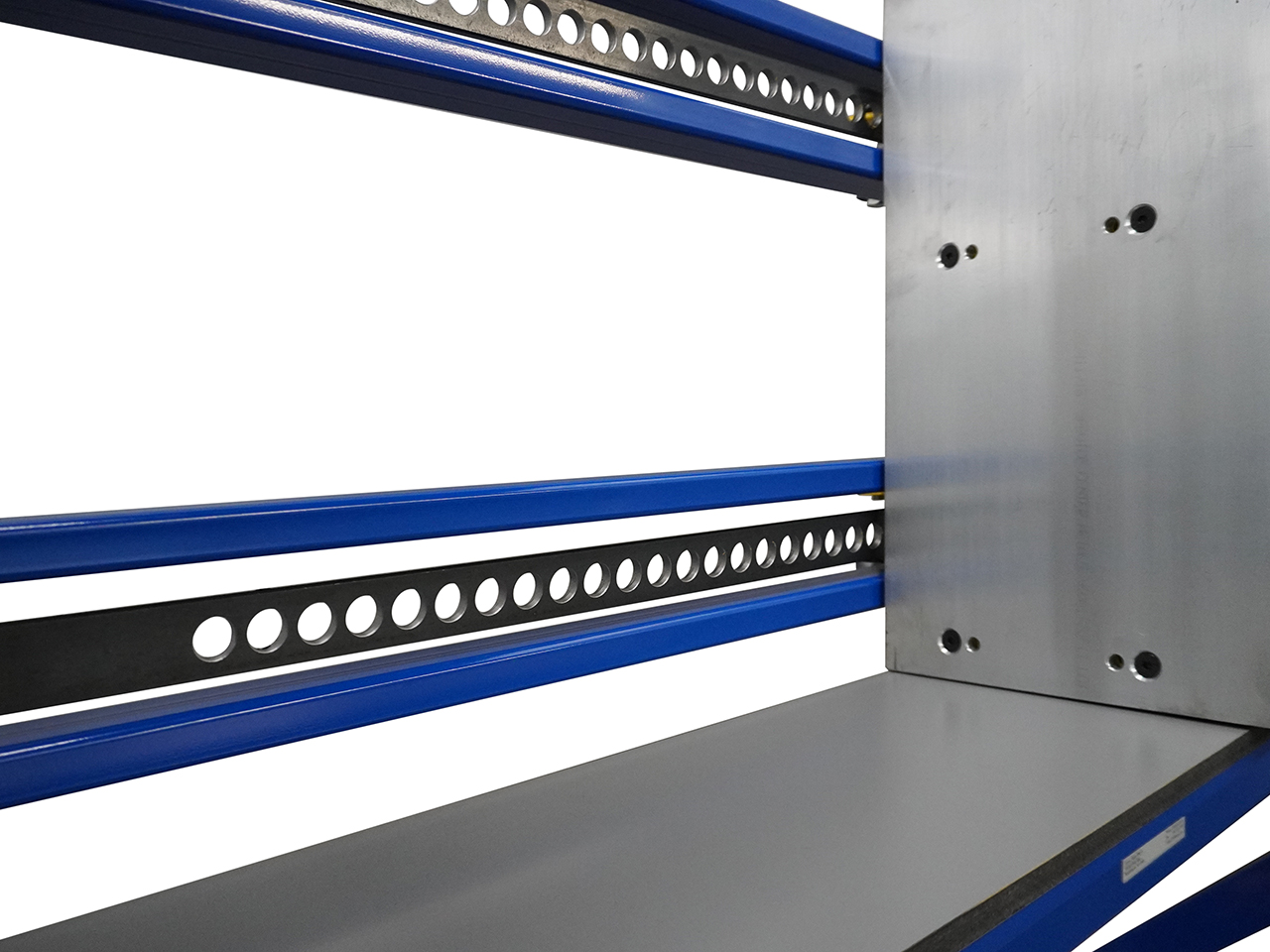

  • Aluminum Side Pressure Plates Provide a Solid, Flat Clamping Surface
