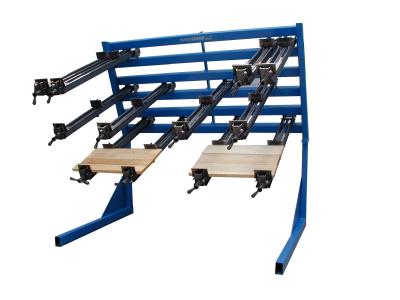

#79F-6-PC – 6′ Panel Clamp

#79F-6-PC – 6′ Panel Clamp

JLT’s Most Compact Panel Clamp – Perfect for the Small Shop or Hobby Shop

The JLT 6′ Panel Clamp gives smaller woodworking shops a full edge-gluing setup that fits a small footprint. It comes with ten 3-1/2″ high-jaw, handle-tighten clamps and a 2,000 lb. weight capacity, so you can glue up a wide variety of solid wood panels. Clamps hang from mounting plates and slide left to right along the rack, which makes it quick to set up for each job. Add the optional Rocker Plate Adapters to face glue stock up to 6″ thick. Every JLT Panel Clamp is built in Poughkeepsie, NY, and backed by a complete 3-year warranty.

Features

  • Edge glue a wide variety of solid wood components
  • Includes (10) 3-1/2″ high jaw, handle-tighten clamps
  • 40″ clamps standard, 52″ optional, or mix and match for a custom package
  • Includes a quart of glue release agent
  • 2,000 lbs. total weight capacity
  • Mounting plates let you hang the clamps and slide them left to right for quick setup
  • Optional Rocker Plate Adapters for face gluing stock up to 6″ thick
  • Heavy-duty steel clamps built to last a lifetime with minimal maintenance
  • Complete 3-year warranty
  • Made in the USA, Poughkeepsie, NY

Machine dimensions
Width: 73″ · Height: 72″ · Depth: 48″ (62″ with 40″ clamps loaded) · 20° operating angle

Request a quote Call me

Edge Glue and Face Glue a Wide Variety of Solid Wood Components

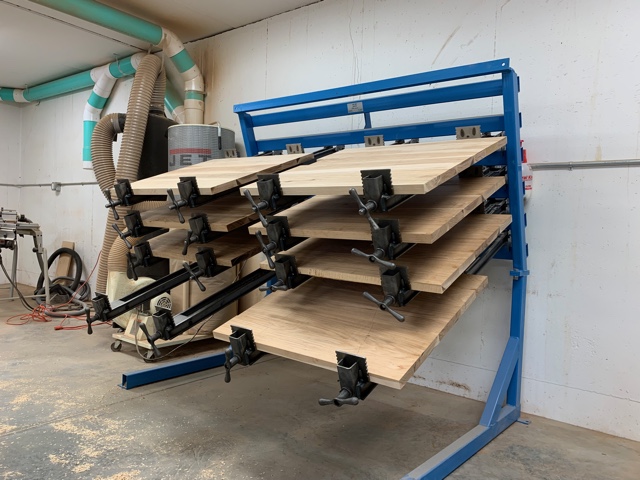

  • Edge glue solid wood panels for tabletops, cabinet parts, cutting boards and more
  • Face glue thick stock up to 6″ thick with the optional JLT Rocker Plate Adapters. The plates attach and detach easily, so you only use them when you need them.
  • Put (2) 6′ Panel Clamps side by side to edge glue up to 12′ long rail

What's Included

  • (10) 3-1/2″ high jaw, handle-tighten clamps
  • 40″ clamps standard
  • 52″ clamps optional, or mix and match 40″ and 52″ for a custom package. Longer clamps usually go on the bottom row.
  • A quart of glue release agent
  • Additional clamps sold separately

Built for the Small Shop

  • JLT's most compact panel clamp, with a 73″ W × 72″ H × 48″ D footprint (62″ deep with 40″ clamps loaded)
  • Freestanding rack with a 2,000 lbs. total weight capacity
  • 20° operating angle
  • (5) gluing levels

Easy Setup and Storage

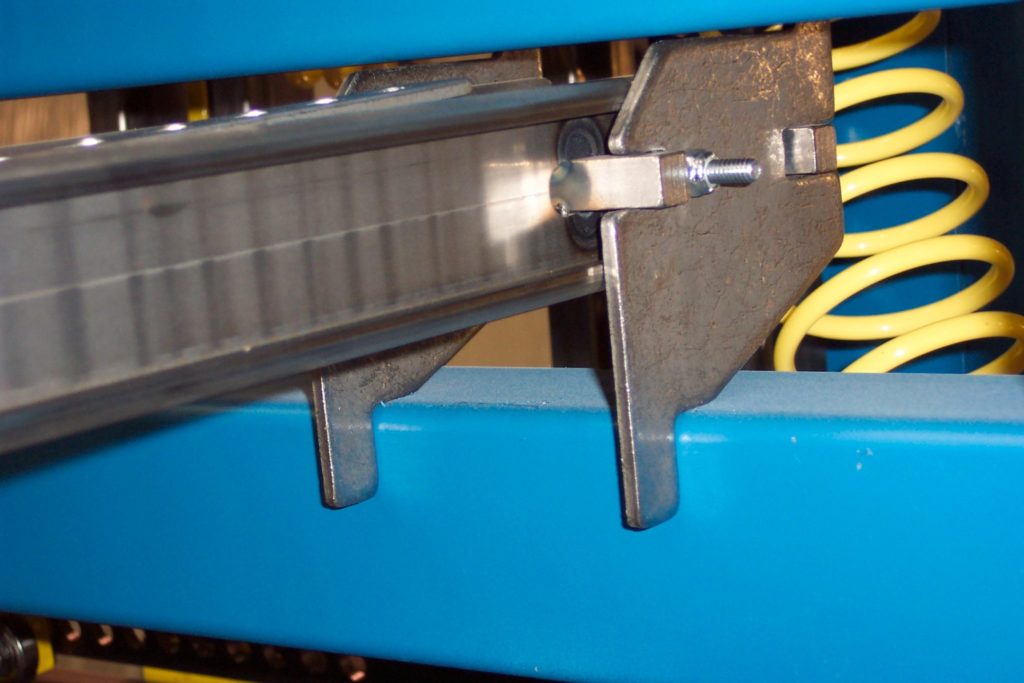

  • Mounting plates on the back of each clamp hook onto the rack quickly
  • Slide the clamps left to right to set up each glue-up
  • Clamps hang on the rack when not in use, which saves floor space

Heavy-Duty Construction

  • 100% tubular steel frame for a flat, even clamping surface
  • Taylor's patented clamp arm design
  • Steel clamps built to last a lifetime with minimal maintenance

Warranty and Origin

  • Complete 3-year warranty
  • Made in the USA at our Poughkeepsie, NY facility

Recommended Accessories

  • #302-40-H-R Additional Clamps
  • 138B 8″ × 48″ Taylor Plate Spreader
  • 150B Glue Spreader
  • 180A Pneumatic Panel Flattener
  • 79-16 Hold Downs
  • 80-1706 Rocker Plates

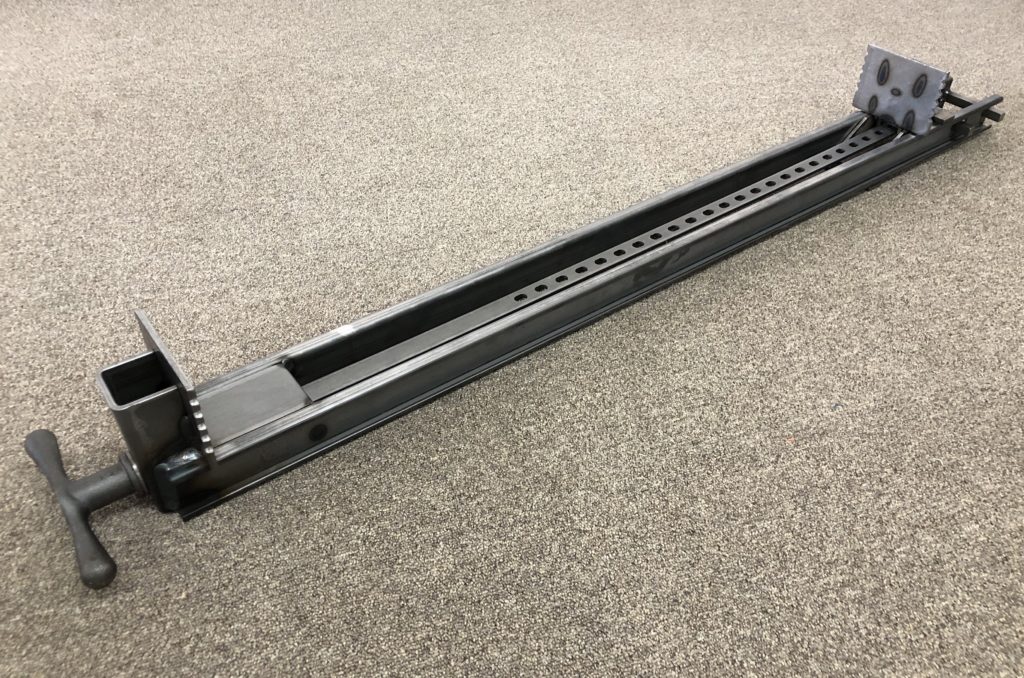

#812B clamp design

Additional JLT Clamps with T-Handles for Tightening

Clamping Capacity Options: 40″ and 52″ clamp opening.
Clamp Jaw Options: 2.5″, 3.5″

Special Clamps and Custom Sizes Available upon Request.

Features:

  • 100% steel construction with a lifetime warranty on all welded components
  • Guaranteed to never twist, bow, or bend
  • Patented Equalizer Design provides equal
  • clamping pressure from front and rear jaws

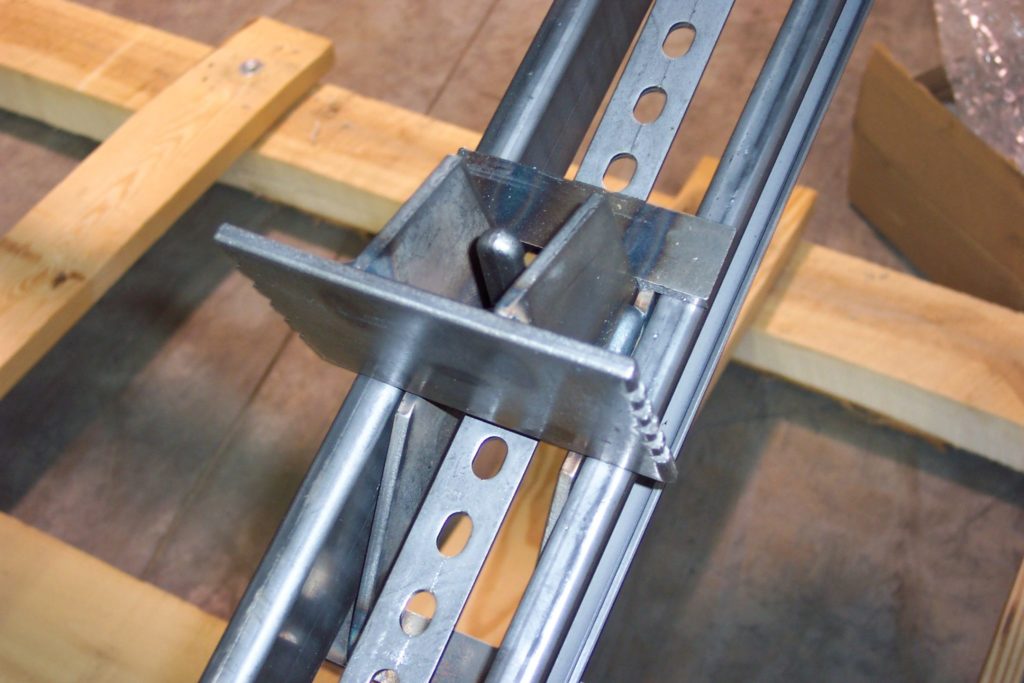

  • Jaws are toed in at a one degree angle to help hold boards in place
  • Custom lengths available
