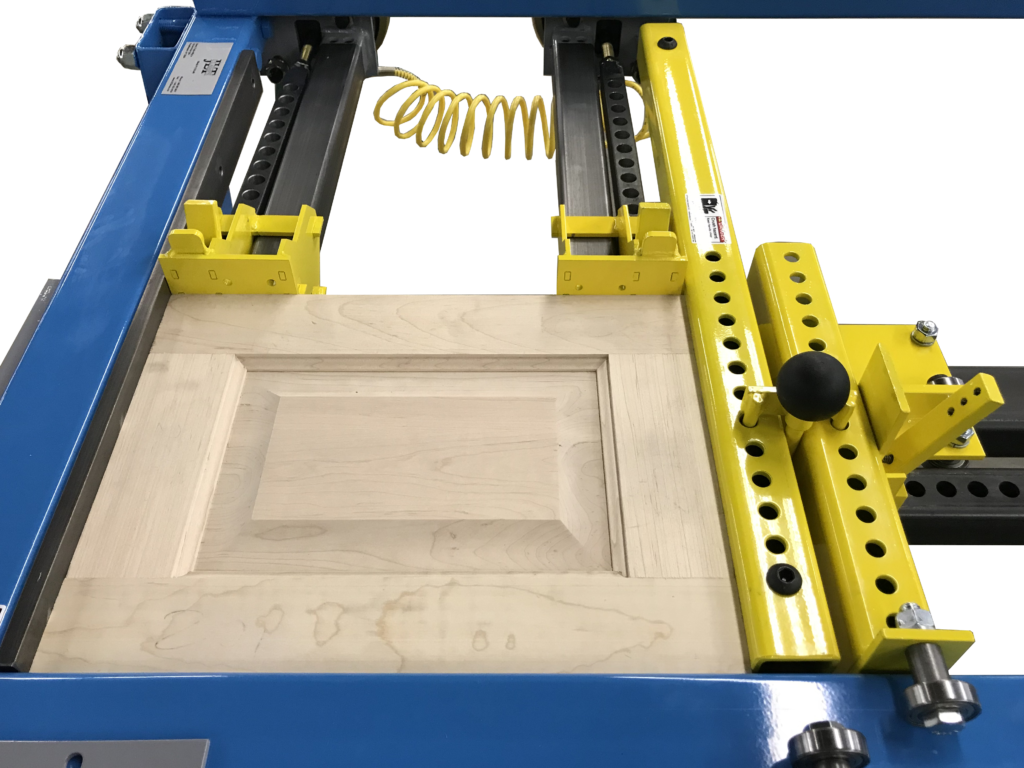

The JLT Single Door Clamp squares and clamps 100+ stile-and-rail cabinet doors per shift, and it's built to do it every day for years. Every JLT Door Clamp is pre-squared at our Poughkeepsie, NY factory, so each door starts square and stays square. Heavy-duty jaws put pressure right on the corners, where a door needs it most. The JLT Trident Pin System makes changeovers between door sizes quick. With a 26″ × 62″ capacity, single-lever air activation and welded plate steel and tubing construction, it's the core door clamp for any cabinet shop.

Features

Precision Squaring

• Guaranteed square: every JLT Door Clamp comes pre-squared from our factory

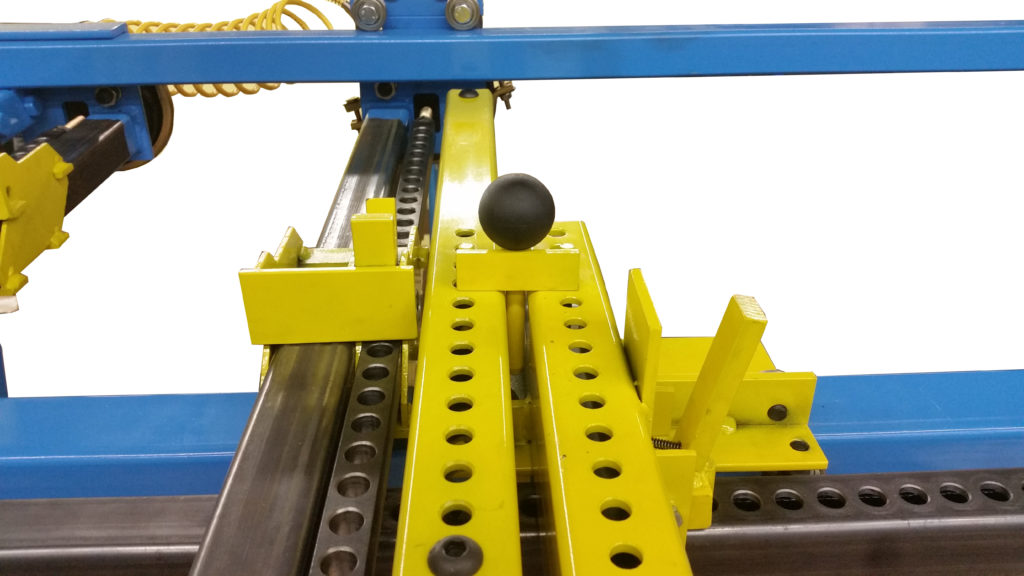

• Heavy-duty jaws bring pressure directly to the corners of your doors, exactly where you need it

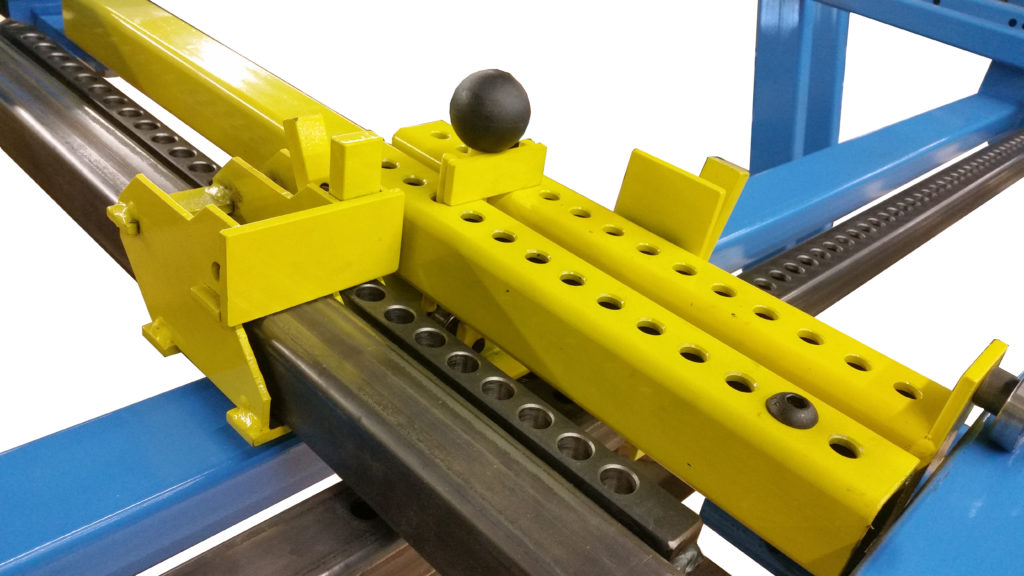

• JLT Trident Pin System for fast, easy changeovers between door sizes and precise clamping pressure

Capacity and Operation

• 26″ W × 62″ L maximum capacity
• Includes (2) vertical and (1) horizontal clamps
• Single lever valve air activation

Door Materials

• Clamps and squares solid wood stile-and-rail doors
• Clamps and squares MDF or HDF doors too, with an optional UHMW Border Kit to protect the door

Built to Last

• Welded plate steel and tubing construction built for years of clamping and squaring
• Complete 3-year warranty
• Made in the USA, Poughkeepsie, NY

Machine dimensions
Width: 86″ · Height: 51″ · Depth: 45″
