Features:

• (2) Sizes Available:
  • 5′ x 8′
  • 5′ x 12′

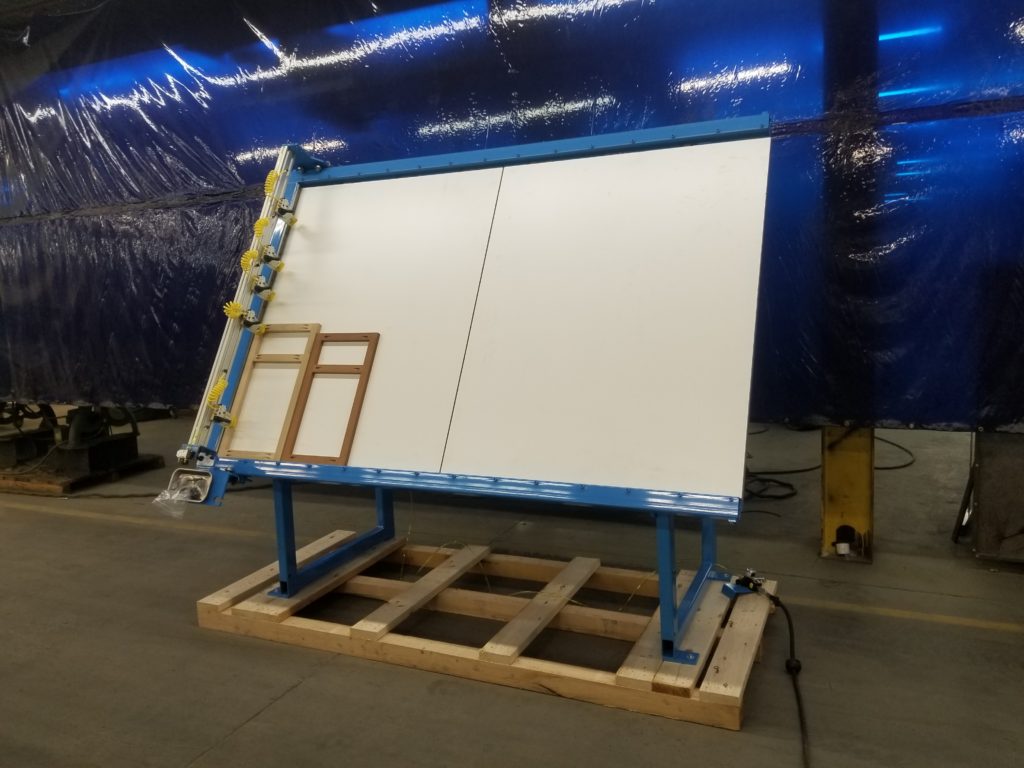

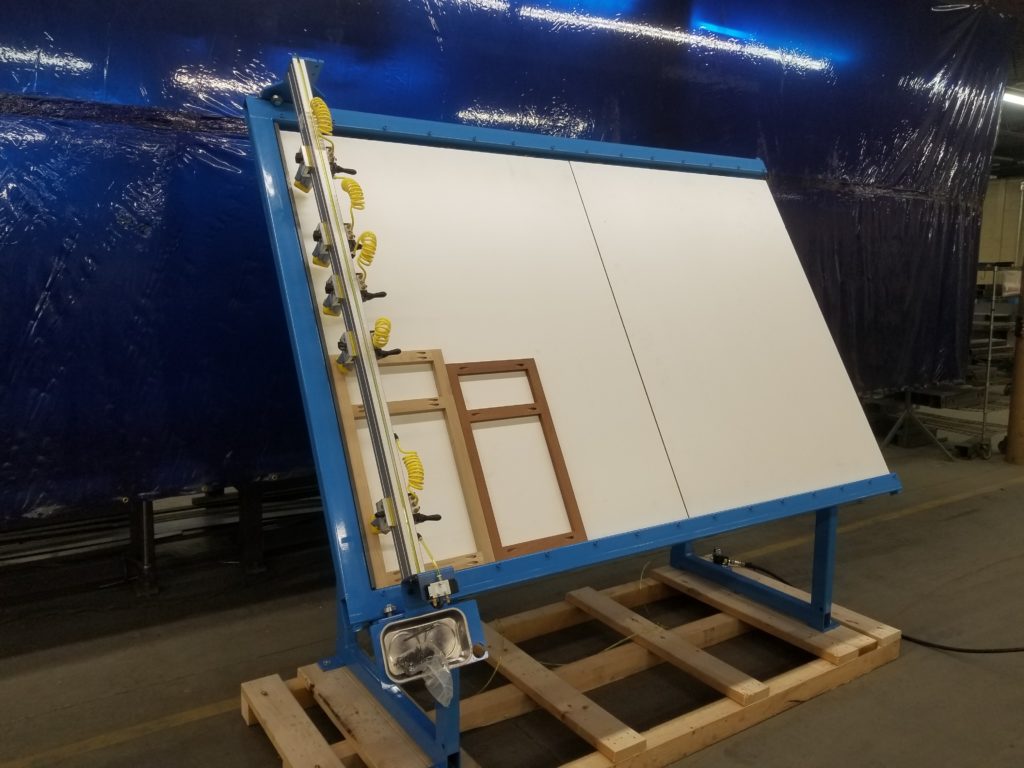

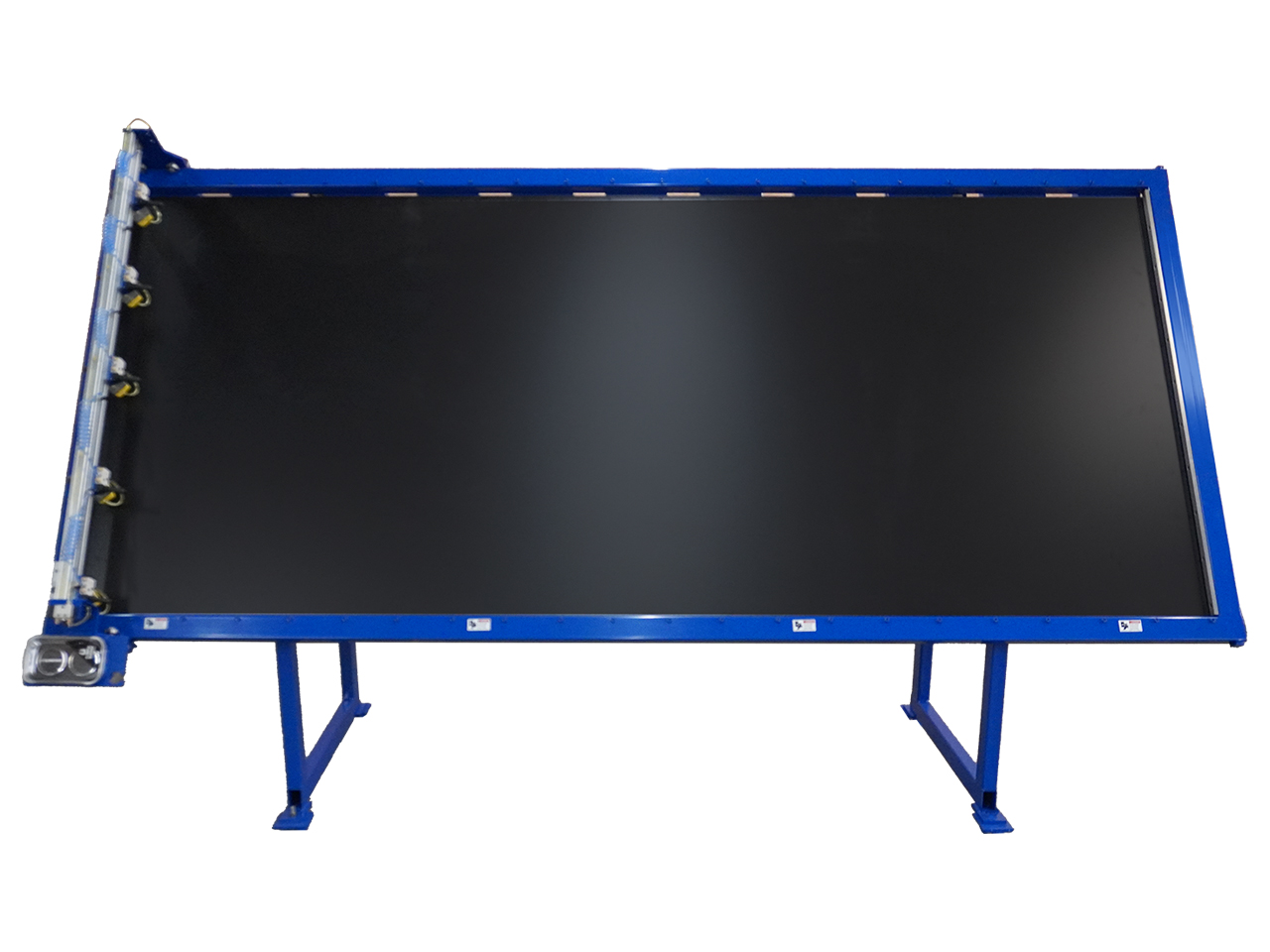

• The base model has a 5’ x 8’ layup surface; 25% more area than the typical 4’x8’ face frame table.
  • It has an open end to handle oversized face frame assemblies

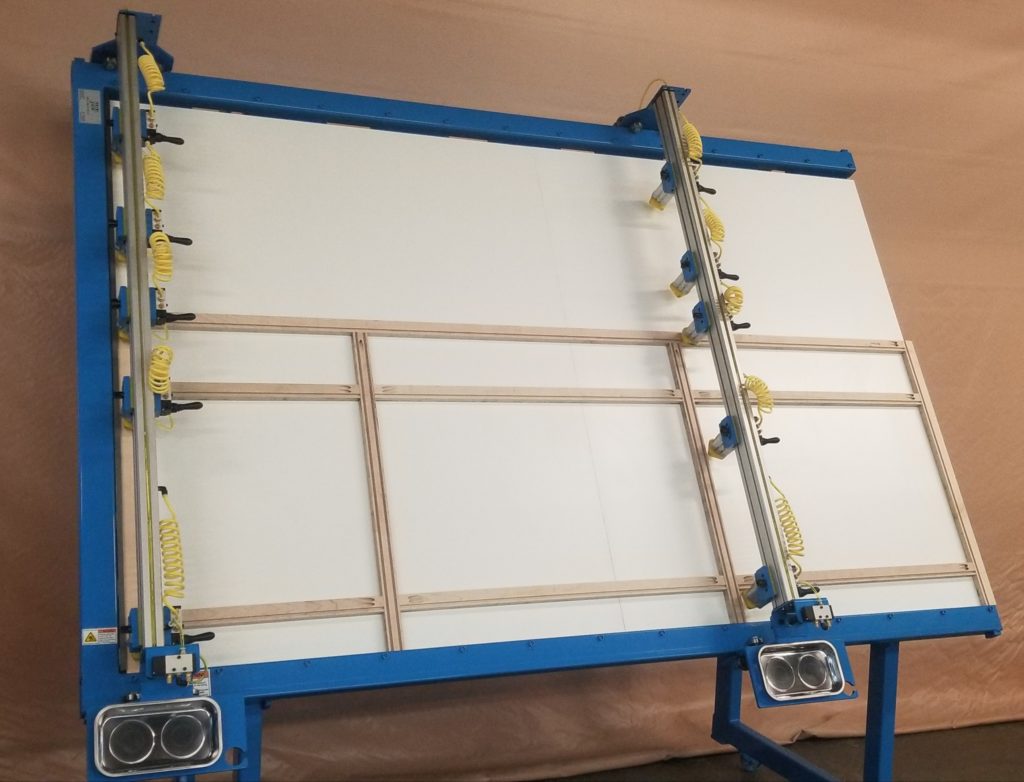

• The longer 5’ x 12’ model provides a solution for oversized face frame assemblies or can provide an efficient workstation for two operators
  • Extra clamping arms can be purchased separately to make layup easier
• Newly designed welded main frame and backing sheets prevent warping. Makes for the best face frame layup surface
• New Melamine wrapped backed surface will hold up to daily use, resist PLA glue adhesion, and provides a smooth layup surface. Easily replaced if damaged

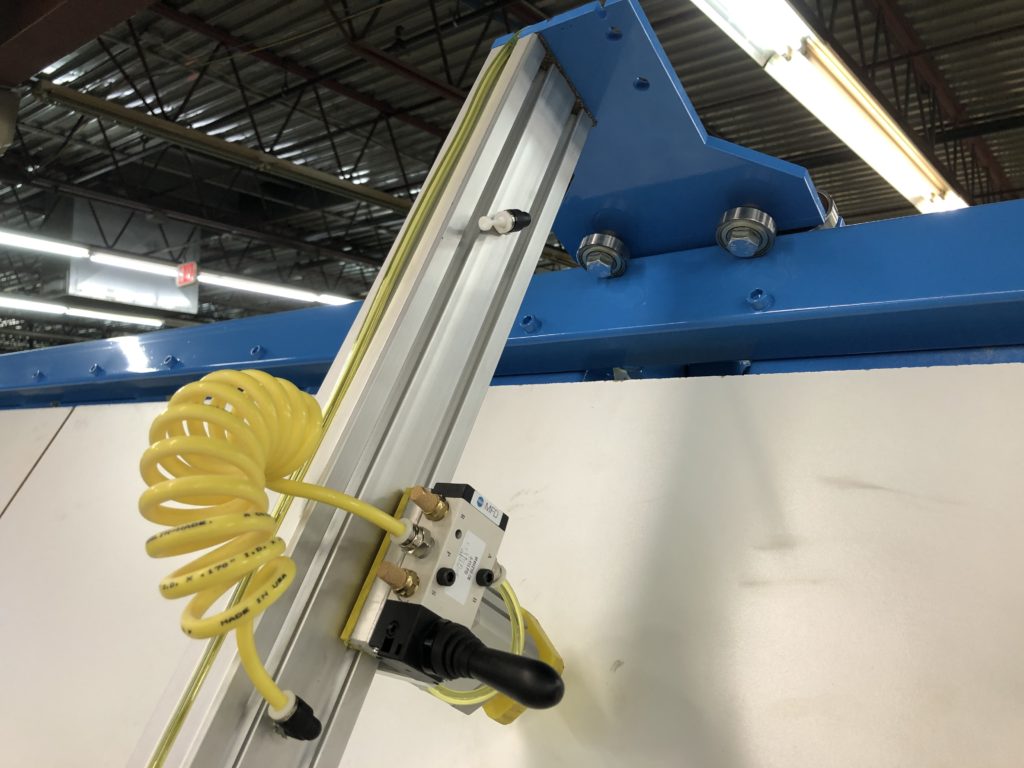

• Innovative Vertical Pressure Arm with ball bearing roller assemblies provide smooth movement on the clamping arm

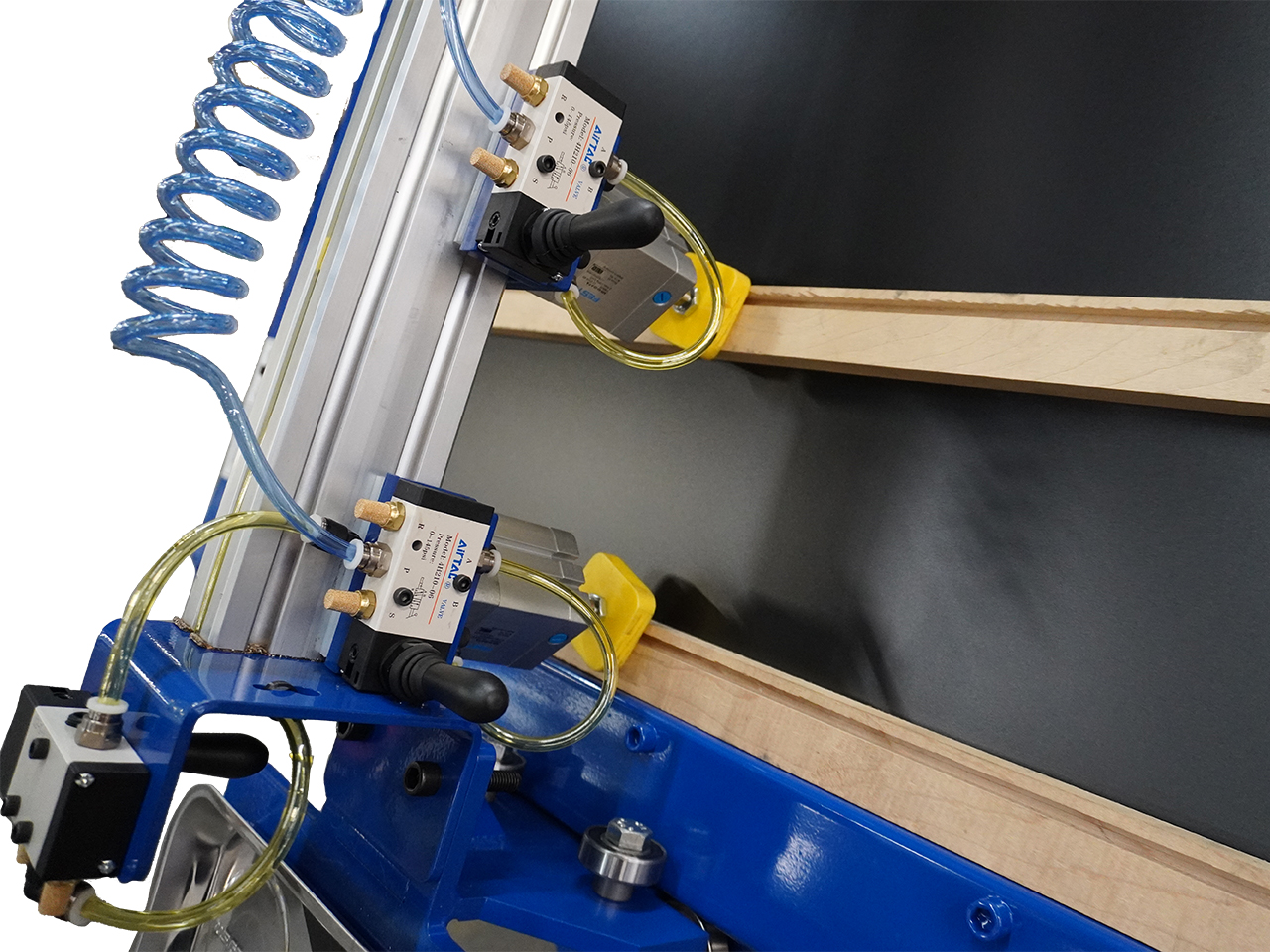

  • Master Switch, a single pneumatic lever action allows the operator to toggle all (5) clamping pistons from one control. Individual levers are still reserved if necessary

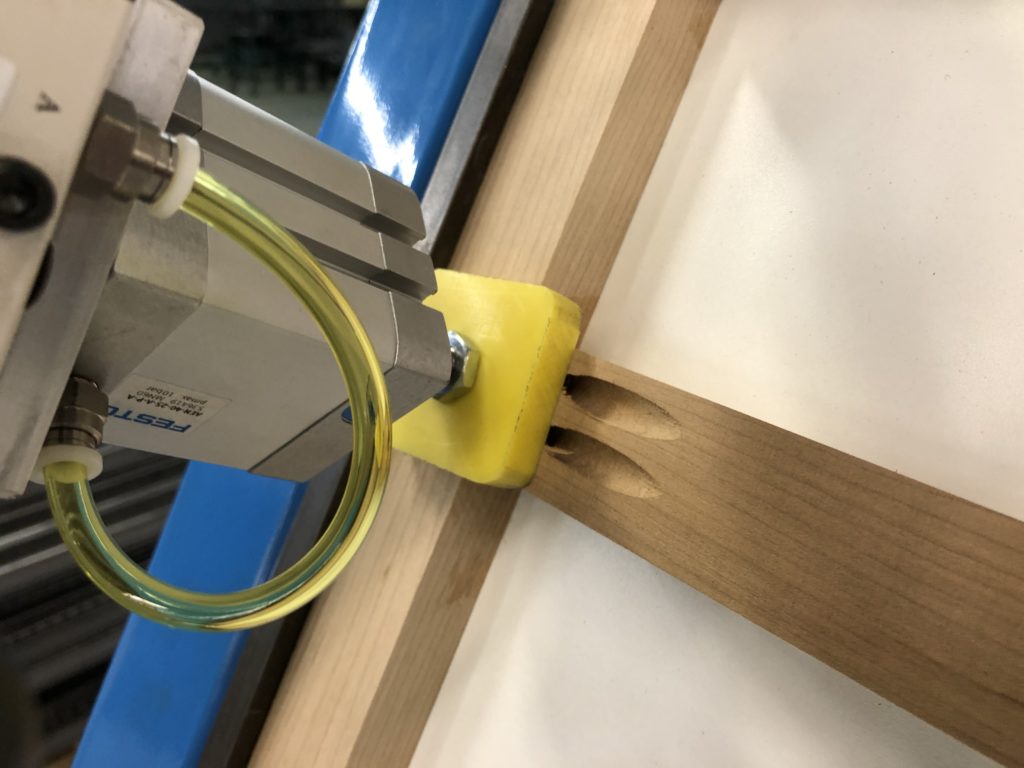

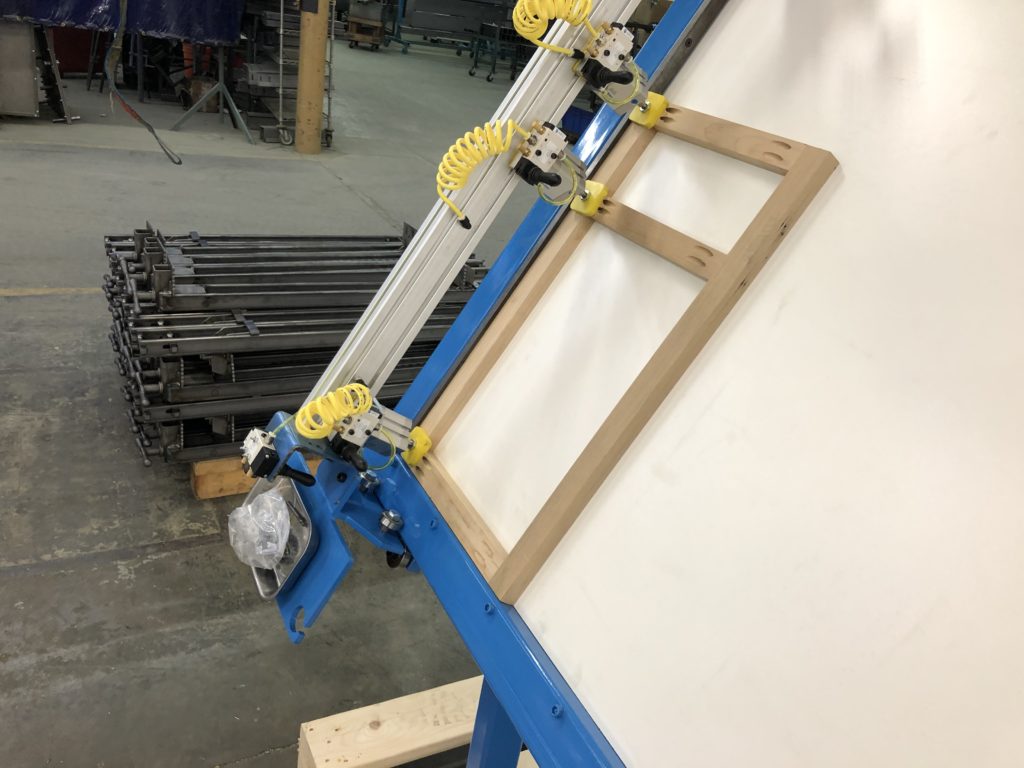

  • The clamping pistons (air cylinders) are completely adjustable. They easily slide into position and lock in place with a twist handle

Machine Footprint: 148″L x 70″H x 48″W
