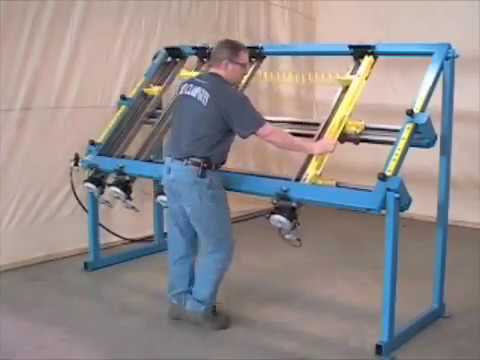

#717C-DDC – Double Door Clamp
Produce up to 225+ Cabinet Doors per day
Features:
- Large Capacity and Versatile for a Wide Variety of Stile and Rail Cabinet Door Sizes.
- 38″ x 97″ Overall Capacity
- Includes (4) Vertical Clamps and (1) Horizontal Clamp (30 Sq. In Cylinder on the Horizontal Clamp)
- (2) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors
- Single Lever Valve Air Activation

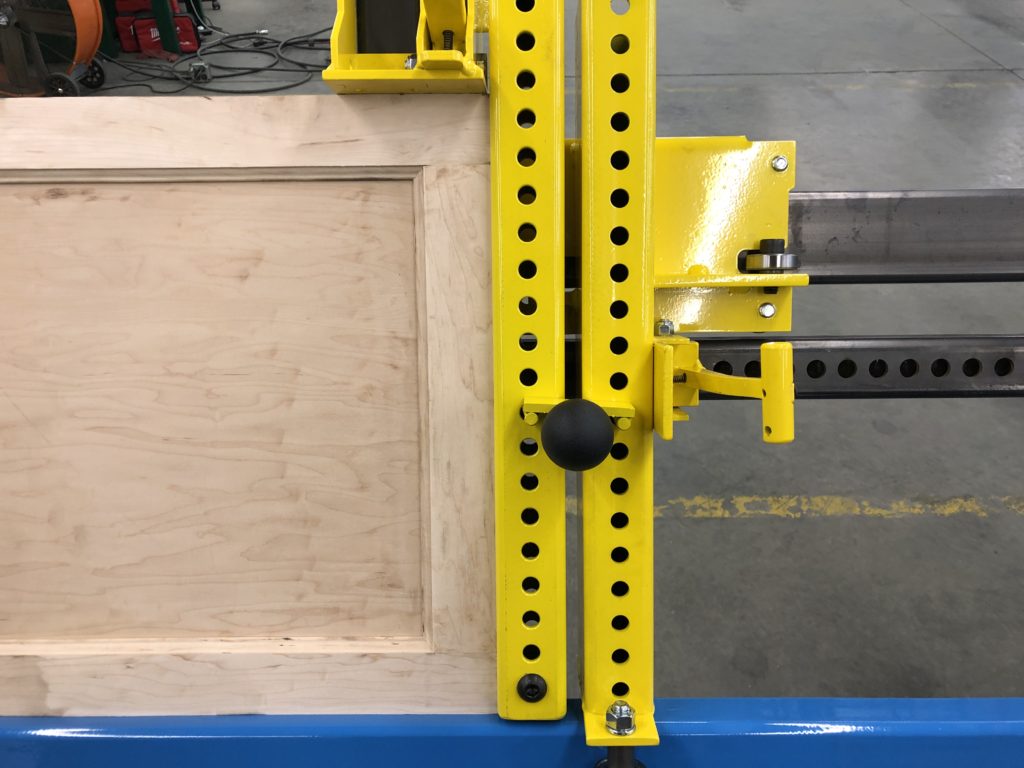

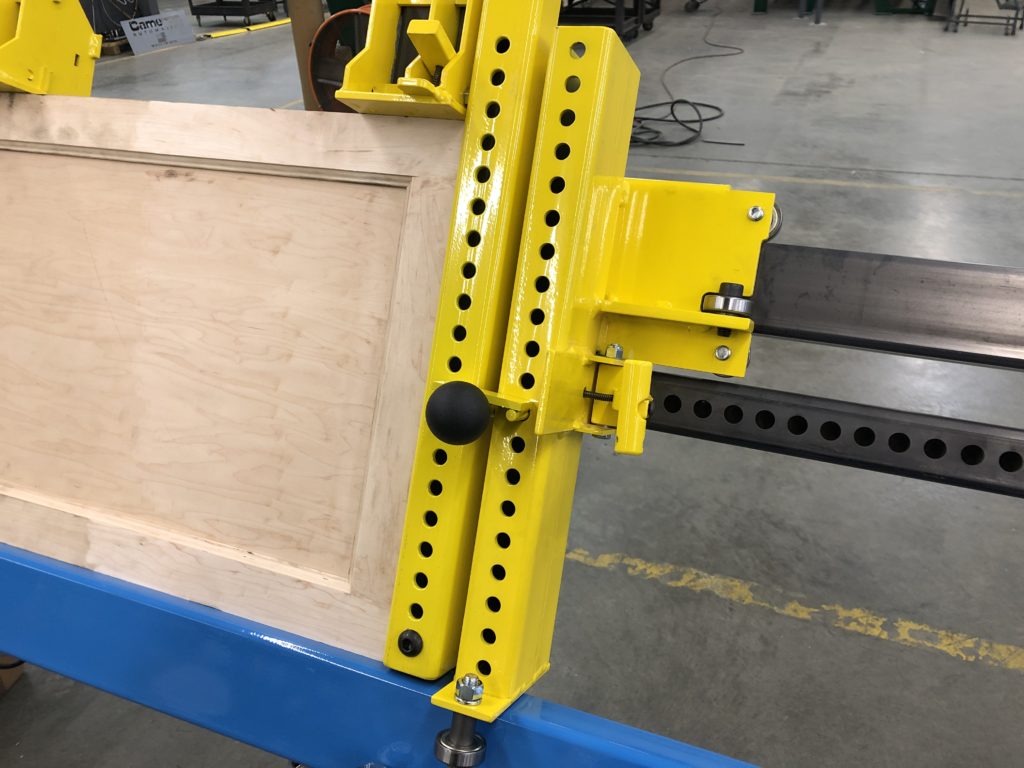

- Faster Changeover with the Cross Clamps Adjusting in a Single Motion

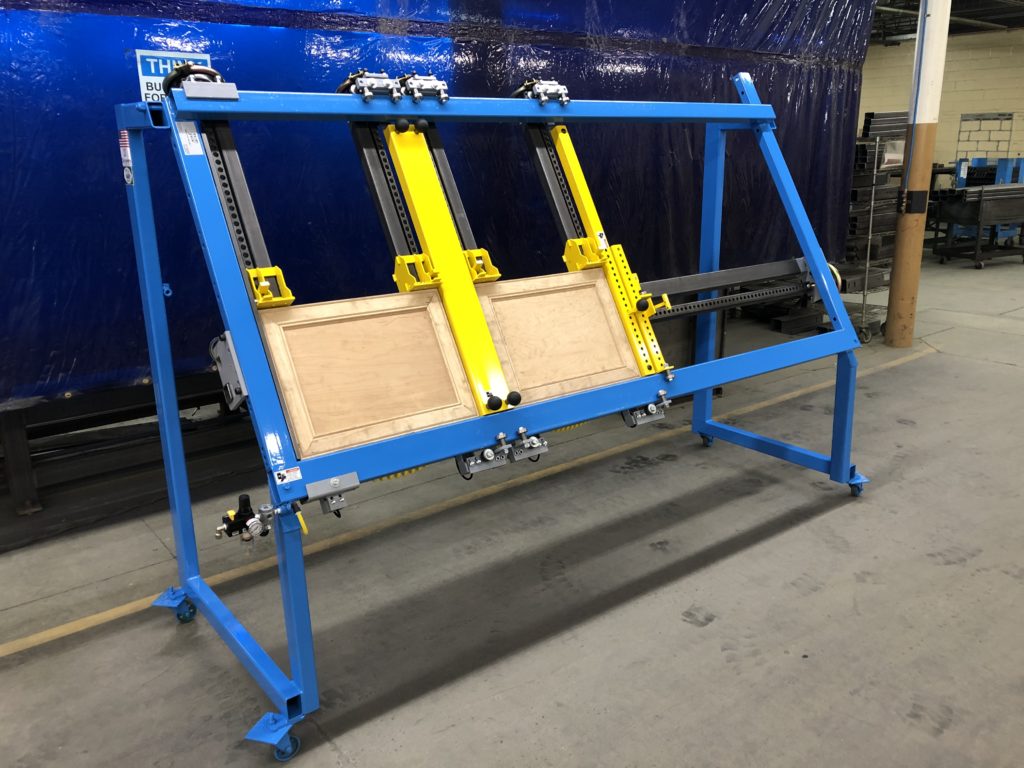

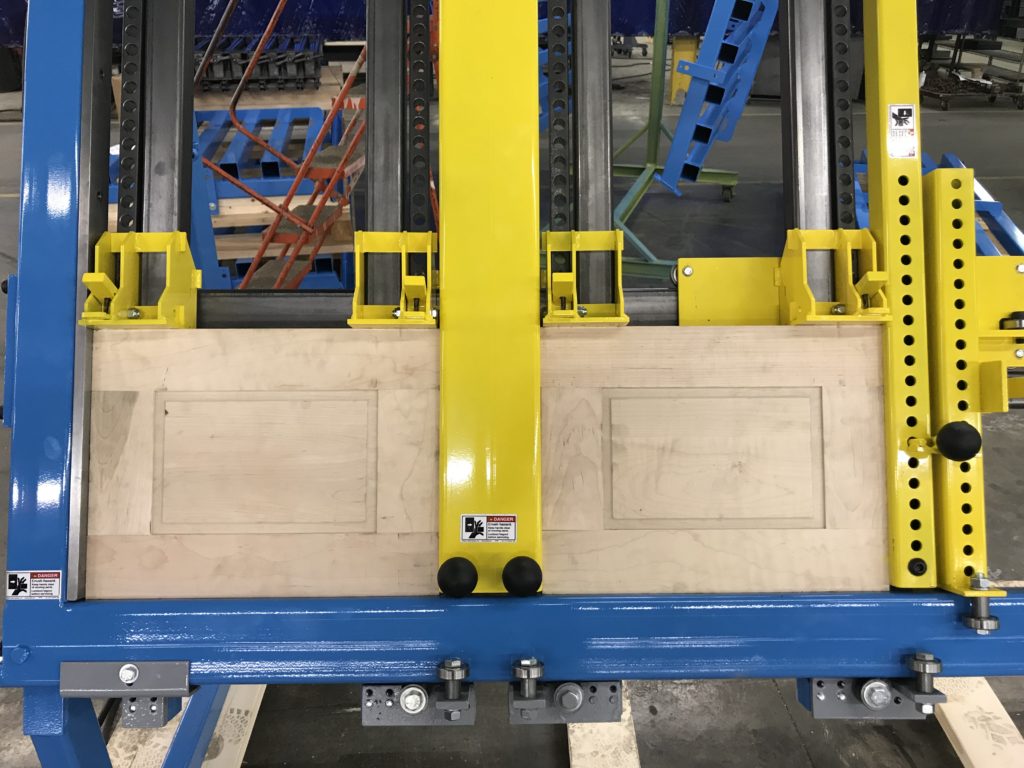

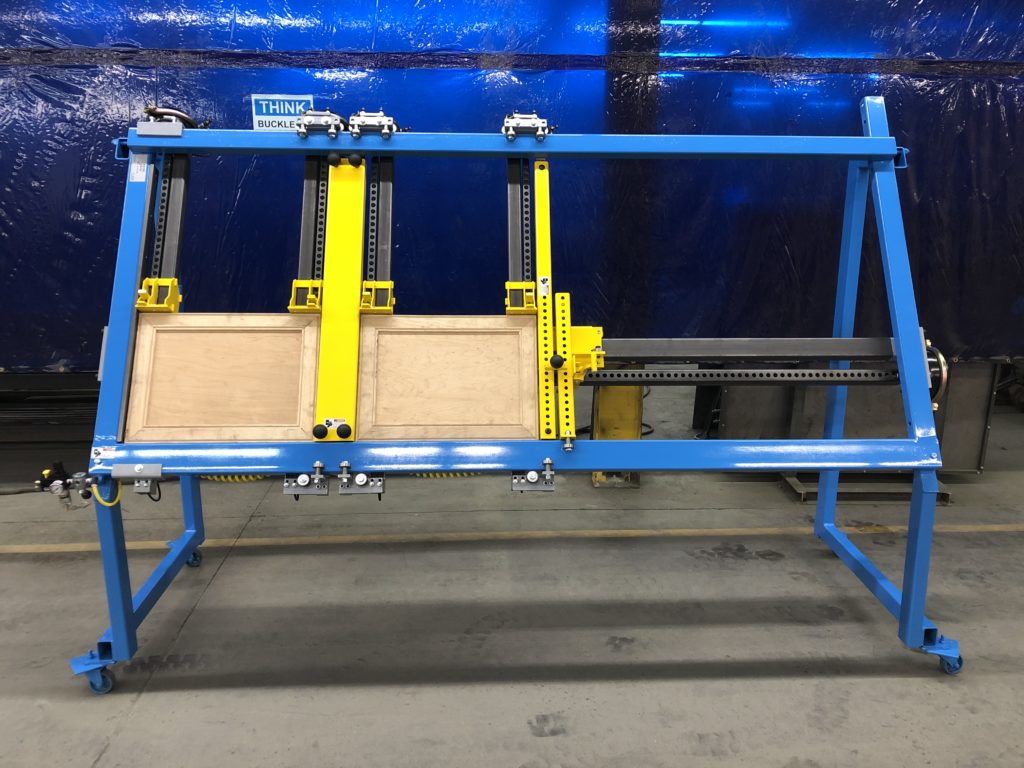

- Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.
- Remove the center bar to utilize the maximum capacity of the clamp for larger interior doors
- 100% Heavy Duty Steel Construction.
- Convenient 60 Degree Vertical Working Angle.
Enhanced Features from the Tried & True #79K Design:

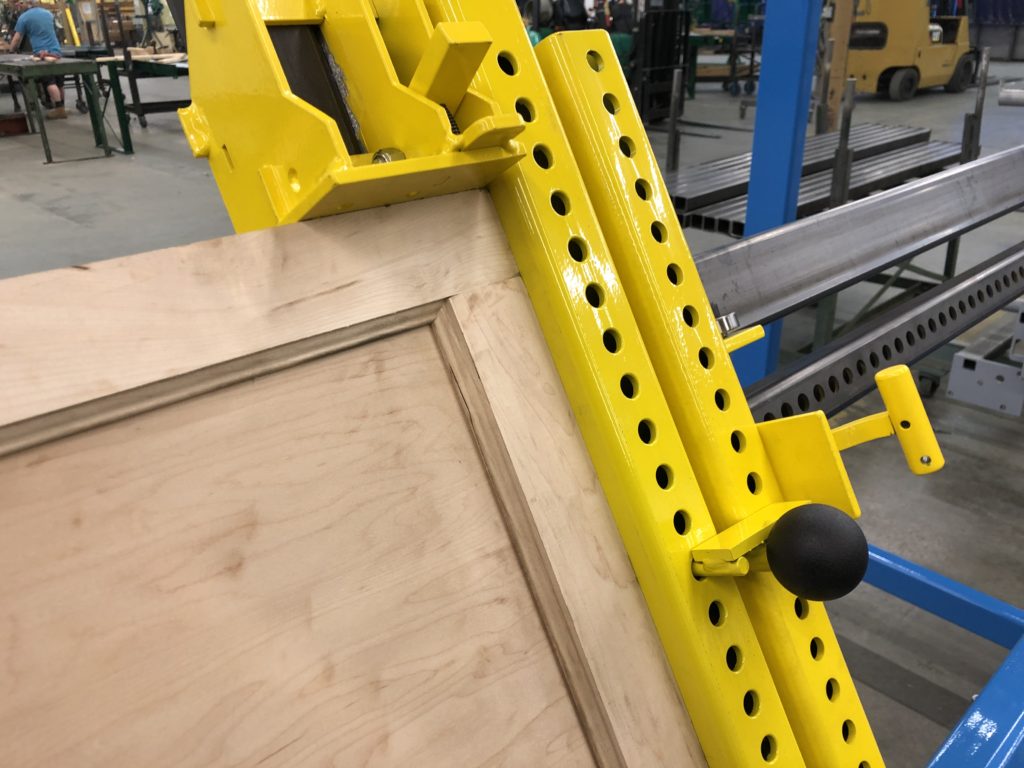

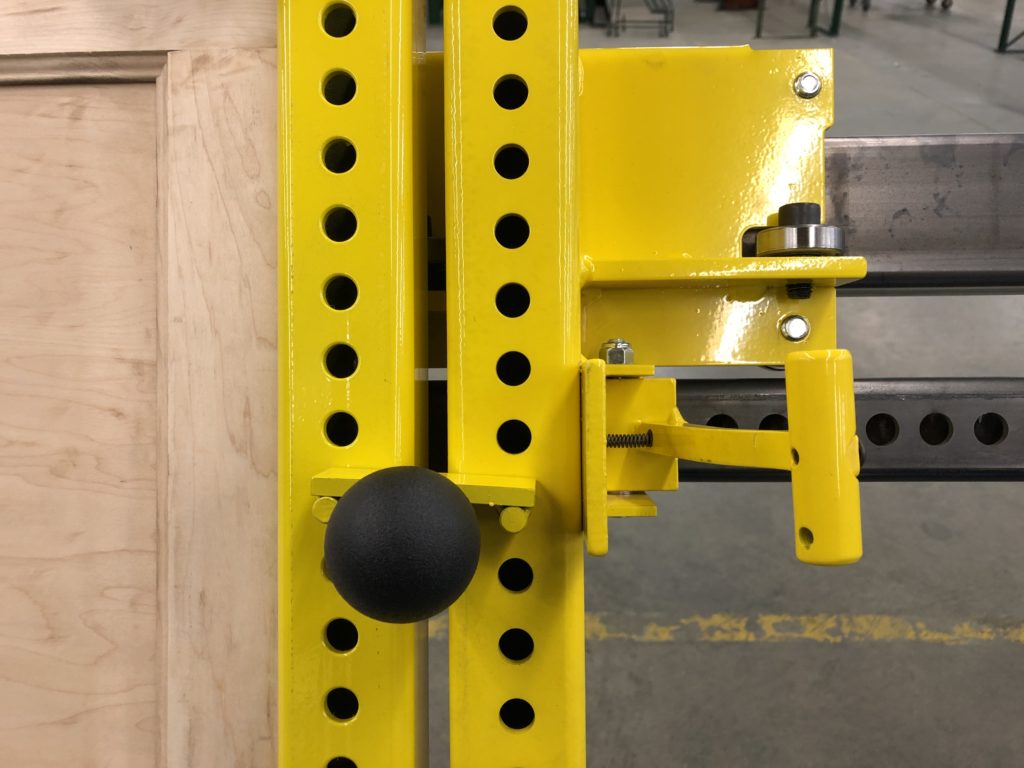

- Intuitive Pin System allows even Quicker and Easier setup than ever before.
- Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.

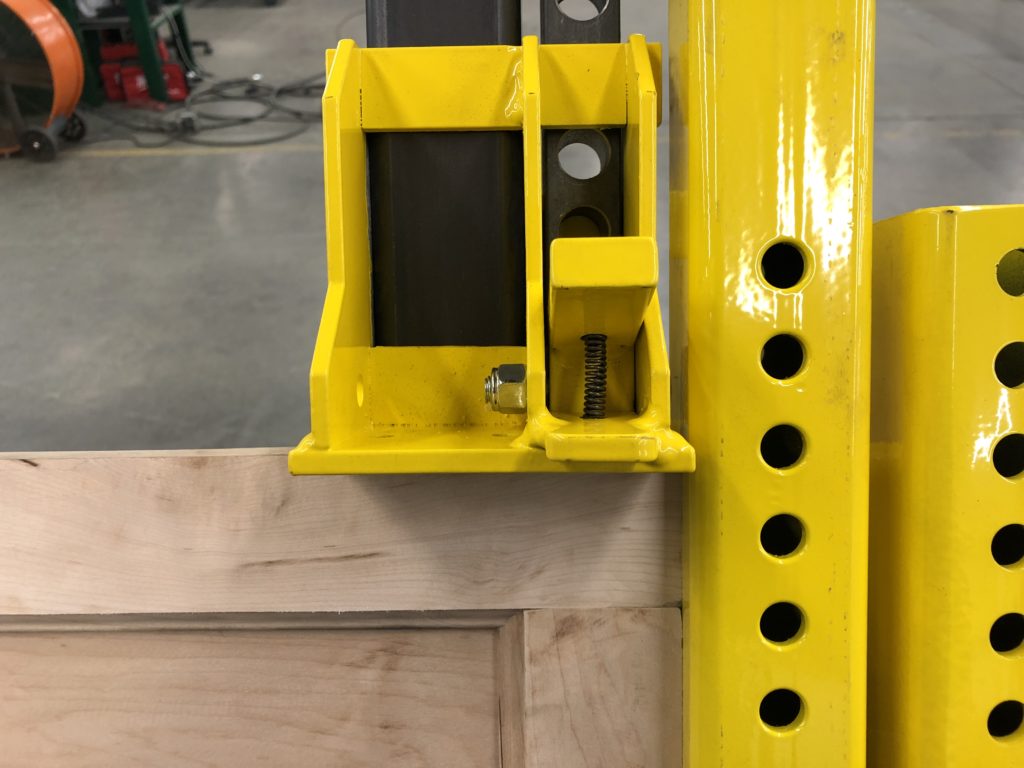

- Redesigned Jaws with Thumb Plate for Increased Efficiency.
- Thicker Push Bars Decrease Daily Wear and Tear.
Machine Footprint: 116″L x 70″H x 44″W
