The Ulti-Vision Wide Board Scanner for ripsaws from Ultimizers Inc. uses smart camera technologies to find defects such as wane and knots. For plank sizes up to 2”x24” (2”x18” standard) and with feed speeds up to 600 fpm.

·         Fixed blade ripsaws

·         Moveable blade rip saws

·         Double arbor ripsaws

The Ulti-Vision™ Scanner from Ultimizers Inc. uses smart camera technologies to find defects such as wane and knots.

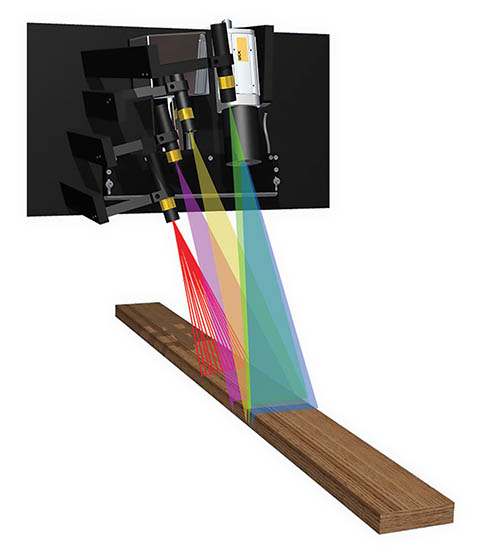

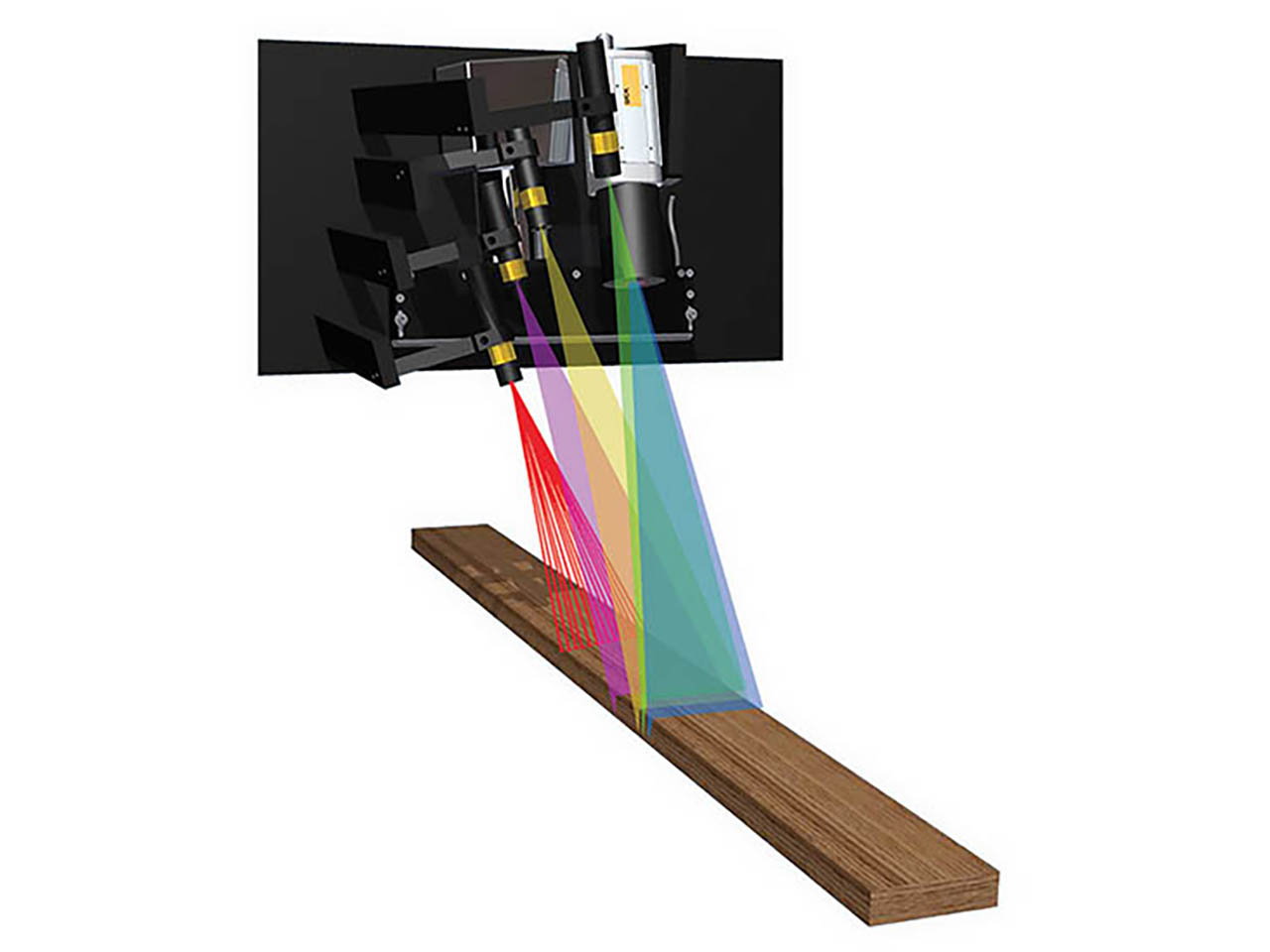

Multi-Sensing Technologies include:

·         Scatter Lasers

·         Dot Scatter Lasers

·         3D Profiling

as well as color imaging on top only, or top and bottom of the wood.

Ultimizers' proven Ulti-Vision™  software produces rip solutions considering the cutoff solutions at the same time.

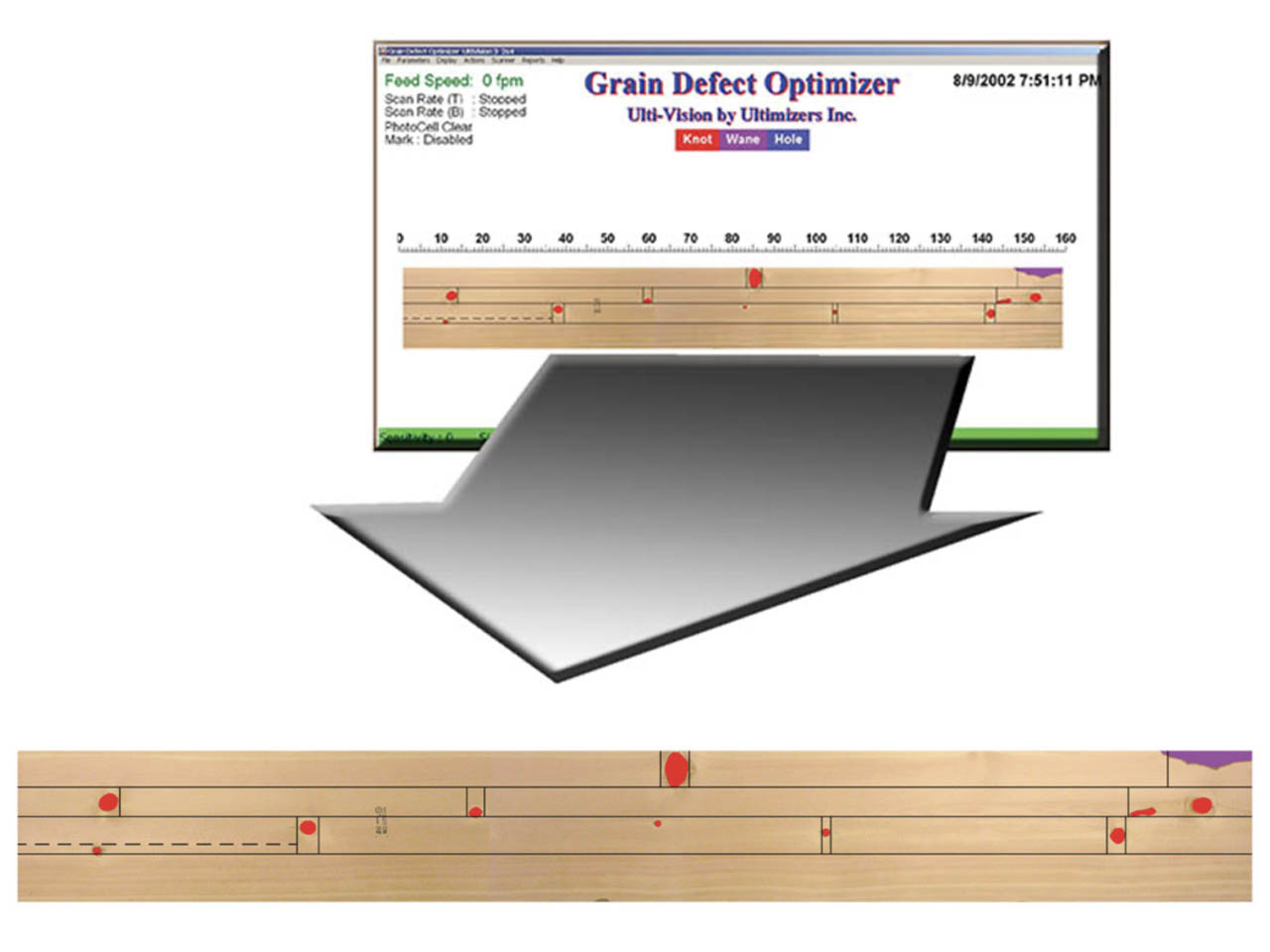

A color image showing actual defects and real-time solutions allows operators to see what sizes are being cut and that yields are as high as possible. Operator defect modifications can be made in some cases.

ULTI-VISION LINEAR SCANNER

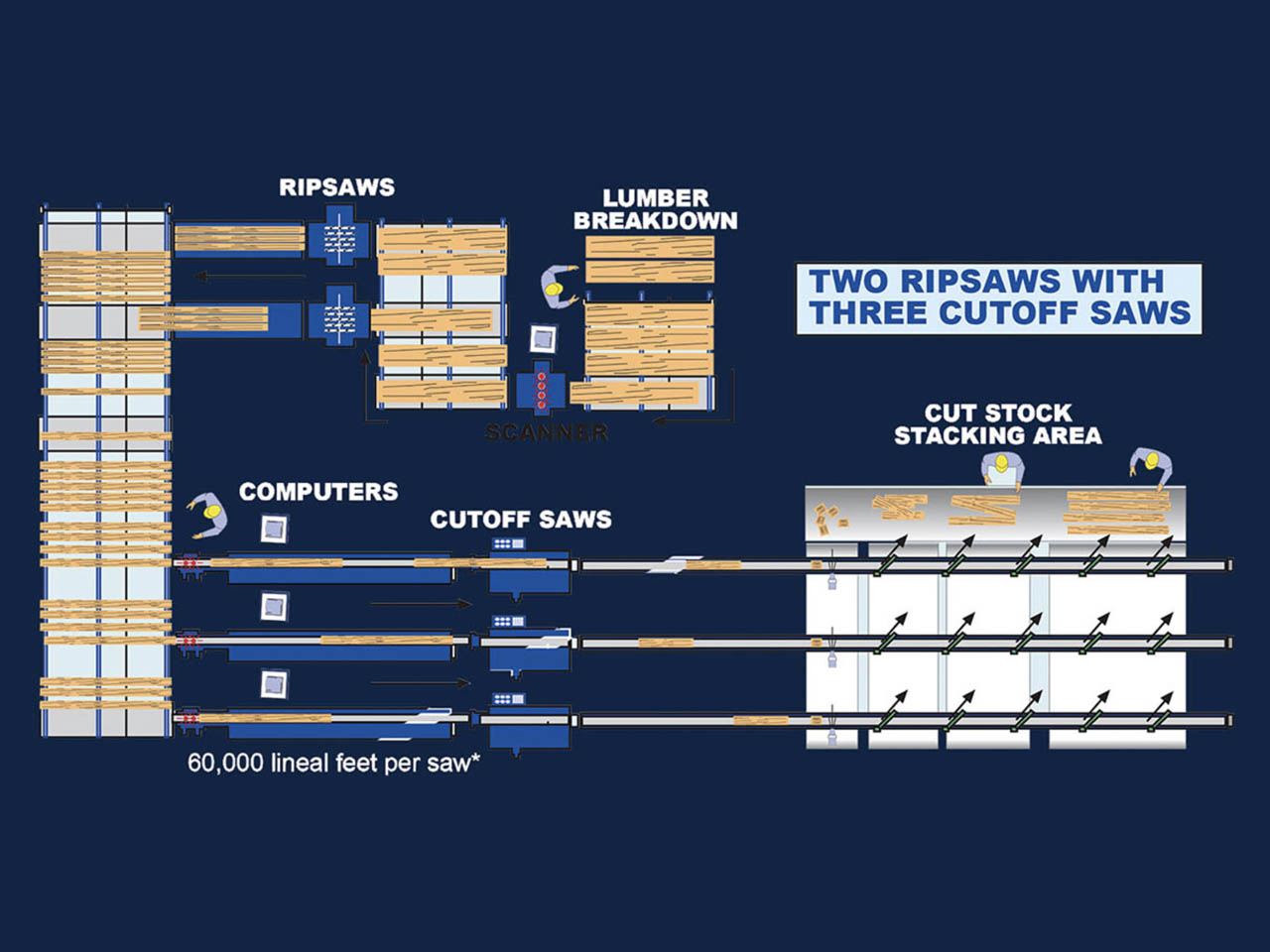

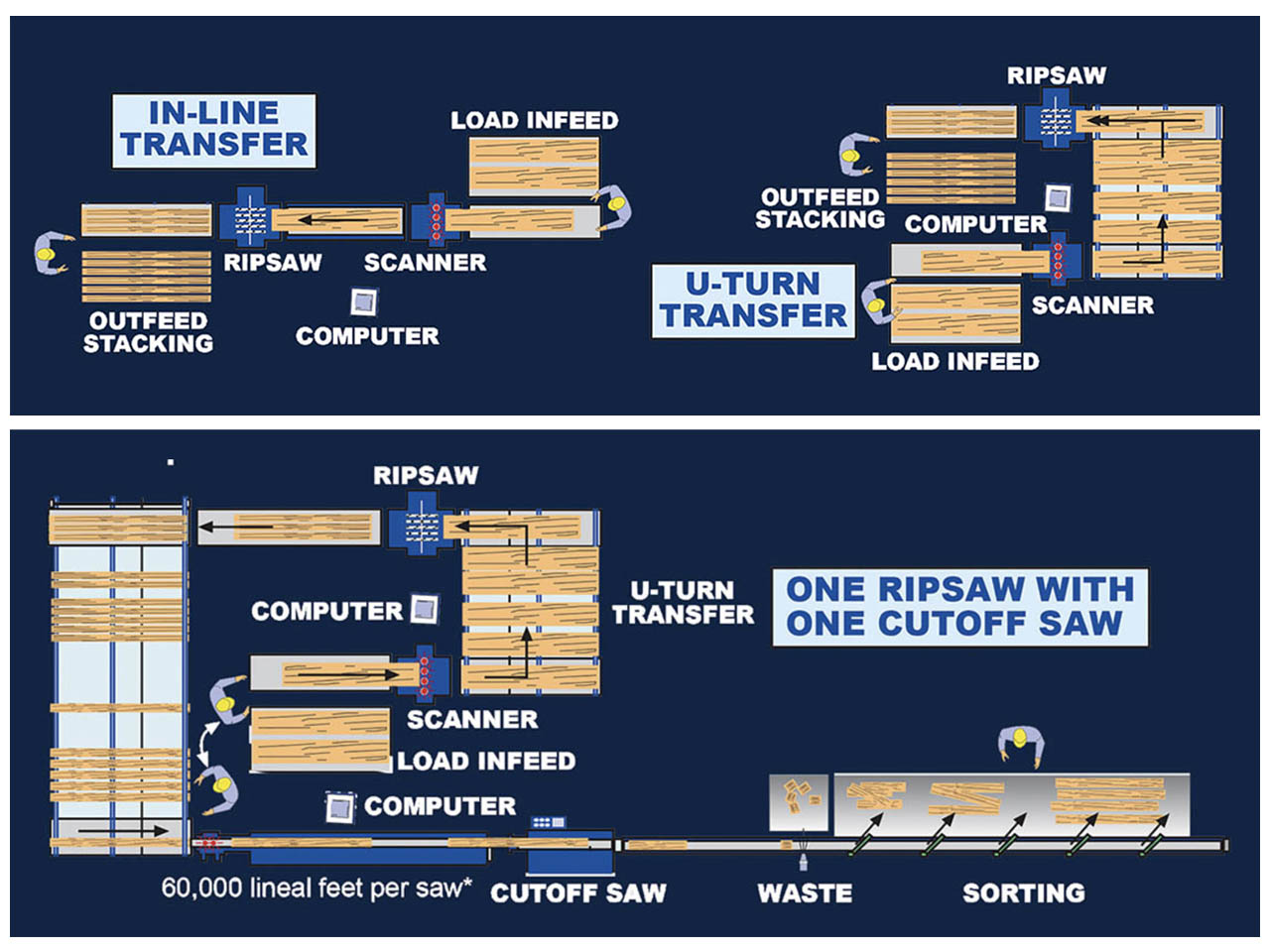

A typical ripsaw system includes an infeed, an Ulti-Vision™ scanner, a transfer, a ripsaw and an outfeed. An integrated system can include cutoff saws directly following the ripsaws
