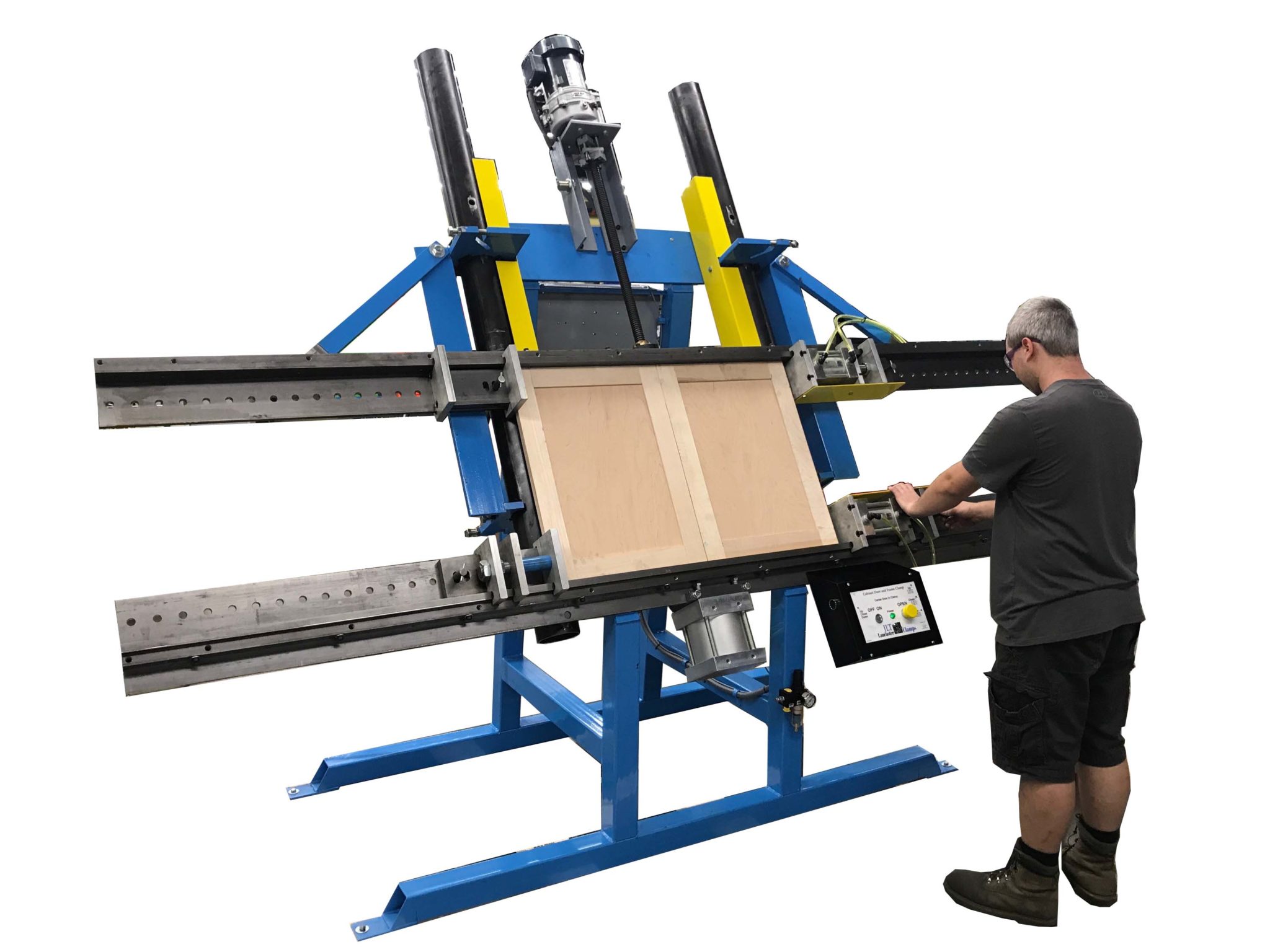

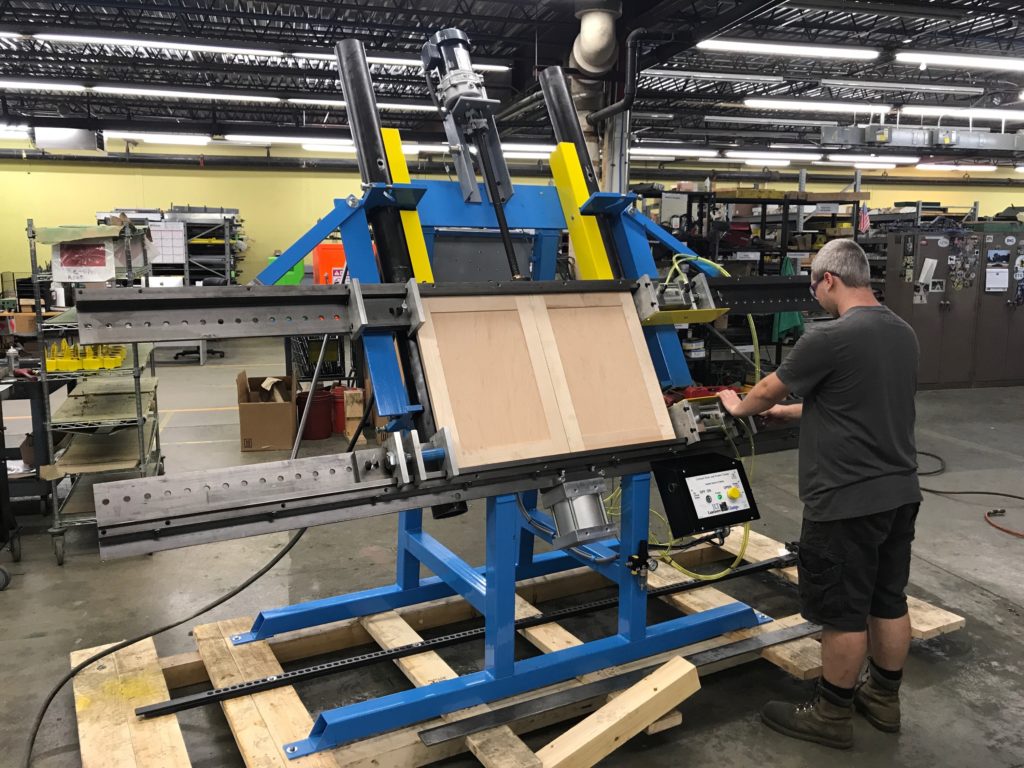

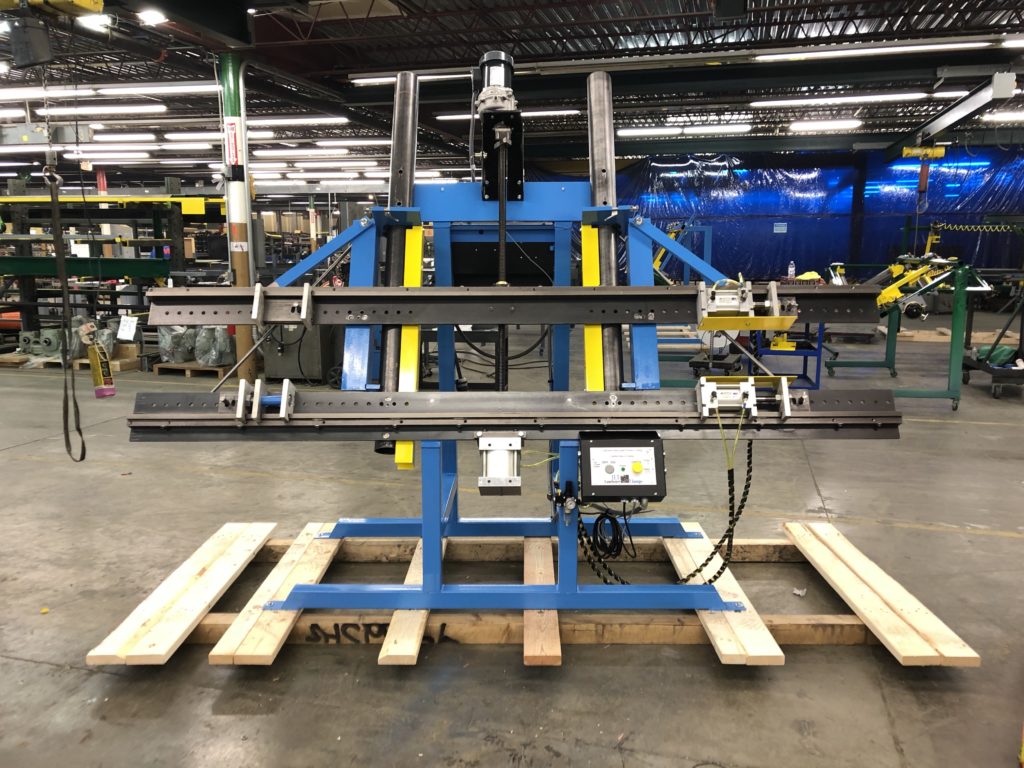

The JLT Pneumatic Cabinet Door & Frame Clamp is the heaviest clamp we build, and the most versatile. It successfully clamps and squares mortise-and-tenon or dowelled face frames, single or multiple cabinet doors, furniture components, bedframes and more, up to 48″ × 94″. A two-way clamping system applies adjustable pressure through the horizontal and vertical sequences, and a two-hand anti-tie-down safety box lets the operator run it hands free. A 1/2 HP motor drives the lead screw that positions the upper jaws, so changeovers between part sizes take one control, not a wrench. The frame is heavy-duty welded steel, it's built in Poughkeepsie, NY, and it ships pre-assembled.

Features

What It Clamps

• Mortise-and-tenon or dowelled face frames
• Single or multiple cabinet doors
• Furniture components, bedframes and more
• 48″ V × 94″ H maximum capacity

Clamping System

• Two-way clamping system with adjustable pressure on the horizontal and vertical sequences

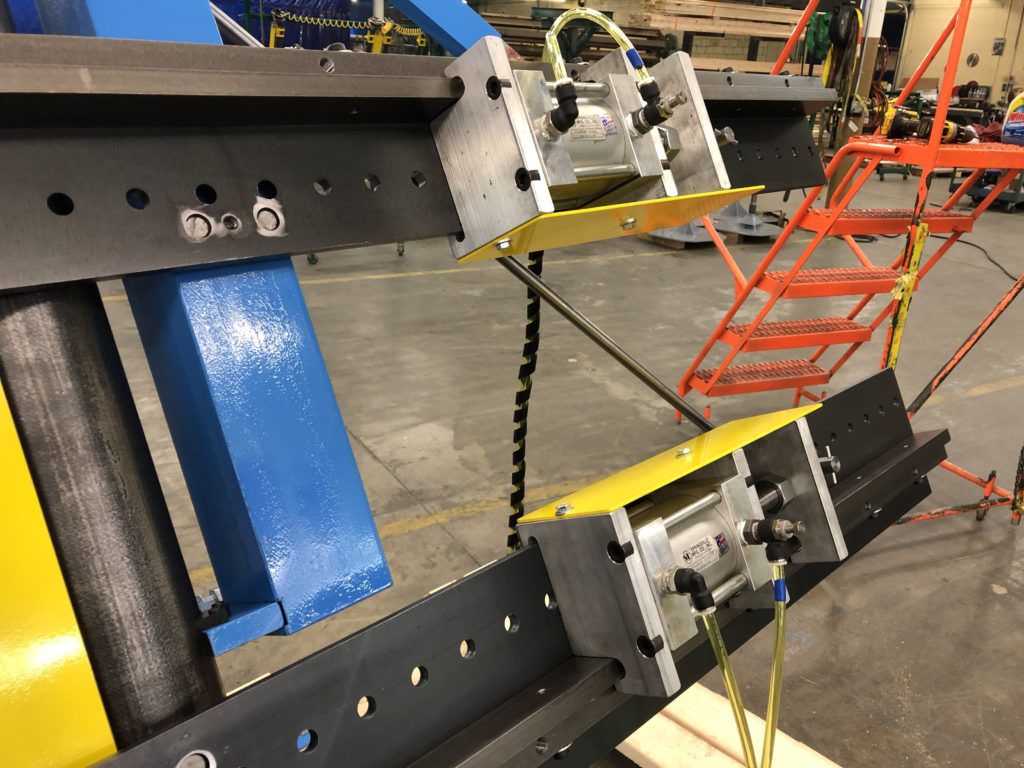

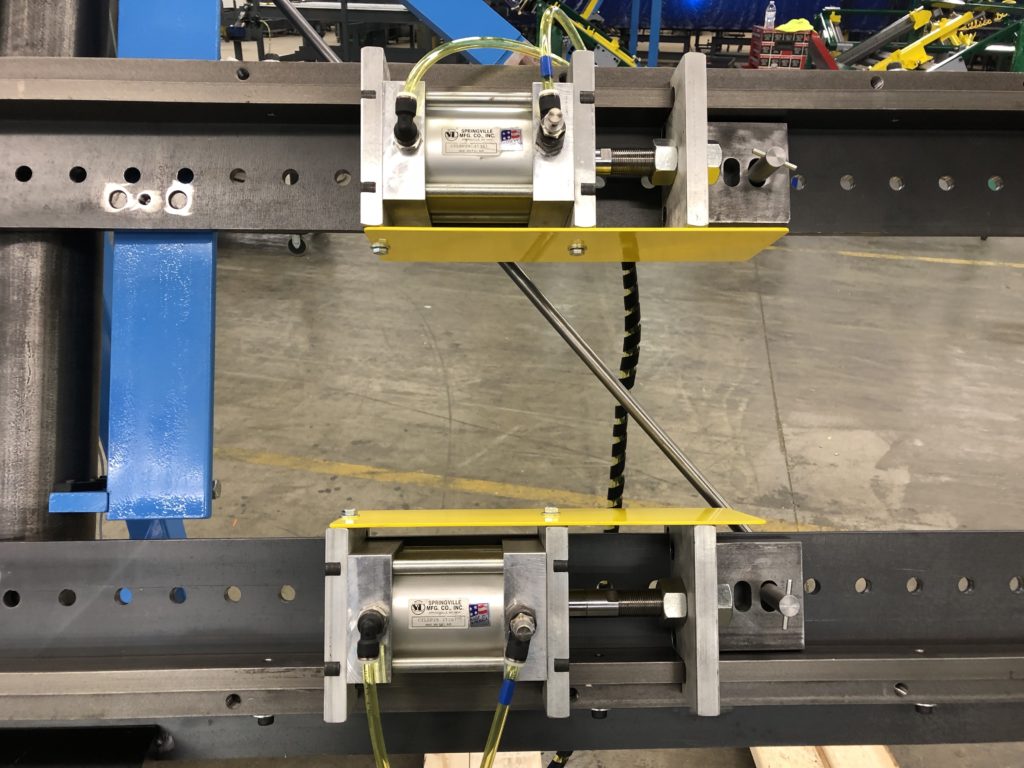

• Large piston-style air cylinders with flow controls provide the clamping force (requires 3–4 SCFM at 100 PSI)
• Guaranteed square: every JLT Door Clamp comes pre-squared from our factory
• Upright 60-degree vertical working angle

Operation and Safety

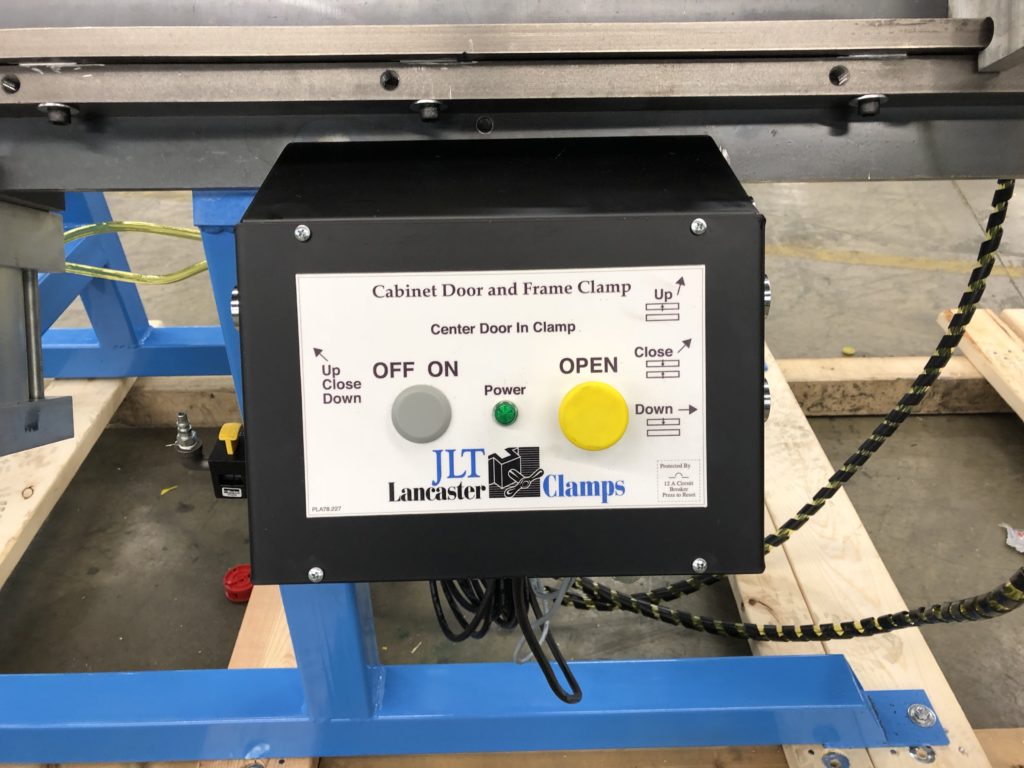

• Two-hand anti-tie-down safety box for hands-free actuation of the clamping system

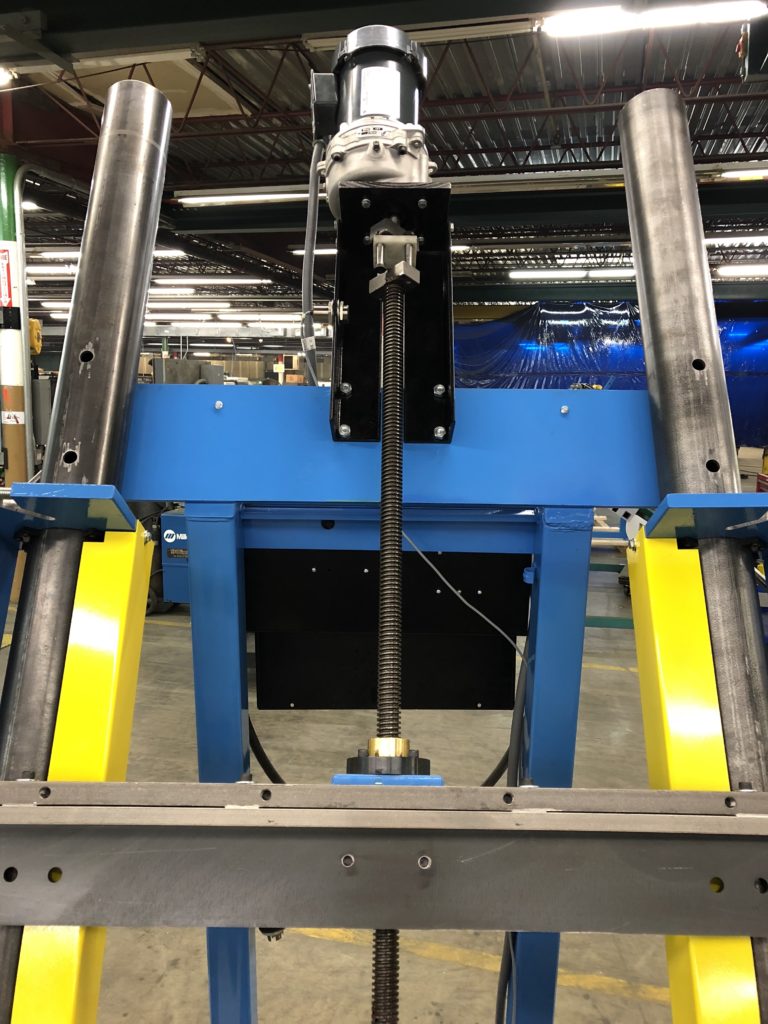

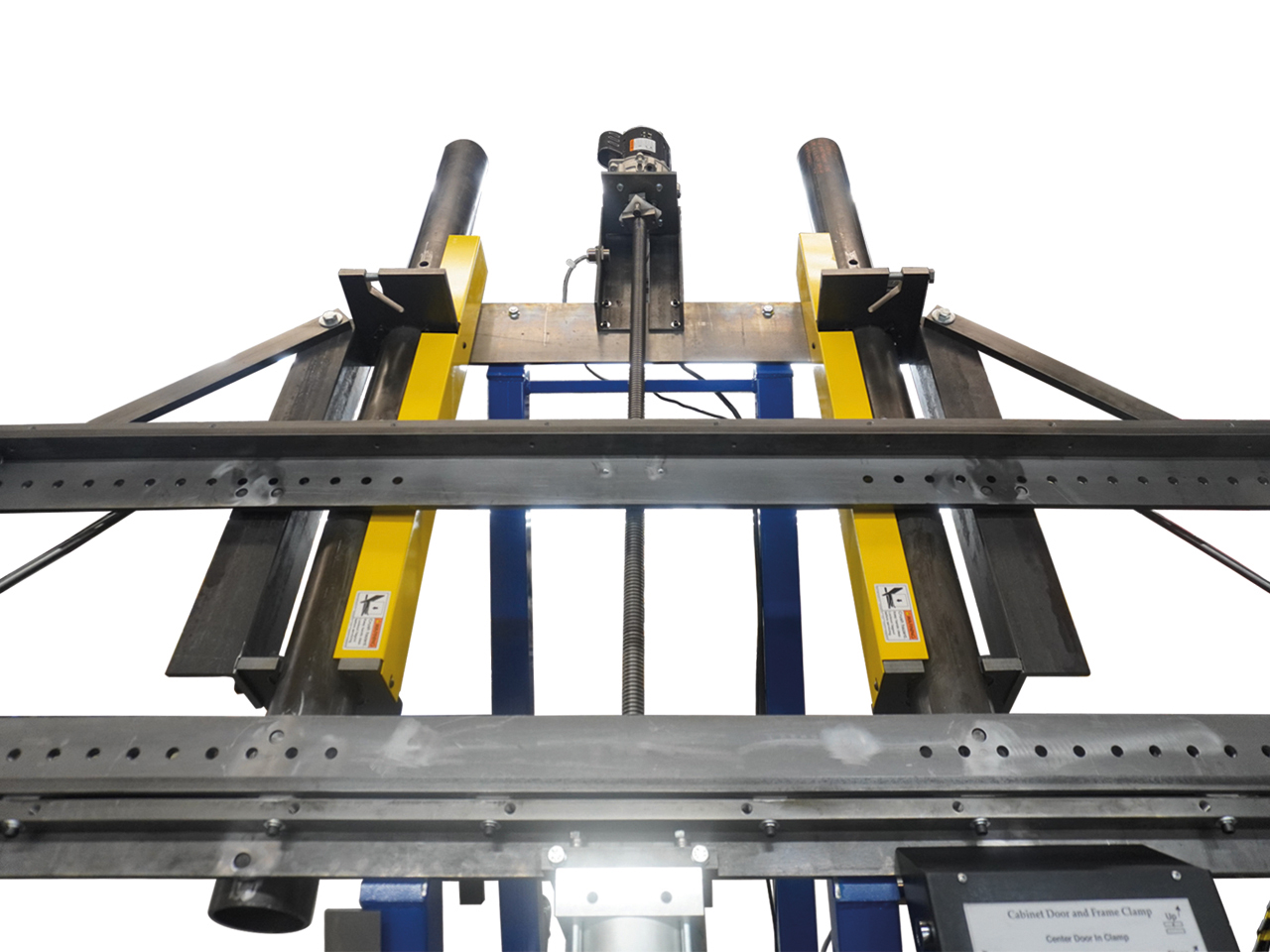

• 1/2 HP electric motor drives the main lead screw that controls vertical adjustment of the upper jaws
• Available in 120, 220 and 440VAC/60Hz

Construction

• Heavy-duty 100% welded steel frame

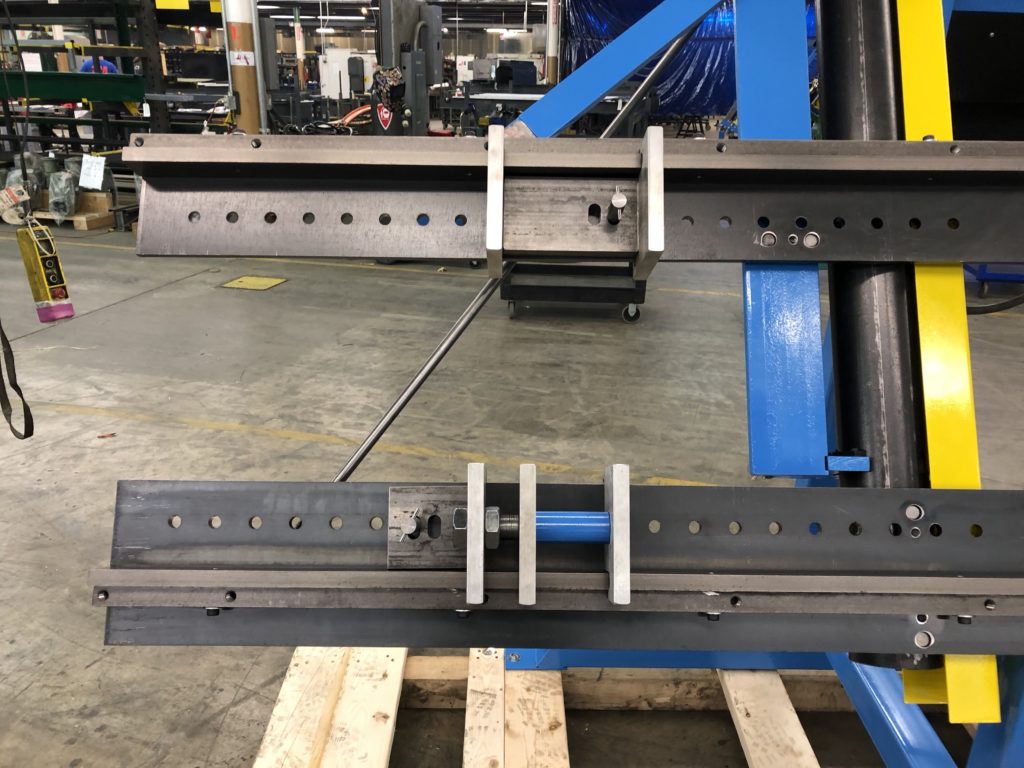

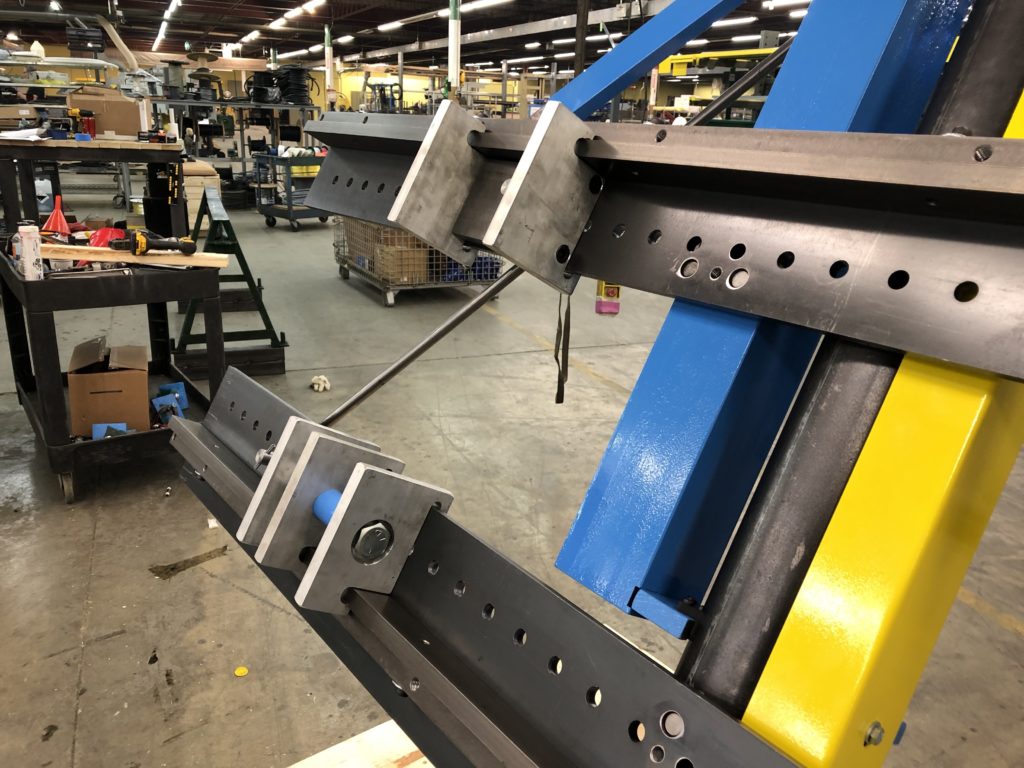

• Replaceable delrin guide blocks for smooth operation of the 5″ wide steel vertical jaw plates
• Ships pre-assembled
• Made in the USA, Poughkeepsie, NY

Machine dimensions
Width: 120″ · Height: 91″ · Depth: 50″
